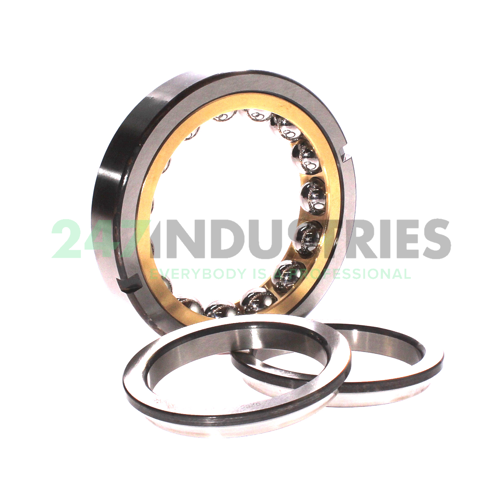

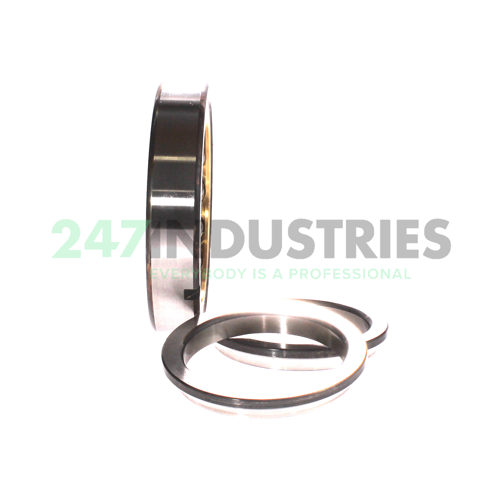

QJ214-XL-N2-MPA-F59-C4 FAG

All dimensions

1. Inner (d) MM 70,00
2. Outer (D) MM 125,00
3. Width (B) MM 24,00
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.9213
6. Width (B) Inch 0.9449
7. Width (b) mm 24,00

Suffix description

1. XL X-Life
2. N2 Two Locating Slots (Notches) 180° Apart In One Outer Ring Side Face Or Housing Washer
3. MPA Window-Type Machined Brass Cage; Guidance By The Outer Ring (Housing)
4. F59 Replaced By
5. H68 Bearing And Bearing Parts For Voith Getriebe KG, Heidenheim; For Special Cage Design, Width Tolerance, Radial Runout And Bearing Clearance See Specifications
6. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 3 pcs
2. Brand FAG
3. Item number QJ214-XL-N2-MPA-F59-C4 FAG
4. Also known as 0384022700040
   QJ214N2MA/C4B20

5. EAN 4012801267434
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 1.3

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification N2 - 2 Locking Groove in Outer Ring
4. Radial Internal Play C4 Internal Play (Higher than C3)
5. Precision A2 - Reduced Width Tolerance
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "114000.0000"
2. Limiting speed (n G) "10700.0000"
3. Reference speed (n ϑr) "4700.0000"

Downloads and links

1. X-life brochure X-life brochure
