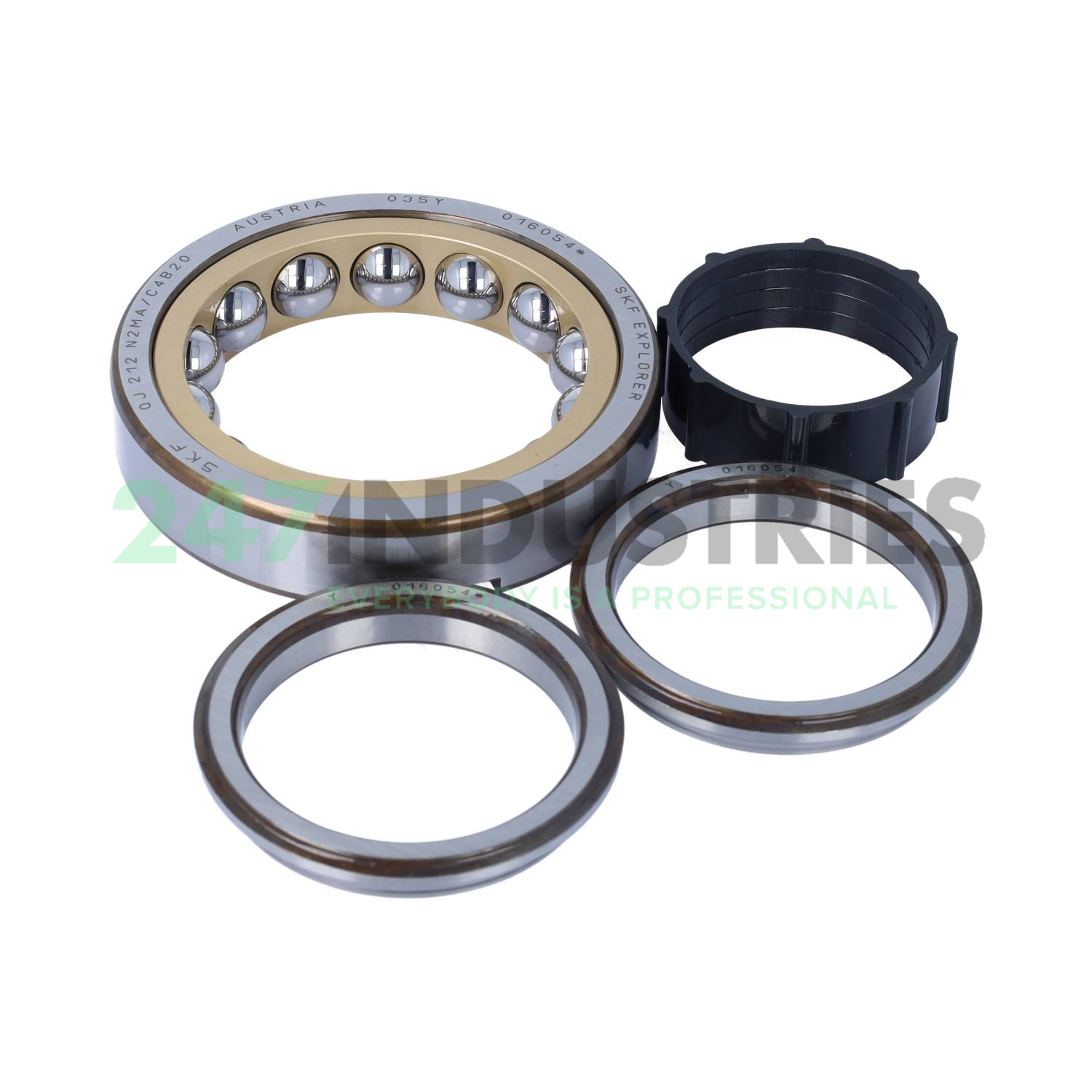

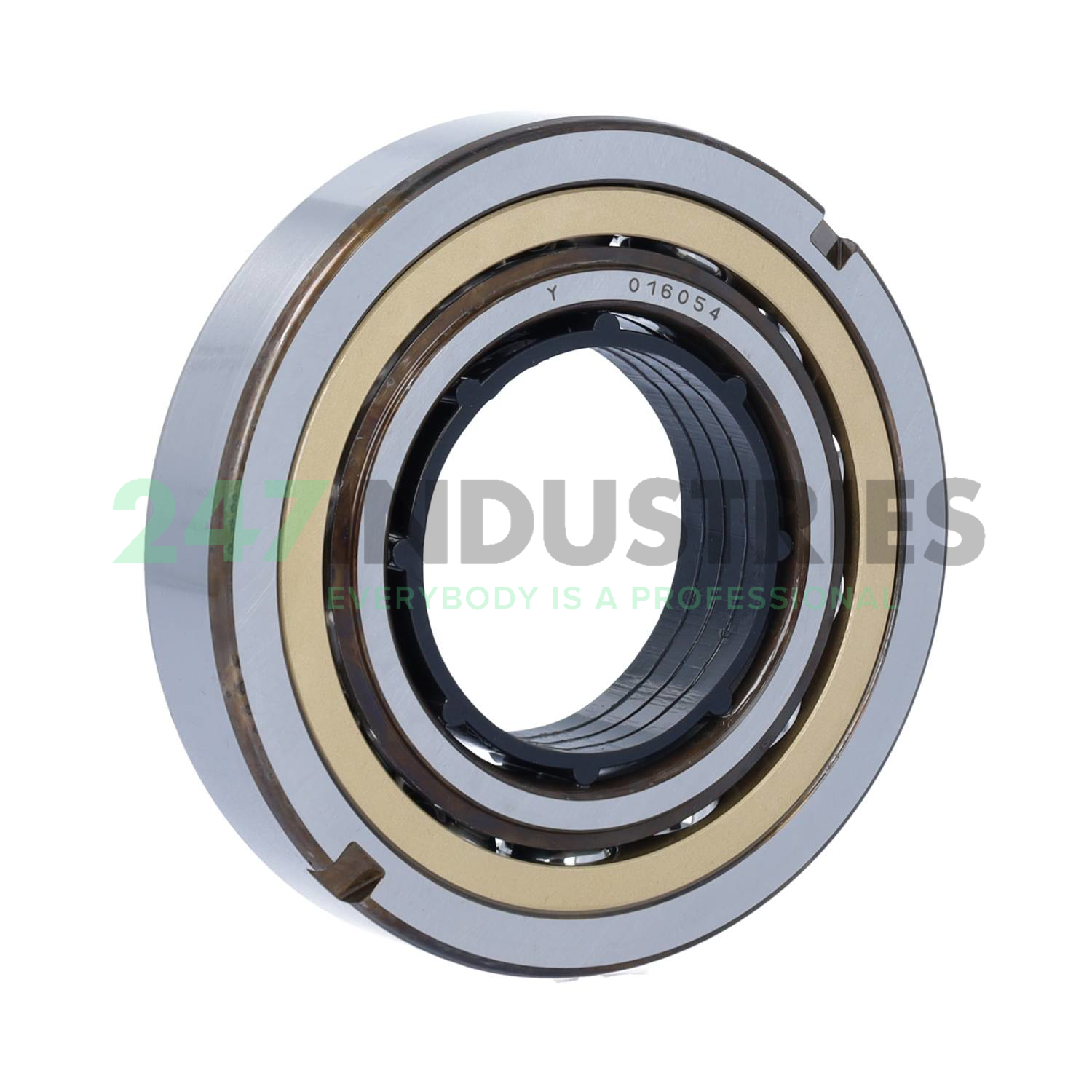

QJ212N2MA/C4B20 SKF

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 110
3. Width (B) MM 22
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 4.3307
6. Width (B) Inch 0.8661

Suffix description

1. N2 Two Locating Slots (Notches), 180° Apart, In The Large Outer Ring Side Face
2. MA Machined Brass Cage Guidance By The Outer Ring
3. C4 Bearing Internal Clearance Greater Than C3
4. B20 Stabilized Rings And Reduced Width Tolerance

Technical details

1. Availability 1 pc
2. Brand SKF
3. Item number QJ212N2MA/C4B20 SKF
4. Also known as QJ212-N2-MPA-C4-F59
   QJ212-N2-MPA-F59-C4

5. EAN 7316570652390
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.99

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification N2 - 2 Locking Groove in Outer Ring
4. Radial Internal Play C4 Internal Play (Higher than C3)
5. Precision A2 - Reduced Width Tolerance
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring
