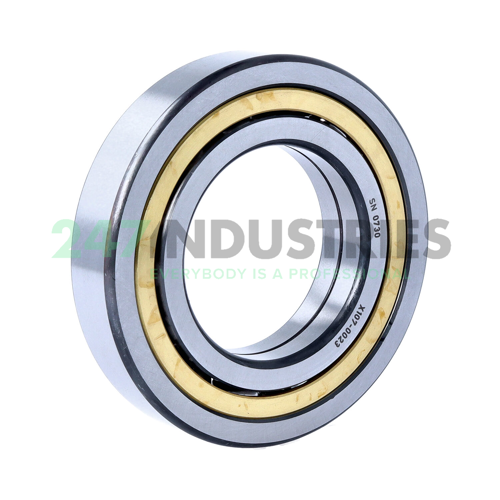

QJ212-XL-MPA FAG

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 110
3. Width (B) MM 22
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 4.3307
6. Width (B) Inch 0.8661
7. Width (b) mm 22

Suffix description

1. XL X-Life
2. MPA Solid Brass Cage

Technical details

1. Availability 21 pcs
2. Brand FAG
3. Item number QJ212-XL-MPA FAG
4. Also known as 0192605980000
   QJ212-MPA

5. EAN 4012801013413
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.945

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

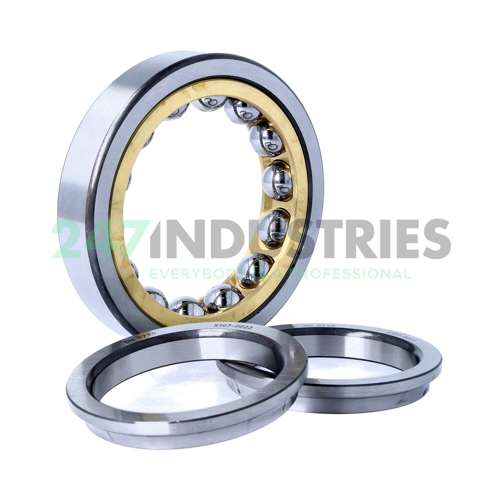

7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 87000
2. Radial Dynamic Load Rating Cr (N) 94000
3. Limiting speed (n G) 12300
4. Reference speed (n ϑr) 5400
5. ECLASS number 23-05-08-03
6. ECLASS2 number 23-05-08-03
7. Medias description Four-point contact bearing QJ2..-XL-MPA, inner ring split
