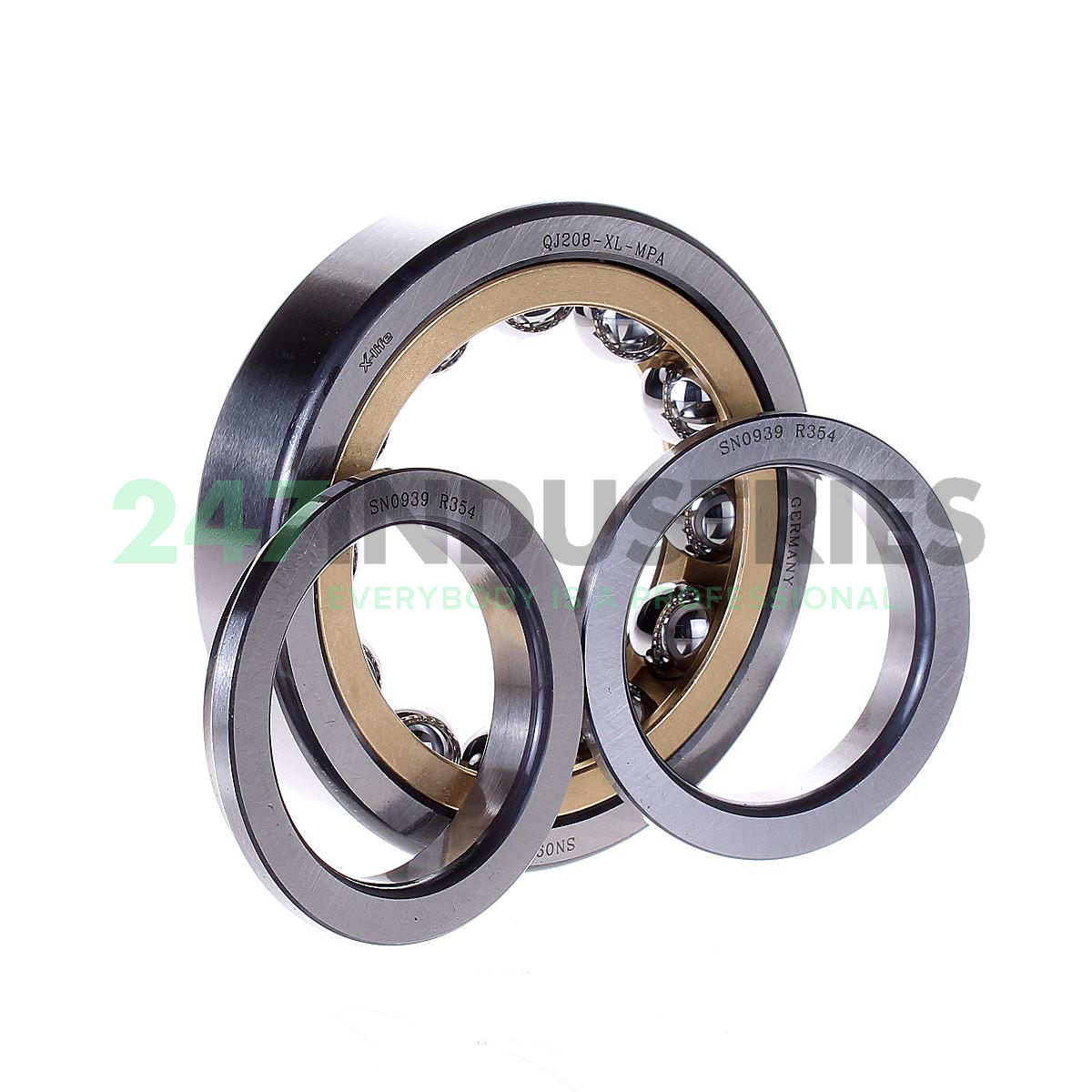

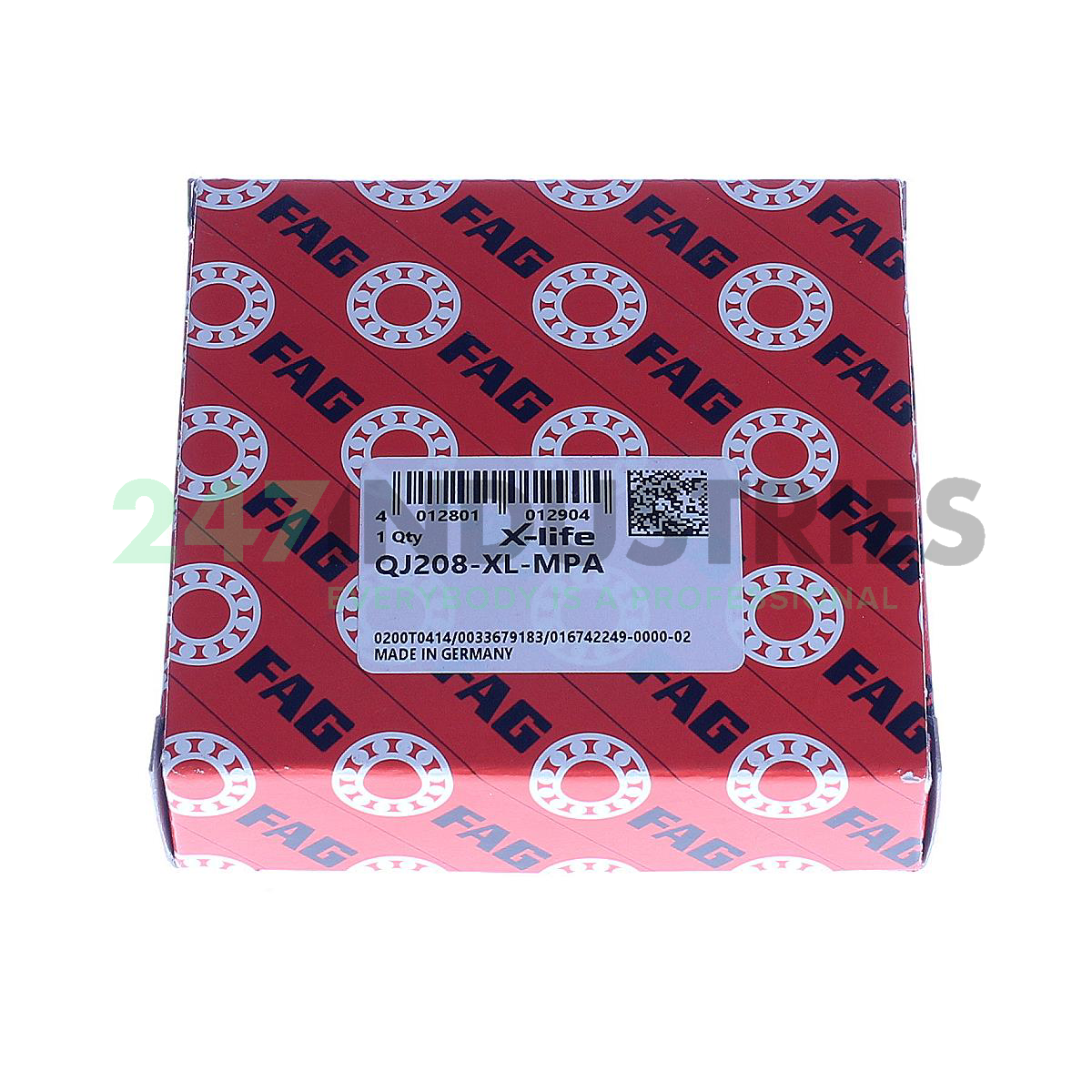

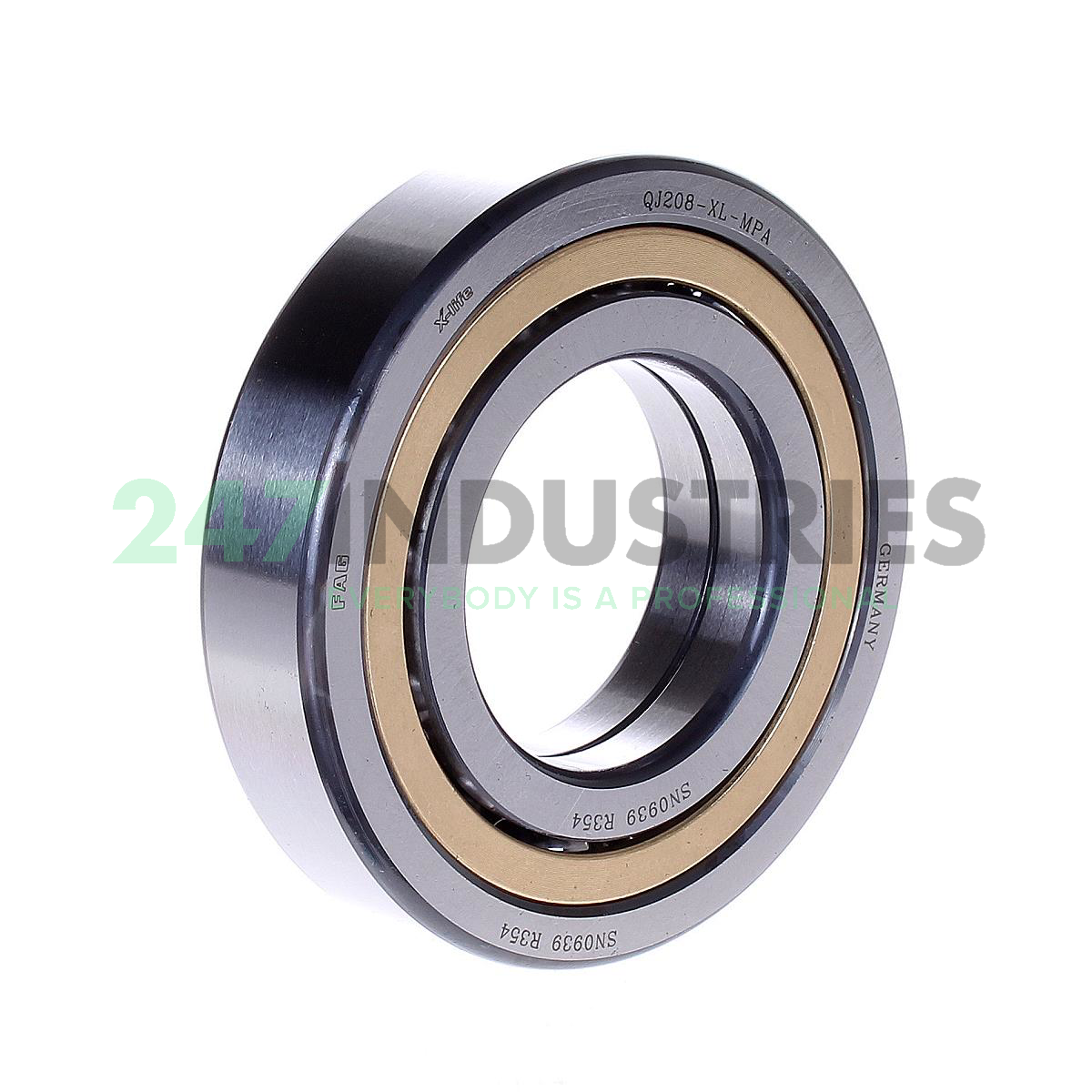

QJ208-XL-MPA FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 18
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.7087
7. Width (b) mm 18

Suffix description

1. XL X-Life
2. MPA Solid Brass Cage

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number QJ208-XL-MPA FAG
4. Also known as 0167422490000
   QJ208-MPA

5. EAN 4012801012904
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.44

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 46500
2. Radial Dynamic Load Rating Cr (N) 58000
3. Basic static load rating, radial (C 0r) "46500.0000"
4. Limiting speed (n G) 17500
5. Reference speed (n ϑr) 7500
6. ECLASS number 23-05-08-03
7. ECLASS2 number 23-05-08-03
8. Medias description Four-point contact bearing QJ2..-XL-MPA, inner ring split

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
