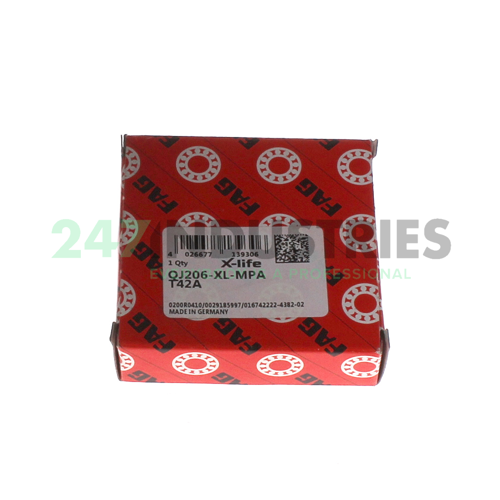

QJ206-XL-MPA-T42A FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 16
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299
7. Width (b) mm 16

Suffix description

1. XL X-Life
2. MPA Solid Brass Cage
3. T42A Special Axial C2 Clearance

Technical details

1. Availability 23 pcs
2. Brand FAG
3. Item number QJ206-XL-MPA-T42A FAG
4. Also known as 0167422224382
   QJ206-MPA-T42A

5. EAN 4026677139306
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.24

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification No External Modification
4. Radial Internal Play C2 Internal Play (Less than Cn)
5. Precision Special Axial Clearance
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 27500
2. Radial Dynamic Load Rating Cr (N) 37500
3. Basic static load rating, radial (C 0r) "27500.0000"
4. Limiting speed (n G) 23200
5. Reference speed (n ϑr) 10200
6. ECLASS number 23-05-08-03
7. ECLASS2 number 23-05-08-03
8. Medias description Four-point contact bearing QJ2..-XL-MPA, inner ring split
