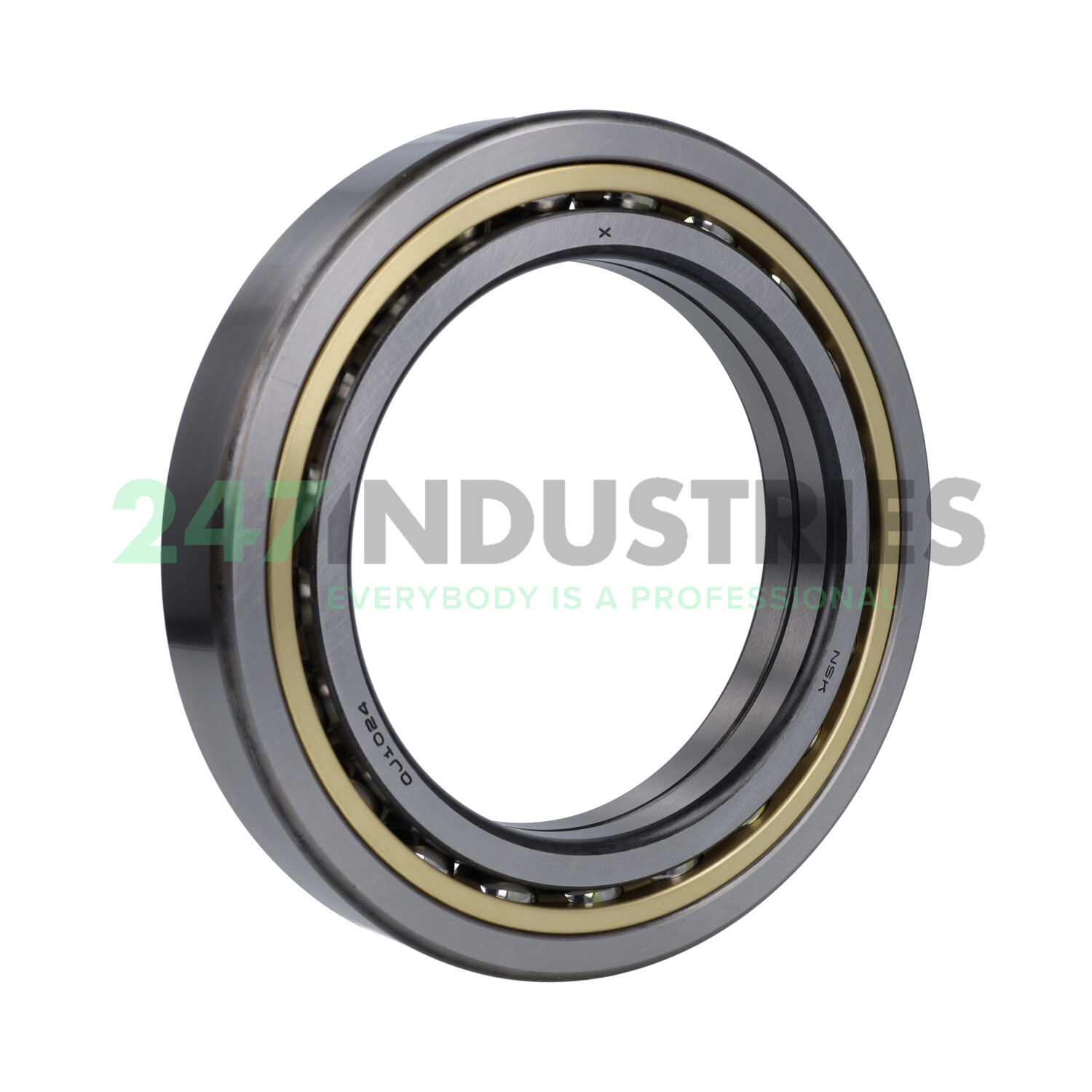

QJ1024M C3 NSK

All dimensions

1. Inner (d) MM 120
2. Outer (D) MM 180
3. Width (B) MM 28
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.1024

Suffix description

1. M Machined Brass Cage, Located On The Rolling Elements
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs
2. Brand NSK
3. Item number QJ1024M C3 NSK
4. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 2.61

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring
