PSHEY20-XL-N INA

Name: PSHEY20-XL-N INA
Brand: INA

€ 27,44 ex VAT

€ 33,20 in VAT

€ 27,44 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

PSHEY20-XL-N INA

Housing and Bearing (assembly)

Stock	94 pcs in stock and ready for shipment
Brand	INA
Article number	PSHEY20-XL-N INA
Inside diameter	20mm
Outside diameter	65mm
Width	32mm

Product description

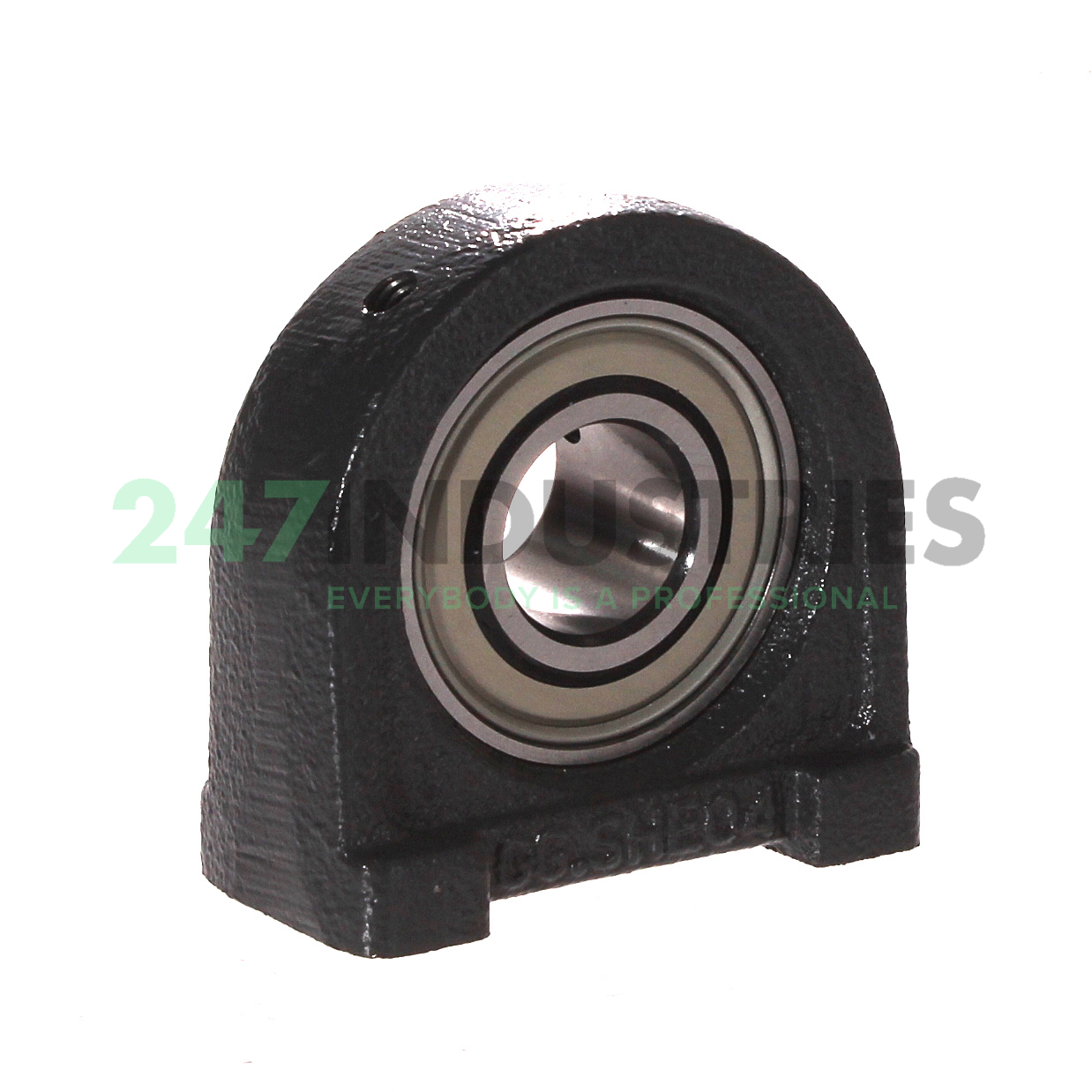

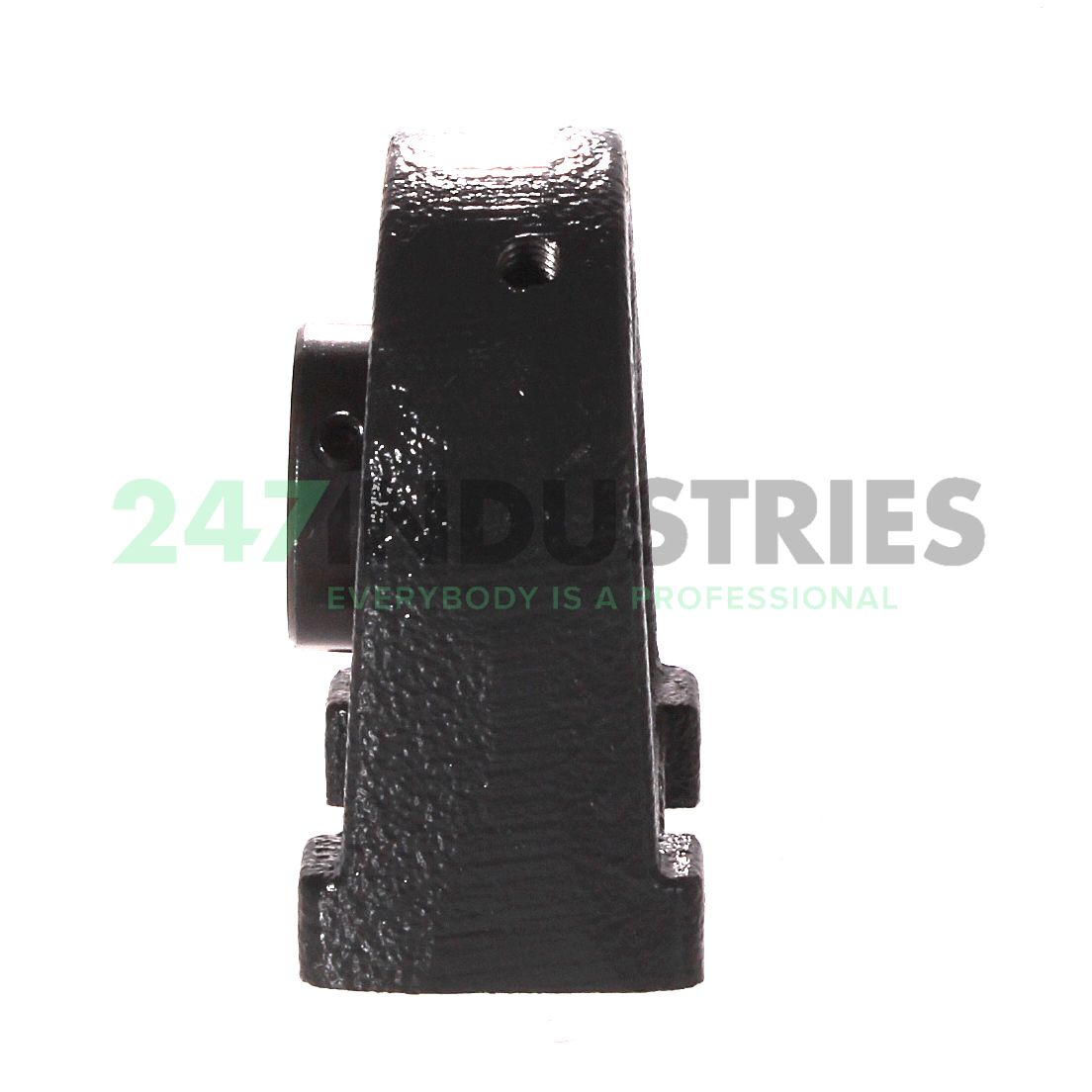

The PSHEY20-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Email us at: help@247industries.com Response within 24h

Downloads and links

Similar to: PSHEY20-XL-N INA

Loading similair products

Product specifications

Inside diameter 20mm
Outside diameter 65mm
Width 32mm

All dimensions

Inner (d) MM 20
Outer (D) MM 65
Width (B) MM 32
Inner (d) Inch 0.7874
Outer (D) Inch 2.5591
Width (B) Inch 1.2598
Length total (L) mm 65
Height (H 2) mm 64

Suffix description

XL X-Life
N Cast Iron Housing With Undercut Slot For End Caps

Technical details

Availability 94 pcs
Brand INA
Item number PSHEY20-XL-N INA
Also known as 0008887450000
PSHEY20-N
EAN 4012802808230
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 0.42

Product Properties

Seal P - P-Seals
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

ECLASS number 23-05-16-01
ECLASS2 number 23-05-16-01
Medias description Plummer block housing units PSHEY, cast iron housing, radial insert ball bearing with grub screws in inner ring, P seals
