PME55-XL INA

€ 107,79 ex VAT
€ 130,43 incl. VAT
€ 130,43 incl. VAT
€ 107,79 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

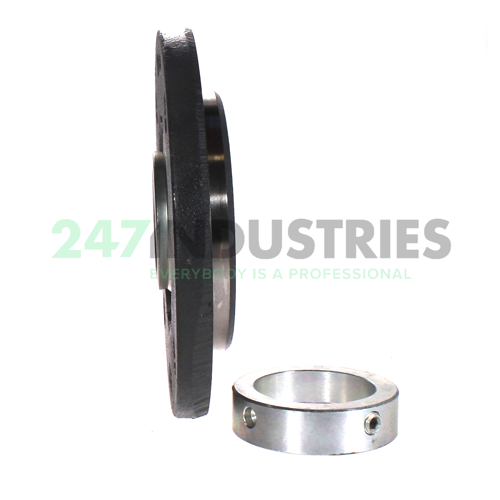

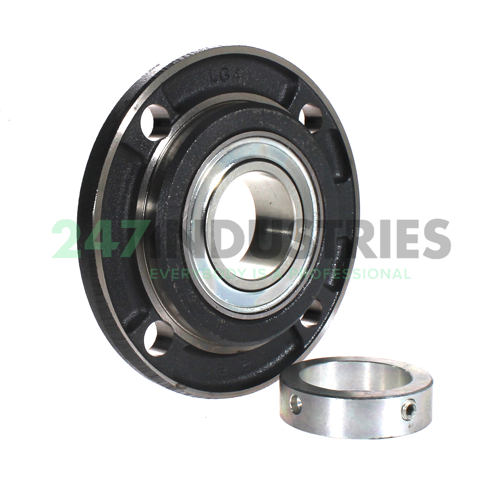

PME55-XL INA

Housing unit

Stock
52 pcs in stock and ready for shipment
Brand INA
Article number PME55-XL INA
Inside diameter 55,00mm
Outside diameter 185,00mm
Width 48,40mm
Product description

The PME55-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: PME55-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 55,00
  2. Outer (D) MM 185,00
  3. Width (B) MM 48,40
  4. Inner (d) Inch 2.1654
  5. Outer (D) Inch 7.2835
  6. Width (B) Inch 1.9055
  7. Height flange (H) mm 185,00
  8. Locking collar total width (B 1) mm 48,40
  9. Total height unit (U) mm 36,40

Suffix description

  1. XL X-Life

Technical details

  1. Availability 52 pcs
  2. Brand INA
  3. Item number PME55-XL INA
  4. Also known as 0009831950000
    PME55
  5. EAN 4012802817409
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 2.76

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 29000
  2. Radial Dynamic Load Rating Cr (N) 46000
  3. Basic static load rating, radial (C 0r) "29000.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units PME, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, P seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
