PME45-XL INA

Housing and Bearing (assembly)

Stock
31 pcs in stock and ready for shipment
Brand INA
Article number PME45-XL INA
Inside diameter 45mm
Outside diameter 155mm
Width 43,8mm
Product description

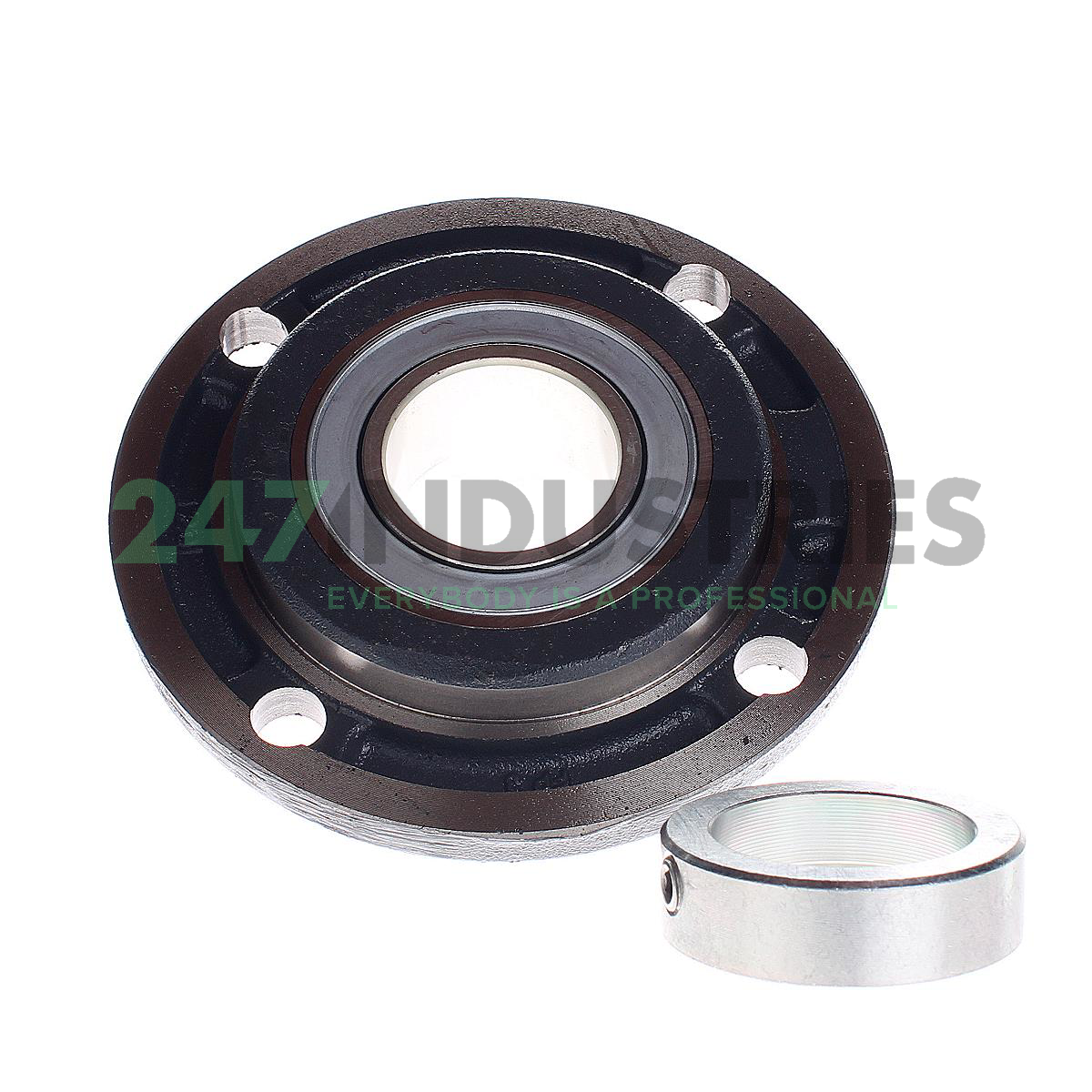

The PME45-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: PME45-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 45
  2. Outer (D) MM 155
  3. Width (B) MM 43,8
  4. Inner (d) Inch 1.7717
  5. Outer (D) Inch 6.1024
  6. Width (B) Inch 1.7244
  7. Height flange (H) mm 155
  8. Locking collar total width (B 1) mm 43,8
  9. Total height unit (U) mm 30,7

Suffix description

  1. XL X-Life

Technical details

  1. Availability 31 pcs
  2. Brand INA
  3. Item number PME45-XL INA
  4. Also known as 0009412390000
    GRAE45NPPB + ME09
  5. EAN 4012802804270
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.93

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 20400
  2. Radial Dynamic Load Rating Cr (N) 34500
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Housing units PME, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, P seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
