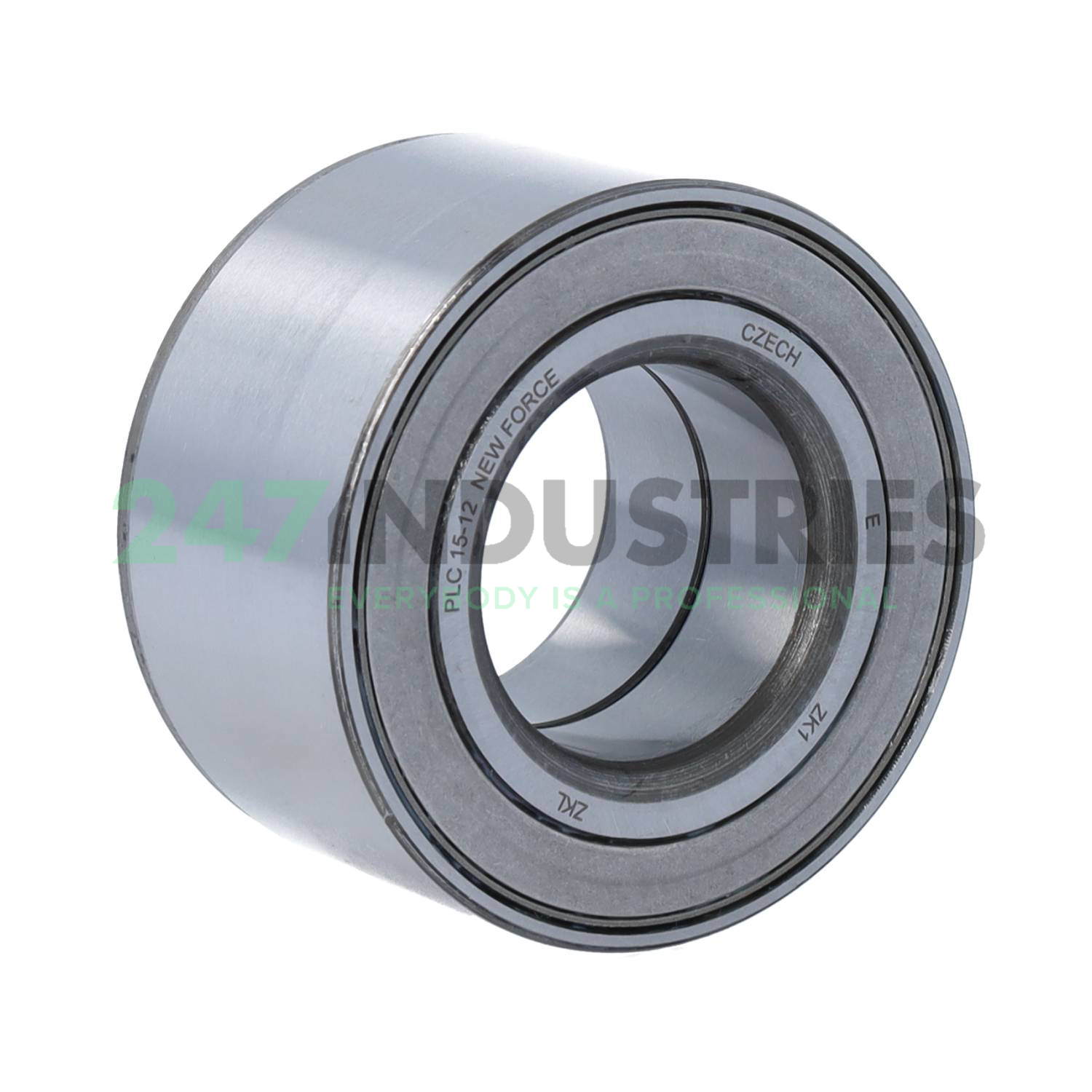

PLC15-12 ZKL

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 68
3. Width (B) MM 37
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.6772
6. Width (B) Inch 1.4567

Technical details

1. Availability 0 pcs
2. Brand ZKL
3. Item number PLC15-12 ZKL
4. Also known as 430042C
   633295
   633967
   BAH0031
   DAC35680037
   VKBA1410
   VKBA1414
   VKBA3528
   VKBA685

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.562

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Split inner ring
