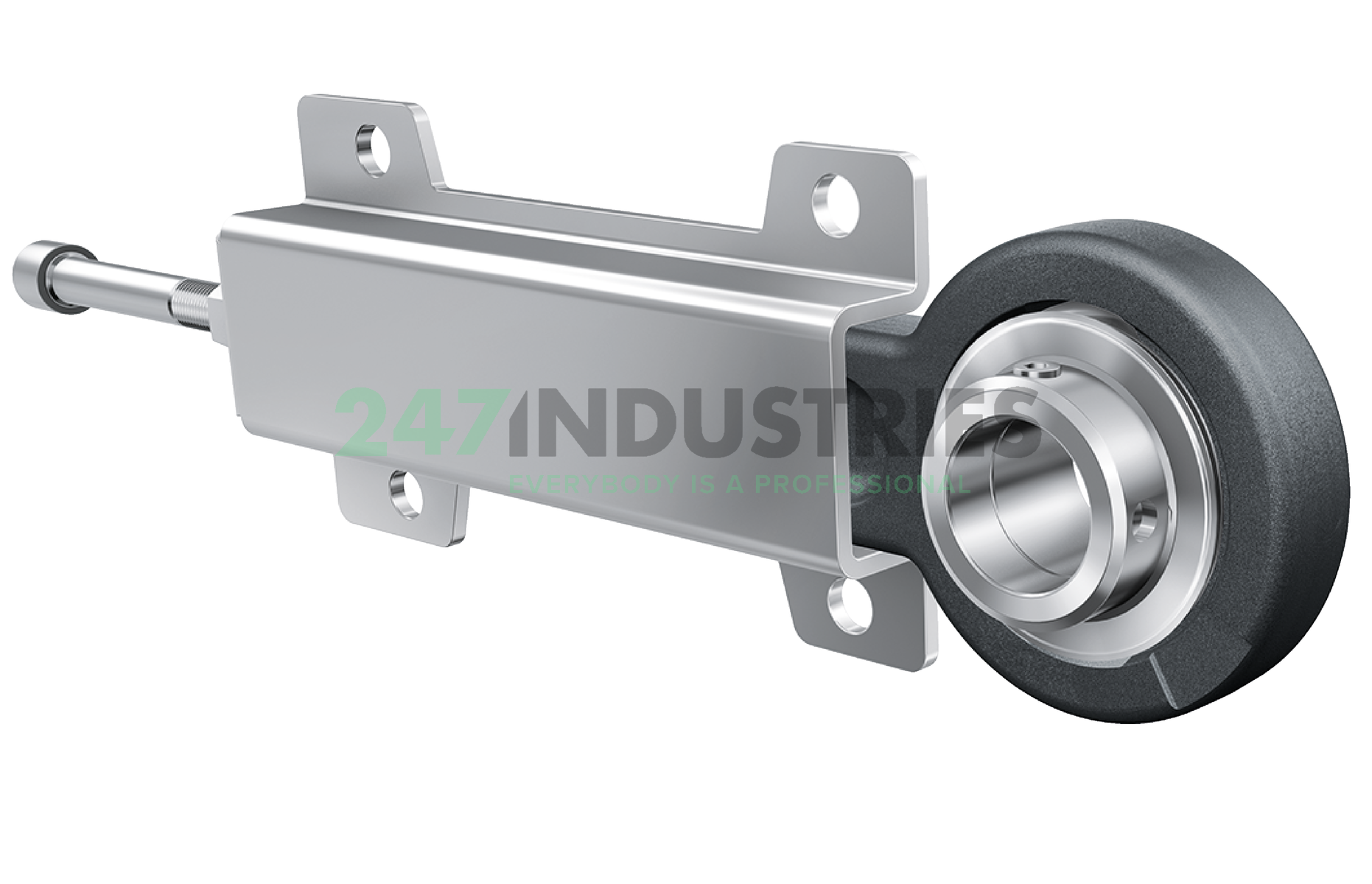

PHUSE50-XL-N INA

Housing unit

Stock
26 pcs in stock and ready for shipment
Brand INA
Article number PHUSE50-XL-N INA
Inside diameter 50,00mm
Outside diameter 130,00mm
Width 36,00mm
Product description

The PHUSE50-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: PHUSE50-XL-N INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 50,00
  2. Outer (D) MM 130,00
  3. Width (B) MM 36,00
  4. Inner (d) Inch 1.9685
  5. Outer (D) Inch 5.1181
  6. Width (B) Inch 1.4173
  7. Height flange (H) mm 130,00
  8. Length total (L) mm 256,00
  9. Height housing (A) mm 36,00
  10. Shoulder diameter housing (V) mm 120,00

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 26 pcs
  2. Brand INA
  3. Item number PHUSE50-XL-N INA
  4. Also known as 0109724550000
    GRAE50NPPB + HUSE/HUE10
    PHUSE50-N
  5. EAN 4012802831986
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 5.25

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Load carrying capacity (housing) (C 0r G) "23200.0000"
  2. ECLASS number 23-05-16-03
  3. ECLASS2 number 23-05-16-03
  4. Medias description Take-up housing units PHUSE, cast iron and sheet steel housing, radial insert ball bearing with eccentric locking collar, P seals
