PHEY35-XL INA

Name: PHEY35-XL INA
Brand: INA

€ 41,51 ex VAT

€ 50,23 in VAT

€ 41,51 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

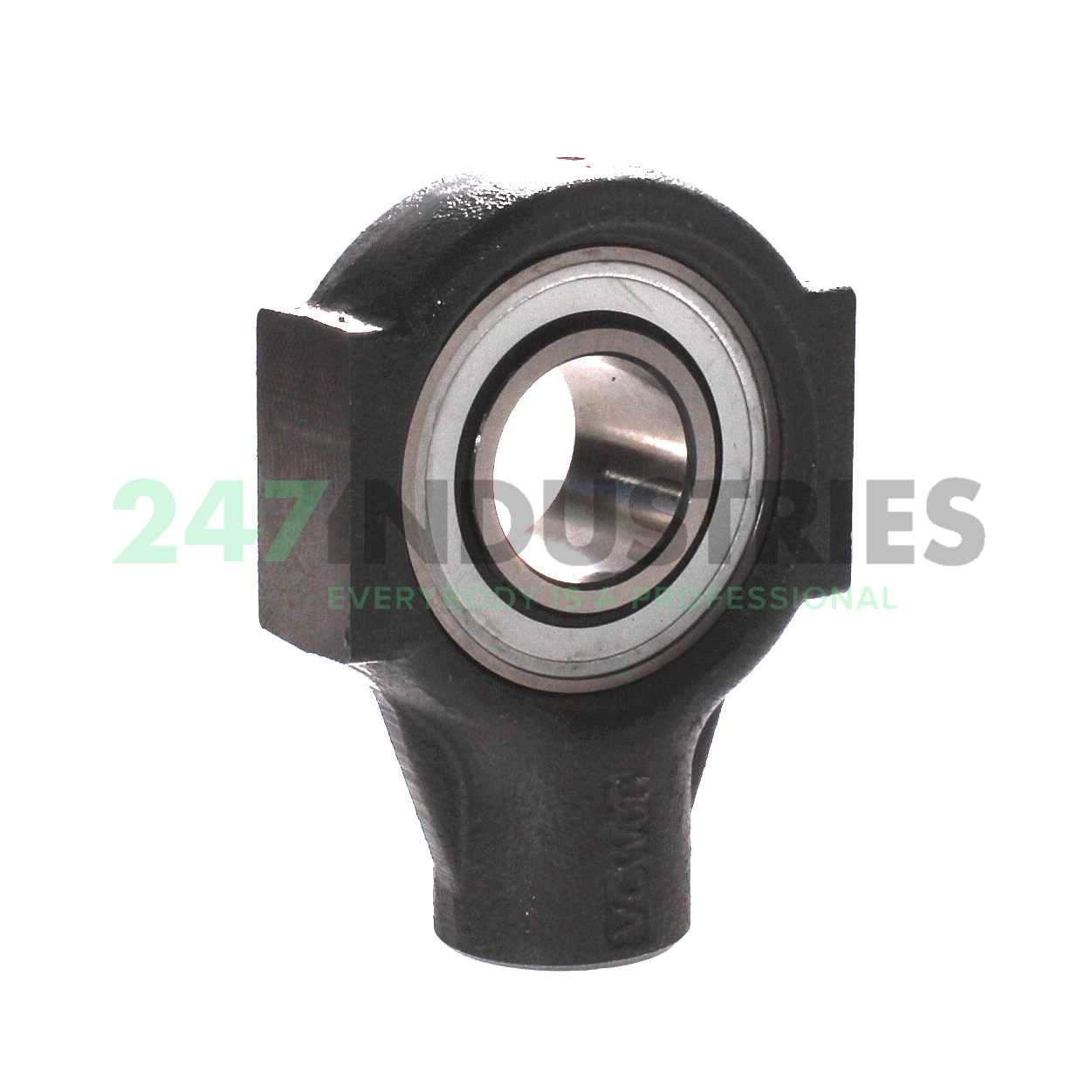

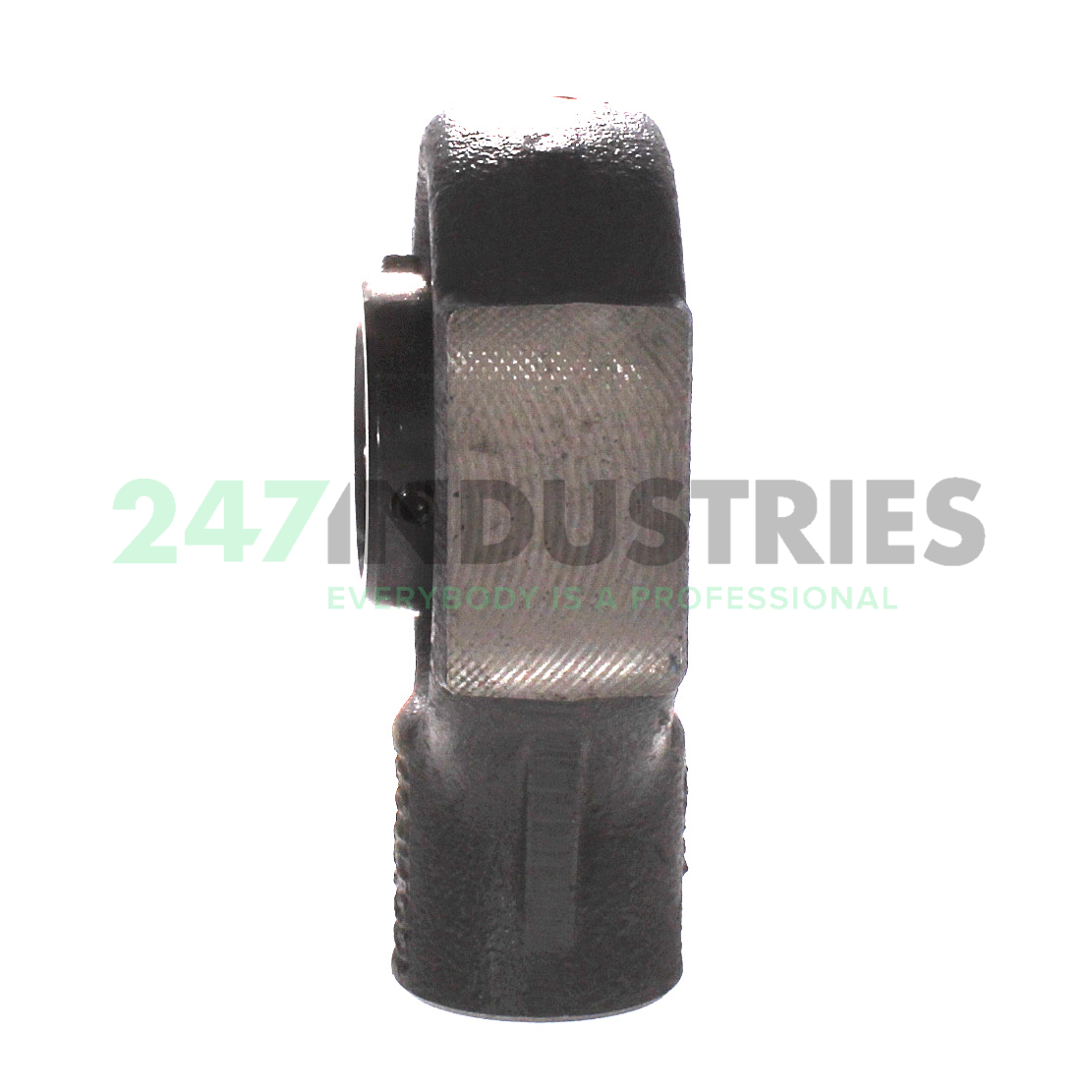

PHEY35-XL INA

Housing and Bearing (assembly)

Stock	201 pcs in stock and ready for shipment
Brand	INA
Article number	PHEY35-XL INA
Inside diameter	35mm
Outside diameter	122mm
Width	90mm

Product description

The PHEY35-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Start a chat
Call us at: +31 (0)85 00 22 247
Email us at: help@247industries.com Response within 24h

Downloads and links

Similar to: PHEY35-XL INA

Loading similair products

Product specifications

Inside diameter 35mm
Outside diameter 122mm
Width 90mm

All dimensions

Inner (d) MM 35
Outer (D) MM 122
Width (B) MM 90
Inner (d) Inch 1.378
Outer (D) Inch 4.8031
Width (B) Inch 3.5433
Length total (L) mm 122
Housing total width (M) mm 90
Width housing (A 2) mm 32

Suffix description

XL X-Life

Technical details

Availability 201 pcs
Brand INA
Item number PHEY35-XL INA
Also known as 0008863940000
PHEY35
EAN 4012802808513
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 1.23

Product Properties

Seal 2F - Standard Seal for Y-bearings
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

ECLASS number 23-05-16-03
ECLASS2 number 23-05-16-03
Medias description Take-up housing units PHEY, cast iron housing, radial insert ball bearing with grub screws in inner ring, P seals
