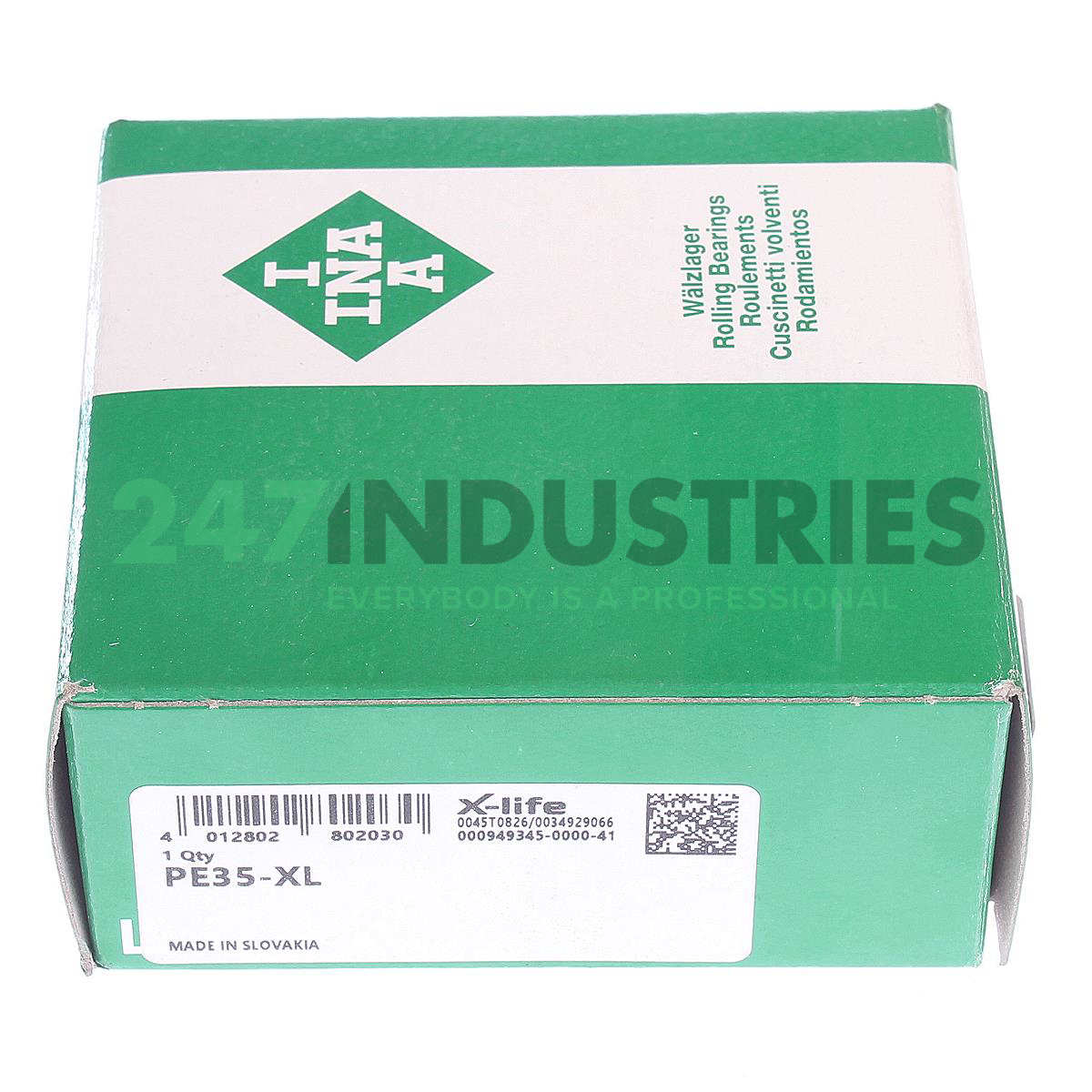

PE35-XL INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 80
3. Width (B) MM 40
4. Inner (d) Inch 1.378
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.5748
7. Width (U) mm 40

Suffix description

1. XL X-Life

Technical details

1. Availability 36 pcs
2. Brand INA
3. Item number PE35-XL INA
4. Also known as 0009493450000
   RAE35NPPB + E07

5. EAN 4012802802030
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.69

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15300
2. Radial Dynamic Load Rating Cr (N) 27500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings PE, cylindrical outer ring, with steel aligning ring, location by eccentric locking collar, P seals on both sides
