PCJTY45-XL INA

Housing and Bearing (assembly)

Stock
6 pcs in stock and ready for shipment
Brand INA
Article number PCJTY45-XL INA
Inside diameter 45mm
Outside diameter 178,5mm
Width 49,8mm
Product description

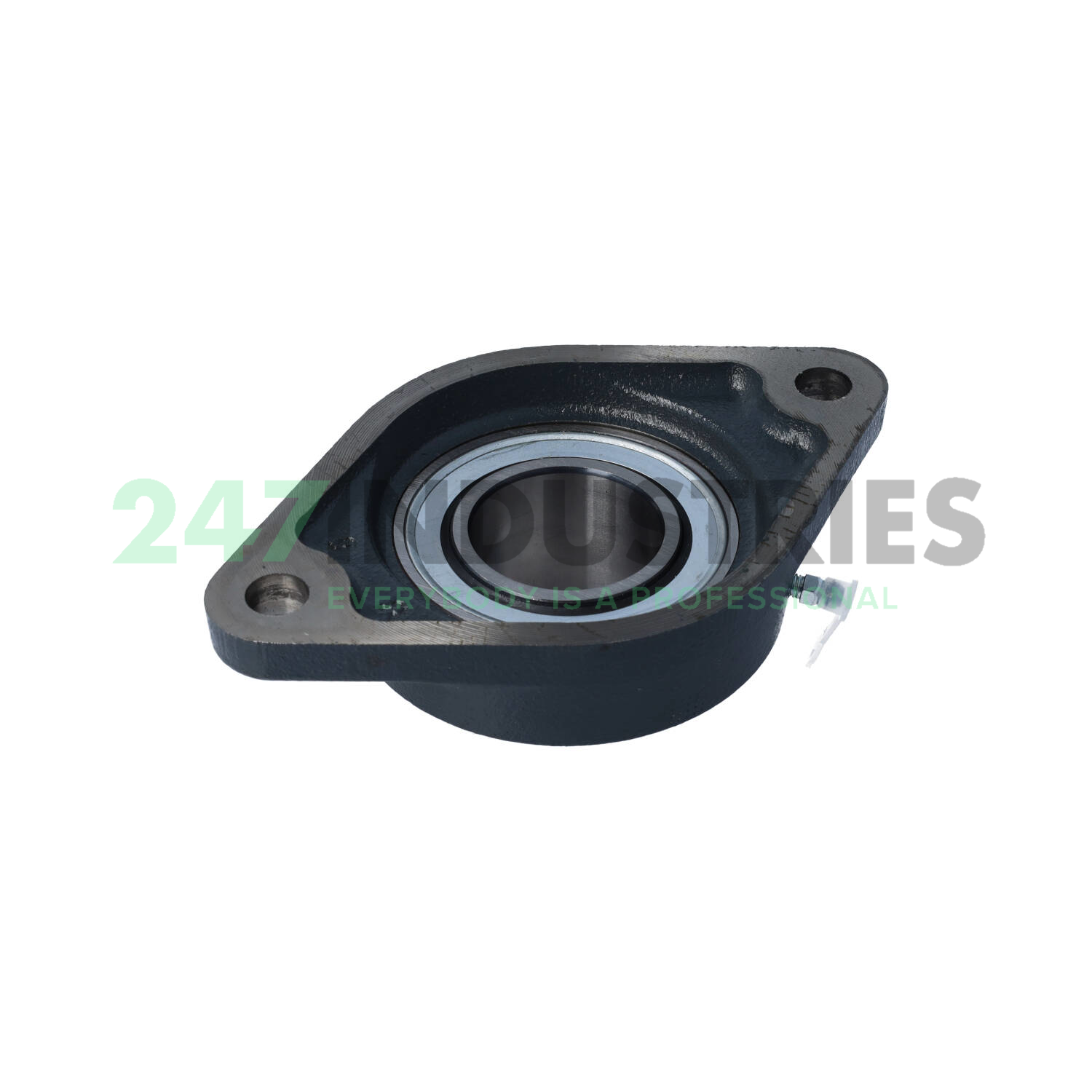

The PCJTY45-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: PCJTY45-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 45
  2. Outer (D) MM 178,5
  3. Width (B) MM 49,8
  4. Inner (d) Inch 1.7717
  5. Outer (D) Inch 7.0276
  6. Width (B) Inch 1.9606
  7. Flange width (L) mm 111
  8. Height flange (H) mm 180
  9. Total height unit (U) mm 54,5

Suffix description

  1. XL X-Life

Technical details

  1. Availability 6 pcs
  2. Brand INA
  3. Item number PCJTY45-XL INA
  4. Also known as 0947480630000
    NIP DIN71412-A R 1/8
    NIP DIN71412-B R 1/8
    NIP DIN71412-C R 1/8
    PCJTY45
  5. EAN 4054372939587
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.55

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Basic static load rating, radial (C 0r) 20400
