PCJT40-XL-N INA

€ 47,53 ex VAT
€ 57,51 in VAT
€ 57,51 in VAT
€ 47,53 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

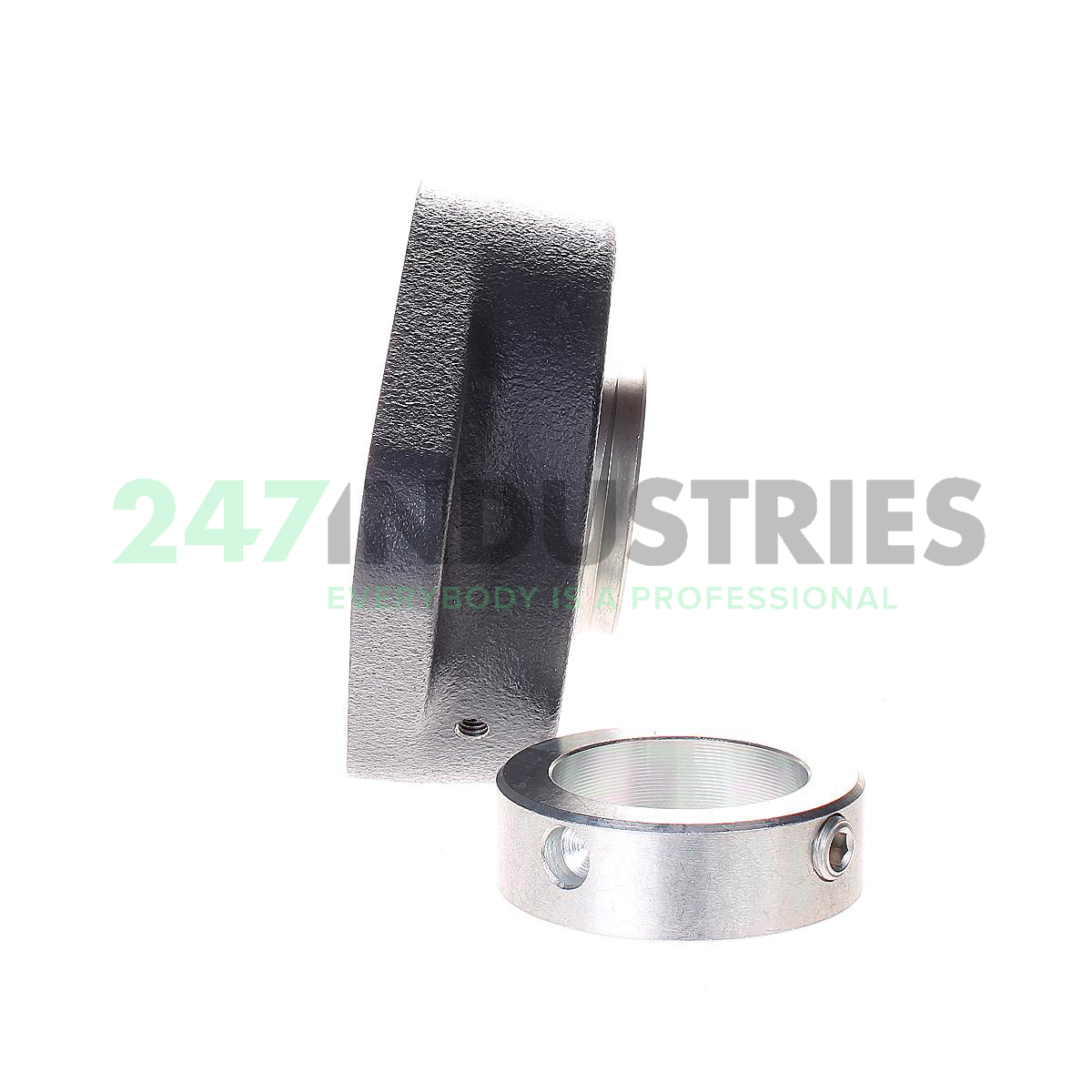

PCJT40-XL-N INA

Housing unit

Stock
6 pcs in stock and ready for shipment
Brand INA
Article number PCJT40-XL-N INA
Inside diameter 40mm
Outside diameter 171,5mm
Width 56,7mm
Product description

The PCJT40-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Help with this product

Downloads and links

Similar to: PCJT40-XL-N INA

Product
Dimensions/Properties
Stock
Price ex VAT

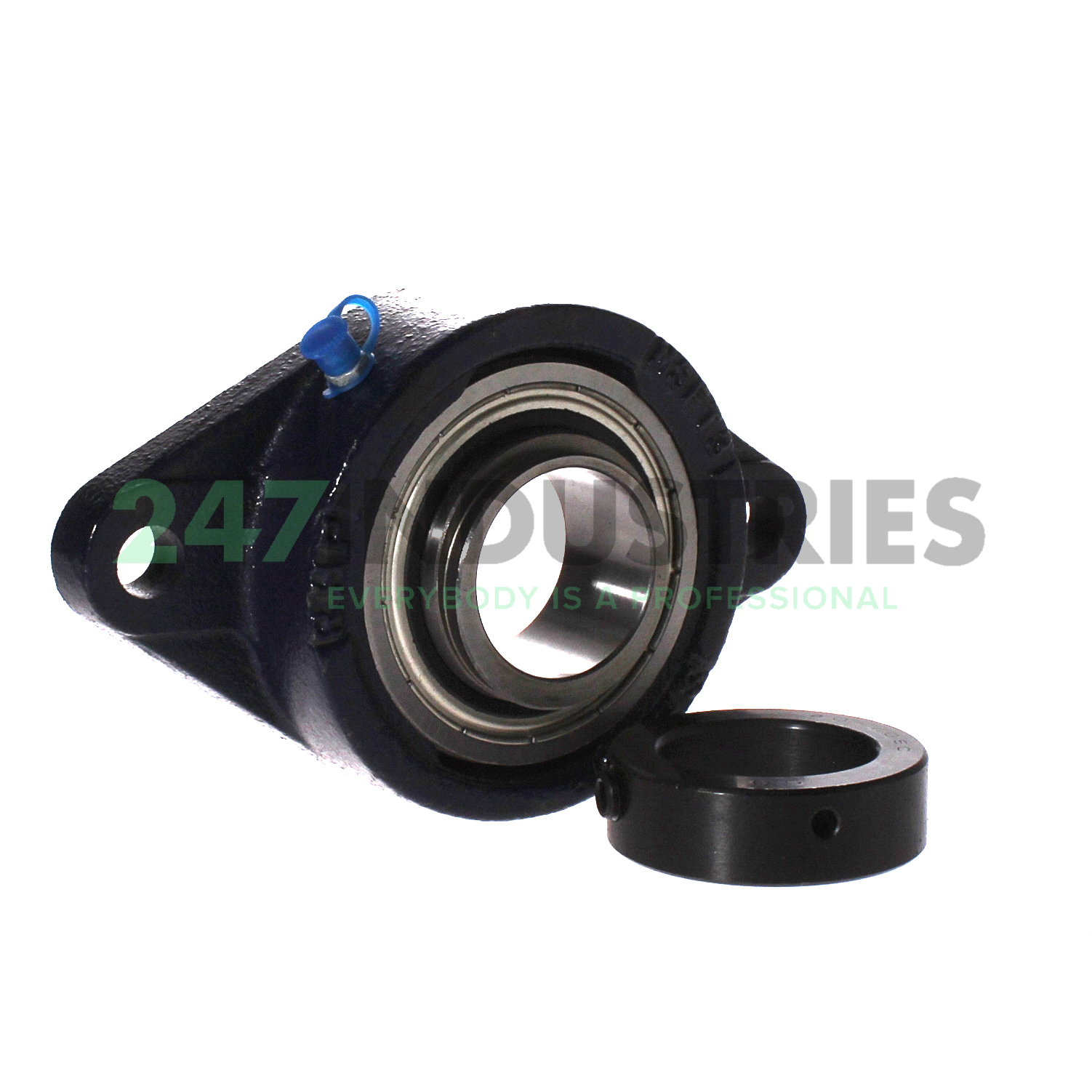

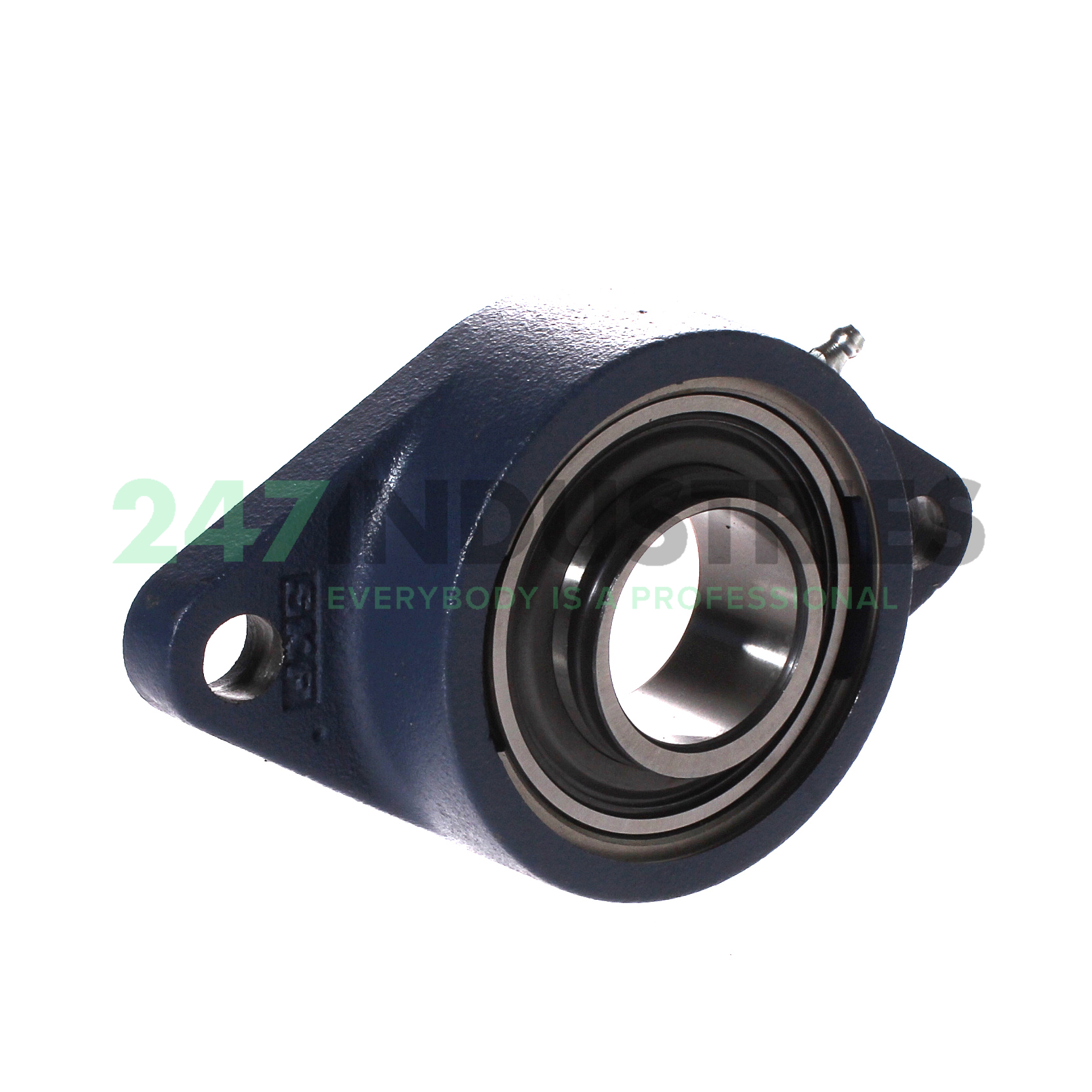

FYTB40FM SKF
FYTB40FM SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)
€ 43,31 ex VAT
  • Inside diameter 40mm
  • Outside diameter 171,5mm
  • Width 56,7mm
FYTB40FM SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)

12 pcs
€ 43,31 ex VAT
SFT40EC RHP
SFT40EC RHP
Guaranteed same day shipment on orders placed before 18:00h (CET)
€ 35,73 ex VAT
  • Inside diameter 40mm
  • Outside diameter 171,5mm
  • Width 56,7mm
SFT40EC RHP
Guaranteed same day shipment on orders placed before 18:00h (CET)

7 pcs
€ 35,73 ex VAT
SAFL208 TR
SAFL208 TR
Guaranteed same day shipment on orders placed before 18:00h (CET)
€ 20,70 ex VAT
  • Inside diameter 40,00mm
  • Outside diameter 171,50mm
  • Width 56,70mm
SAFL208 TR
Guaranteed same day shipment on orders placed before 18:00h (CET)

43 pcs
€ 20,70 ex VAT
SAFL208G TR
SAFL208G TR
Guaranteed same day shipment on orders placed before 18:00h (CET)
€ 20,70 ex VAT
  • Inside diameter 40,00mm
  • Outside diameter 171,50mm
  • Width 56,70mm
SAFL208G TR
Guaranteed same day shipment on orders placed before 18:00h (CET)

2 pcs
€ 20,70 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 171,5
  3. Width (B) MM 56,7
  4. Inner (d) Inch 1.5748
  5. Outer (D) Inch 6.752
  6. Width (B) Inch 2.2323
  7. Flange width (L) mm 105
  8. Height flange (H) mm 172
  9. Total height unit (U) mm 56,7

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 6 pcs
  2. Brand INA
  3. Item number PCJT40-XL-N INA
  4. Also known as 0096437960000
    PCJT40-N
  5. EAN 4012802837124
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.59

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 19800
  2. Radial Dynamic Load Rating Cr (N) 34500
  3. Basic static load rating, radial (C 0r) "19800.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units PCJT, two-bolt flanged housing units, cast iron, eccentric locking collar, P seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
