PCJT25-XL-N-FA125 INA

Housing unit

Stock
6 pcs in stock and ready for shipment
Brand INA
Article number PCJT25-XL-N-FA125 INA
Inside diameter 25mm
Outside diameter 124mm
Width 42,5mm
Product description

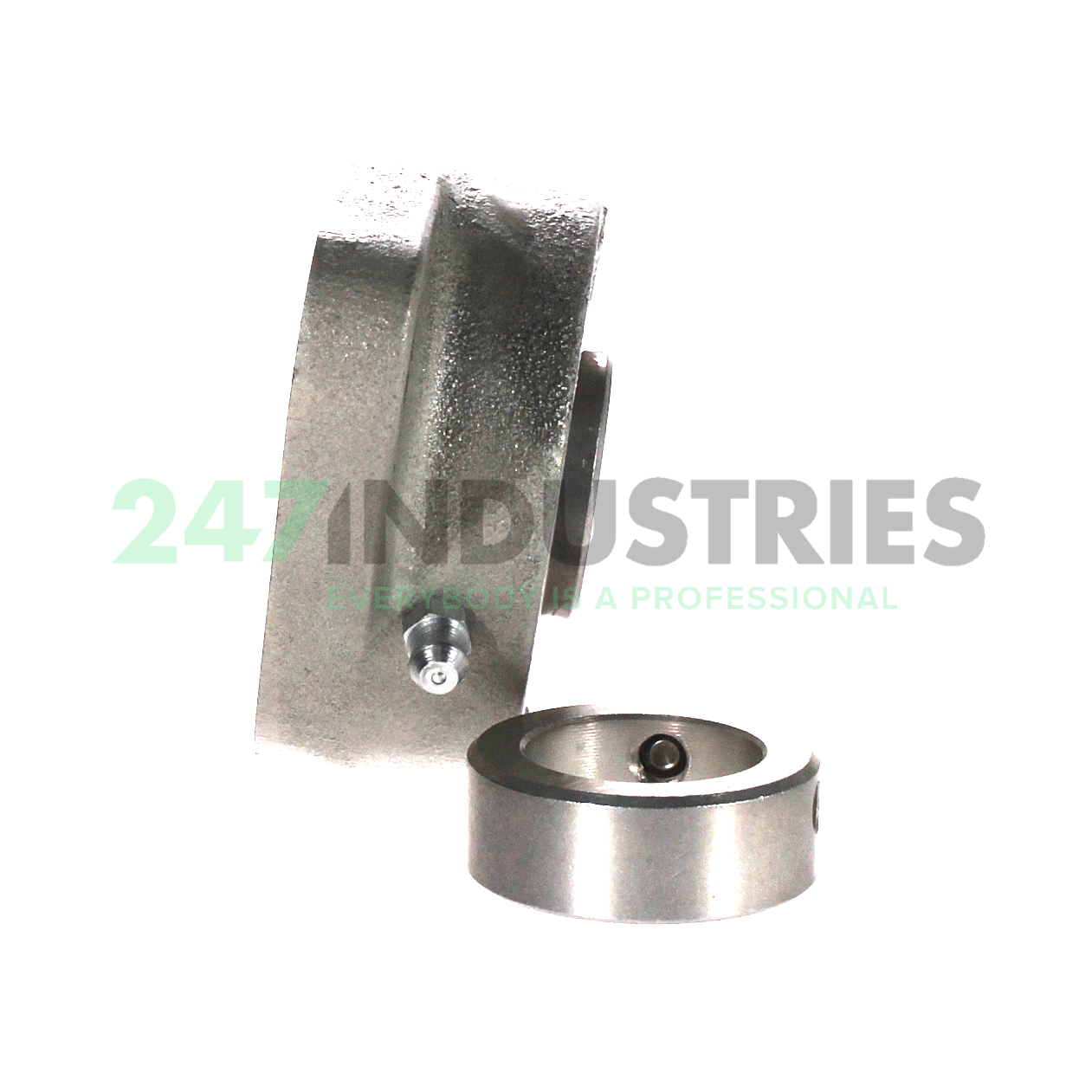

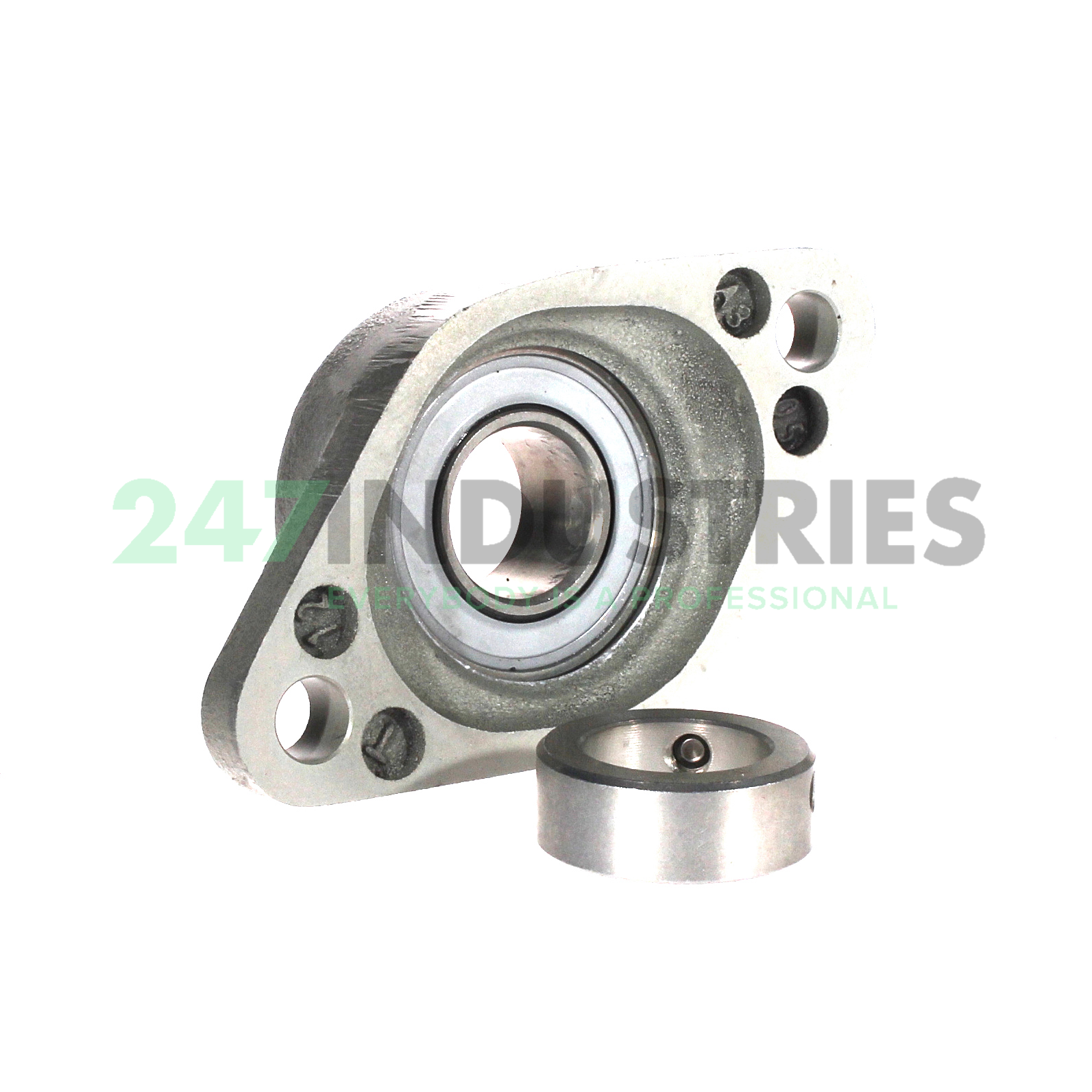

The PCJT25-XL-N-FA125 INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Help with this product

Downloads and links

Similar to: PCJT25-XL-N-FA125 INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25
  2. Outer (D) MM 124
  3. Width (B) MM 42,5
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 4.8819
  6. Width (B) Inch 1.6732
  7. Flange width (L) mm 70
  8. Height flange (H) mm 124
  9. Total height unit (U) mm 42,5

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps
  3. FA125 With Corrotect® Coating, Protected Against Corrosion

Technical details

  1. Availability 6 pcs
  2. Brand INA
  3. Item number PCJT25-XL-N-FA125 INA
  4. Also known as 0096279950000
    PCJT25-N-FA125
  5. EAN 4012802810226
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.56

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment With Corrotect® Coating

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 7800
  2. Radial Dynamic Load Rating Cr (N) 14900
  3. Basic static load rating, radial (C 0r) "7800.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units PCJT..-FA125, two-bolt flanged housing units, cast iron, eccentric locking collar, P seals, with anti-corrosion protection

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
