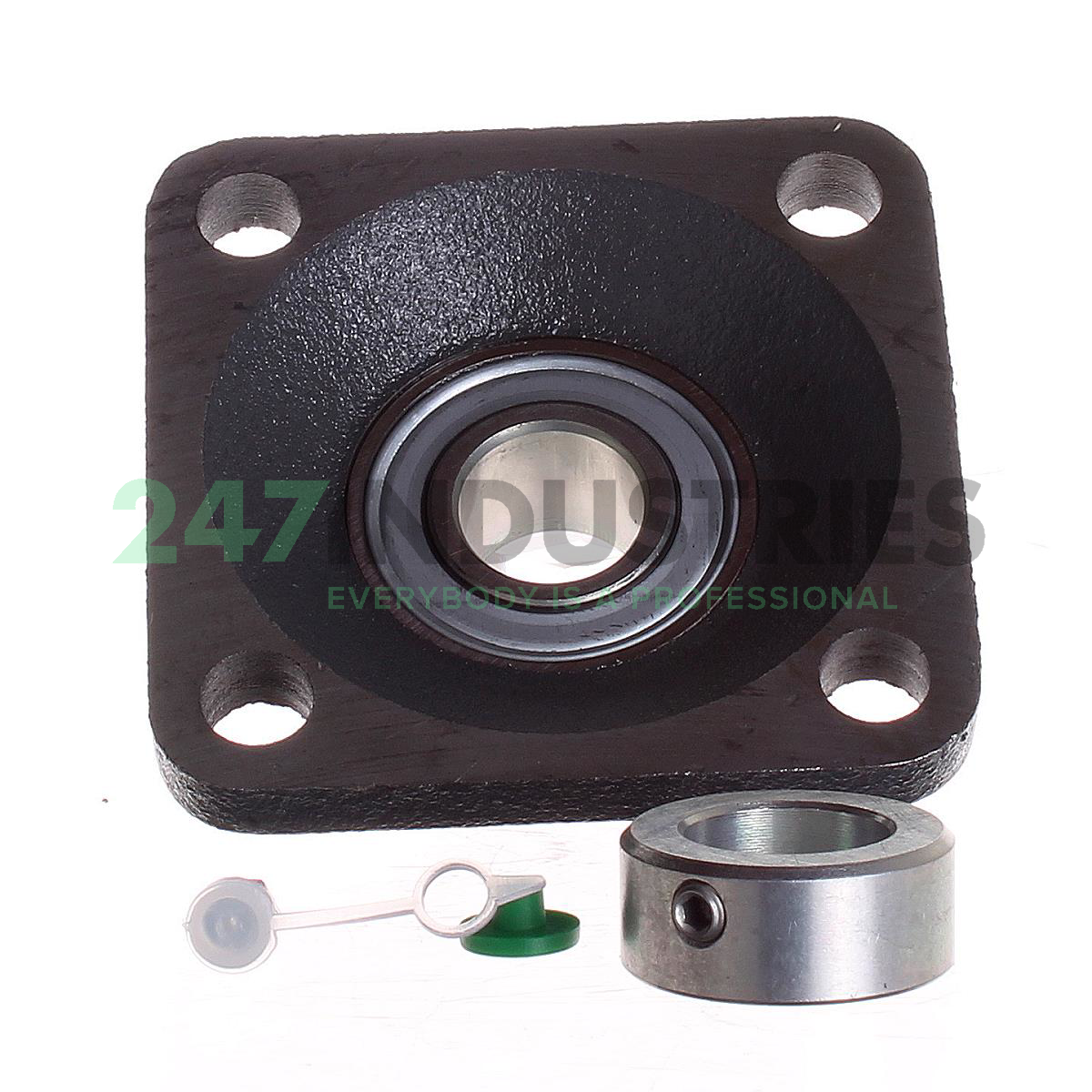

PCJ20-XL-N INA

Housing and Bearing (assembly)

Stock
20 pcs available for shipment on Tue 23 Dec
Brand INA
Article number PCJ20-XL-N INA
Inside diameter 20mm
Outside diameter 86mm
Width 42,5mm
Product description

The PCJ20-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: PCJ20-XL-N INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 86
  3. Width (B) MM 42,5
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 3.3858
  6. Width (B) Inch 1.6732
  7. Flange width (L) mm 86
  8. Total height unit (U) mm 42,5

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 20 pcs on Tue 23 Dec
  2. Brand INA
  3. Item number PCJ20-XL-N INA
  4. Also known as 0096408780000
    PCJ20-N
  5. EAN 4012802809497
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.559

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 6600
  2. Radial Dynamic Load Rating Cr (N) 13600
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Housing units PCJ, four-bolt flanged housing units, cast iron, eccentric locking collar, P seals
