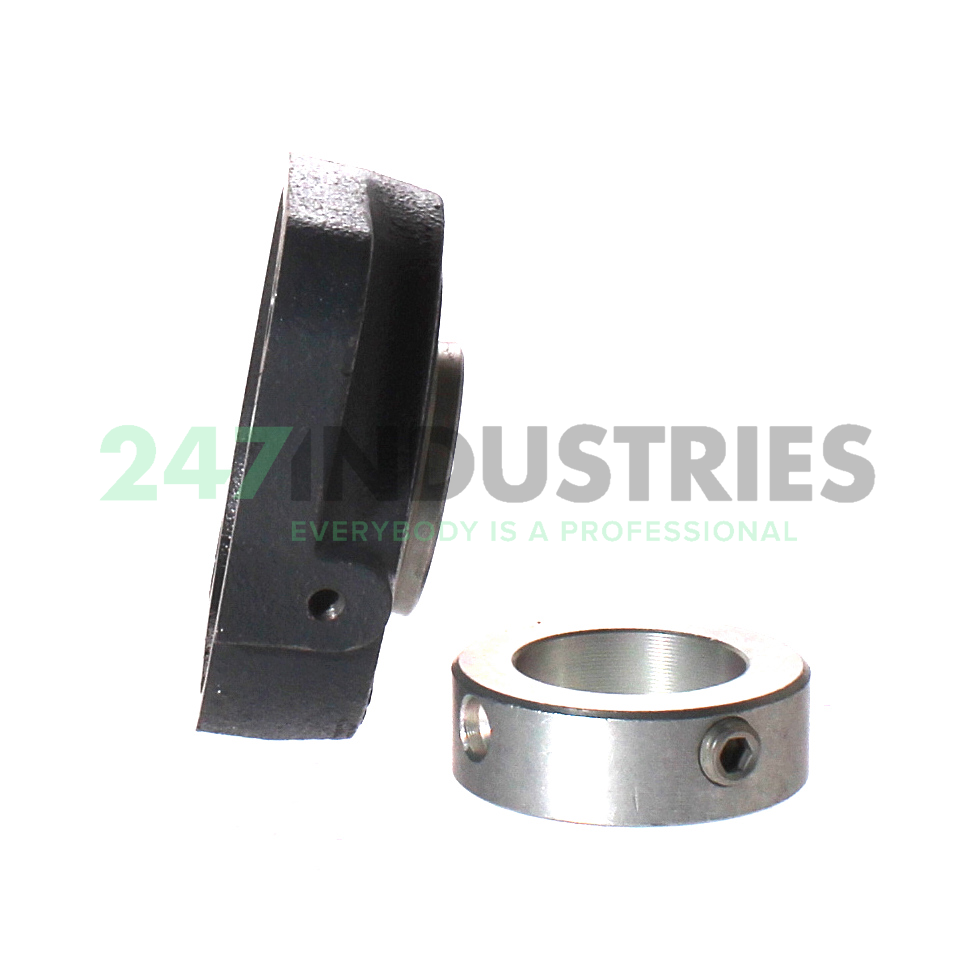

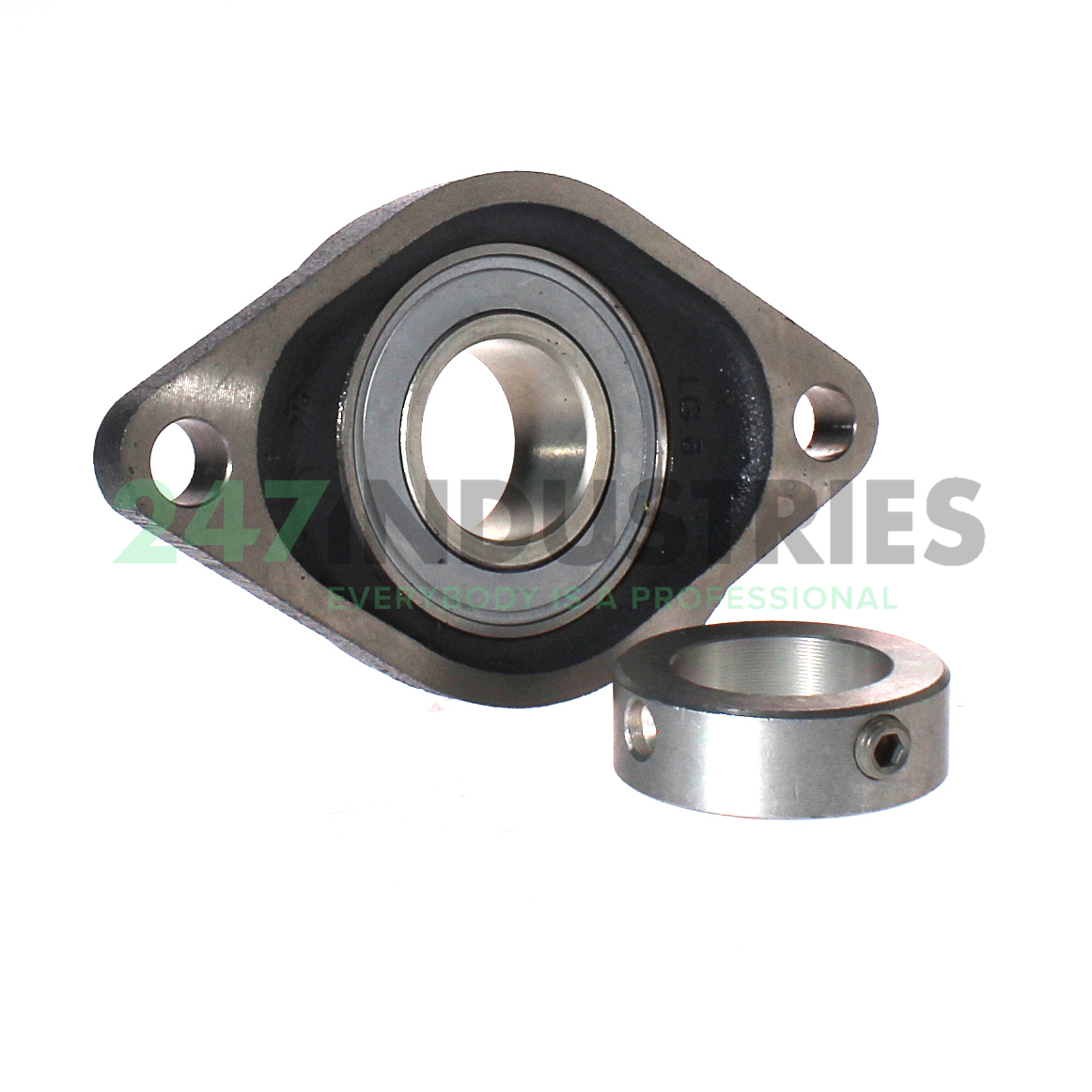

PCFT35-XL INA

Housing and Bearing (assembly)

Stock
391 pcs in stock and ready for shipment
Brand INA
Article number PCFT35-XL INA
Inside diameter 35mm
Outside diameter 155mm
Width 44,9mm
Product description

The PCFT35-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: PCFT35-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 35
  2. Outer (D) MM 155
  3. Width (B) MM 44,9
  4. Inner (d) Inch 1.378
  5. Outer (D) Inch 6.1024
  6. Width (B) Inch 1.7677
  7. Flange width (L) mm 92
  8. Height flange (H) mm 155
  9. Total height unit (U) mm 44,9

Suffix description

  1. XL X-Life

Technical details

  1. Availability 391 pcs
  2. Brand INA
  3. Item number PCFT35-XL INA
  4. Also known as 0008316030000
    GRAE35-NPP-B + CFT07
    GRAE35-XL-NPP-B + CFT07
    PCFT35
  5. EAN 4012802791341
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.197

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 15300
  2. Radial Dynamic Load Rating Cr (N) 27500
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Housing units PCFT, two-bolt flanged housing units, cast iron, eccentric locking collar, P seals
