PCCJ35 INA

Name: PCCJ35 INA
Brand: INA

€ 103,04 ex VAT

€ 124,67 in VAT

€ 103,04 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

PCCJ35 INA

Housing and Bearing (assembly)

Stock	6 pcs in stock and ready for shipment
Brand	INA
Article number	PCCJ35 INA
Inside diameter	35mm
Outside diameter	118mm
Width	36mm

Product description

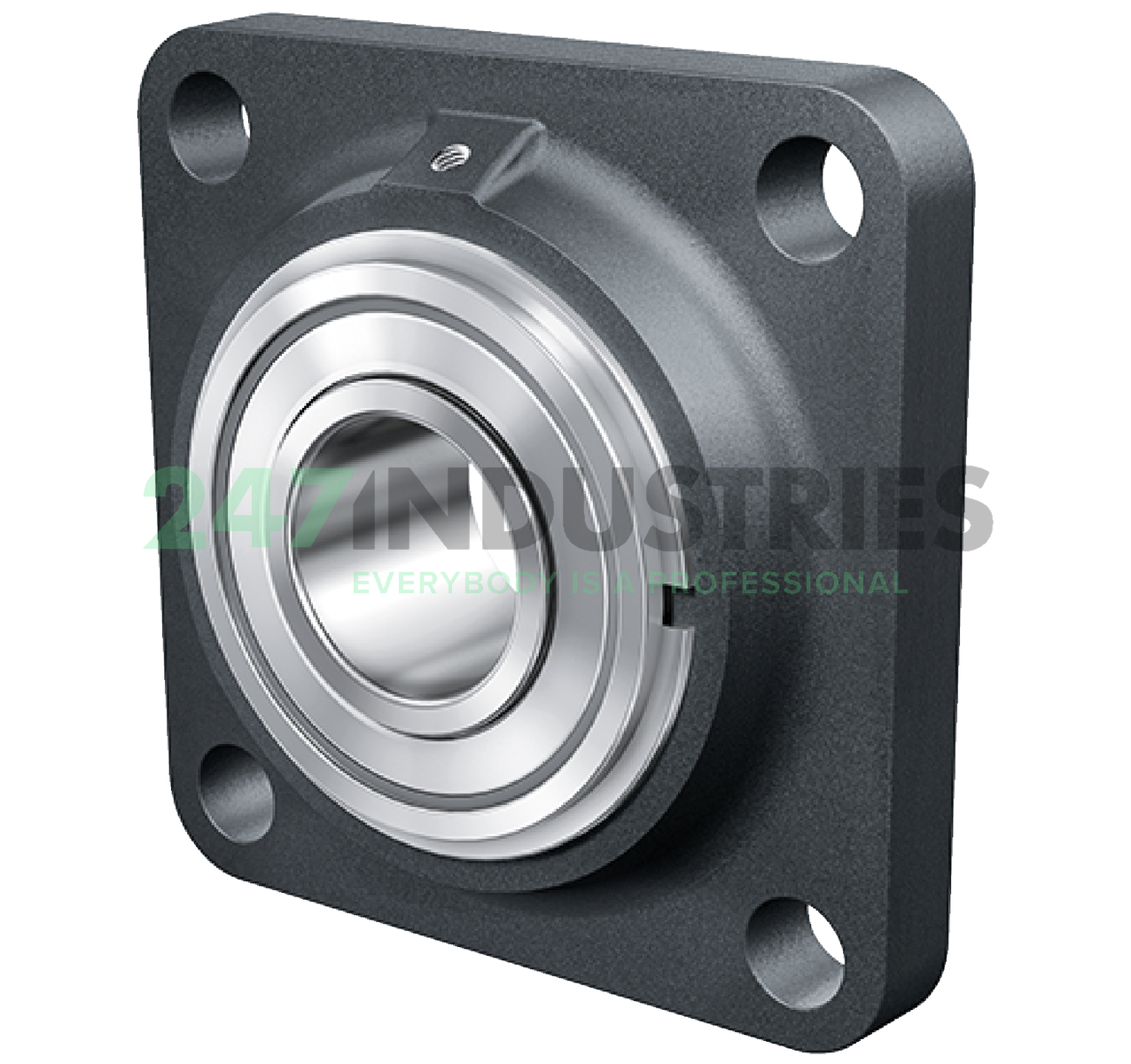

The PCCJ35 INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Email us at: help@247industries.com Response within 24h

Downloads and links

Link to manufacturer

Similar to: PCCJ35 INA

Loading similair products

Product specifications

Inside diameter 35mm
Outside diameter 118mm
Width 36mm

All dimensions

Inner (d) MM 35
Outer (D) MM 118
Width (B) MM 36
Inner (d) Inch 1.378
Outer (D) Inch 4.6457
Width (B) Inch 1.4173
Flange width (L) mm 118
Total height unit (U) mm 31,7

Technical details

Availability 6 pcs
Brand INA
Item number PCCJ35 INA
Also known as 0008905370000
G5207 2RSN + CCJ07
EAN 4012802808117
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 1.584

Product Properties

Seal 2F - Standard Seal for Y-bearings
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

Radial Static Load Rating C0r (N) 29000
Radial Dynamic Load Rating Cr (N) 39500
ECLASS number 23-05-16-02
ECLASS2 number 23-05-16-02
Medias description Housing units PCCJ, four-bolt flanged housing units, cast iron, double row angular contact ball bearing, P seals
