PBY25-XL INA

€ 20,18 ex VAT
€ 24,42 in VAT
€ 24,42 in VAT
€ 20,18 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

PBY25-XL INA

Housing unit

Stock
132 pcs in stock and ready for shipment
Brand INA
Article number PBY25-XL INA
Inside diameter 25mm
Outside diameter 108mm
Width 32mm
Product description

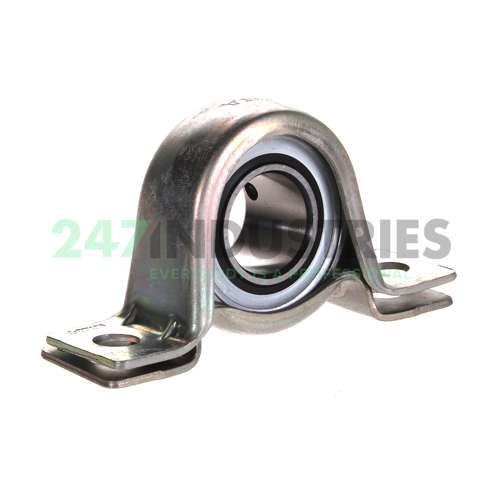

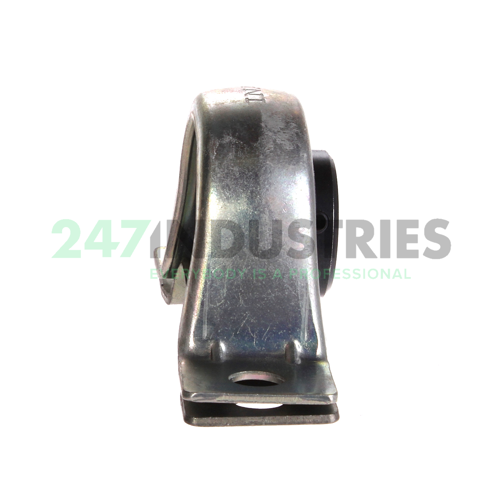

The PBY25-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Help with this product

Downloads and links

Similar to: PBY25-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25
  2. Outer (D) MM 108
  3. Width (B) MM 32
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 4.252
  6. Width (B) Inch 1.2598
  7. Length total (L) mm 108
  8. Height (H 2) mm 56,5

Suffix description

  1. XL X-Life

Technical details

  1. Availability 132 pcs
  2. Brand INA
  3. Item number PBY25-XL INA
  4. Also known as 0008721050000
    PBY25
  5. EAN 4012802795929
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.24

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 7800
  2. Radial Dynamic Load Rating Cr (N) 14900
  3. Basic static load rating, radial (C 0r) "7800.0000"
  4. Load carrying capacity (housing) (C 0r G) 1800
  5. ECLASS number 23-05-16-01
  6. ECLASS2 number 23-05-16-01
  7. Medias description Plummer block housing unit PBY..-XL, RIBB sheet metal PB

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
