PBY12-XL INA

Housing unit

Stock
44 pcs in stock and ready for shipment
Brand INA
Article number PBY12-XL INA
Inside diameter 12,00mm
Outside diameter 85,50mm
Width 27,40mm
Product description

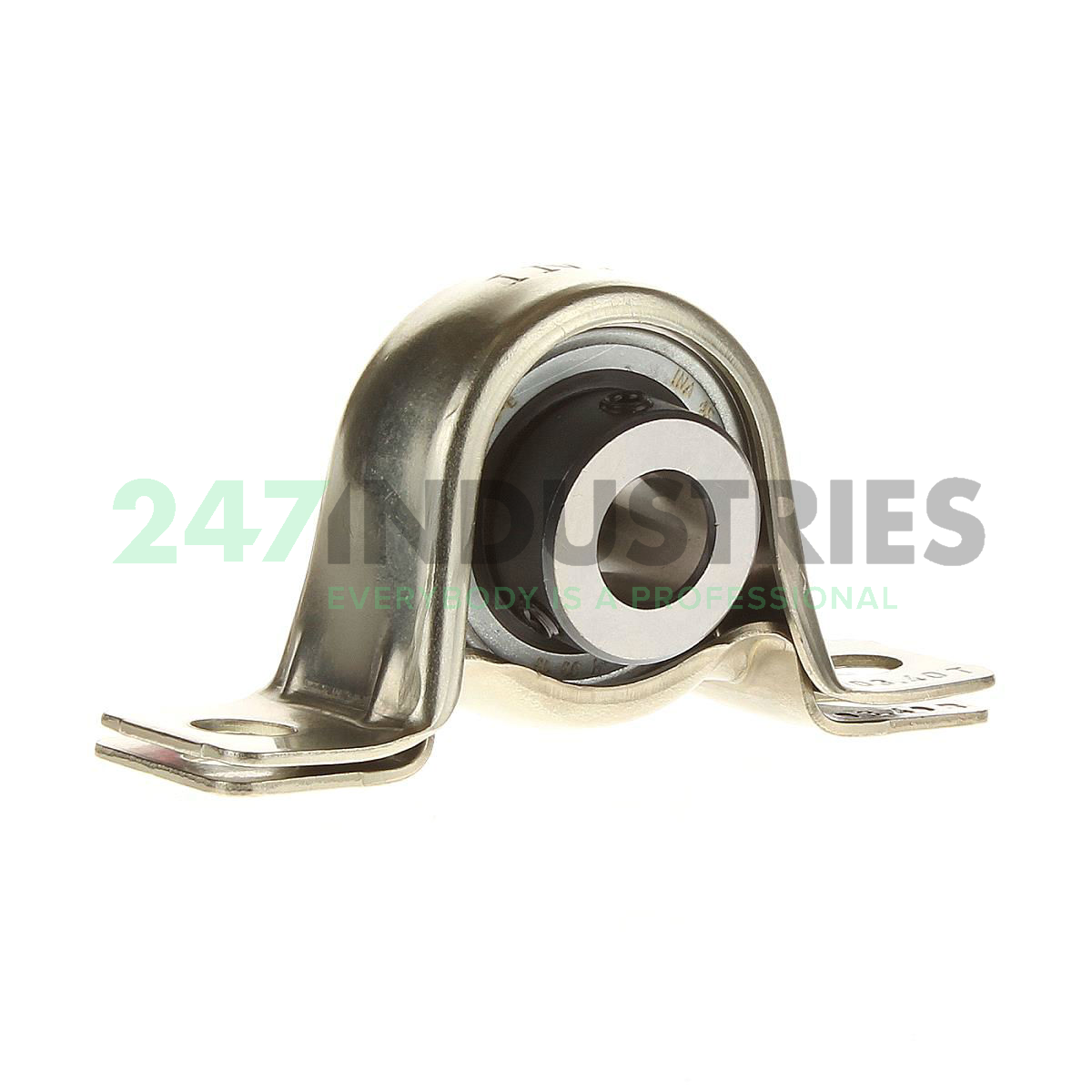

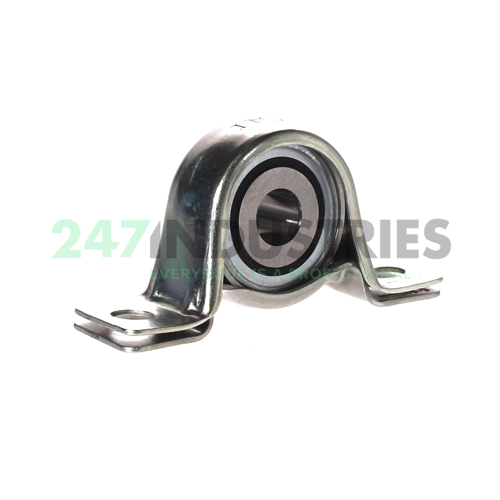

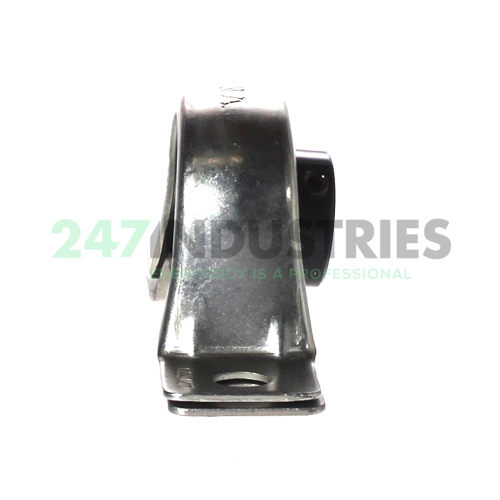

The PBY12-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: PBY12-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12,00
  2. Outer (D) MM 85,50
  3. Width (B) MM 27,40
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 3.3661
  6. Width (B) Inch 1.0787
  7. Length total (L) mm 85,70
  8. Height (H 2) mm 43,20

Suffix description

  1. XL X-Life

Technical details

  1. Availability 44 pcs
  2. Brand INA
  3. Item number PBY12-XL INA
  4. Also known as 0009169780000
    PBY12
  5. EAN 4012802806380
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.15

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 4750
  2. Radial Dynamic Load Rating Cr (N) 10100
  3. Basic static load rating, radial (C 0r) "4750.0000"
  4. Load carrying capacity (housing) (C 0r G) "1350.0000"
  5. ECLASS number 23-05-16-01
  6. ECLASS2 number 23-05-16-01
  7. Medias description Plummer block housing unit PBY..-XL, RIBB sheet metal PB
