PASE17-XL INA

Name: PASE17-XL INA
Brand: INA

€ 25,16 ex VAT

€ 30,44 in VAT

€ 25,16 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

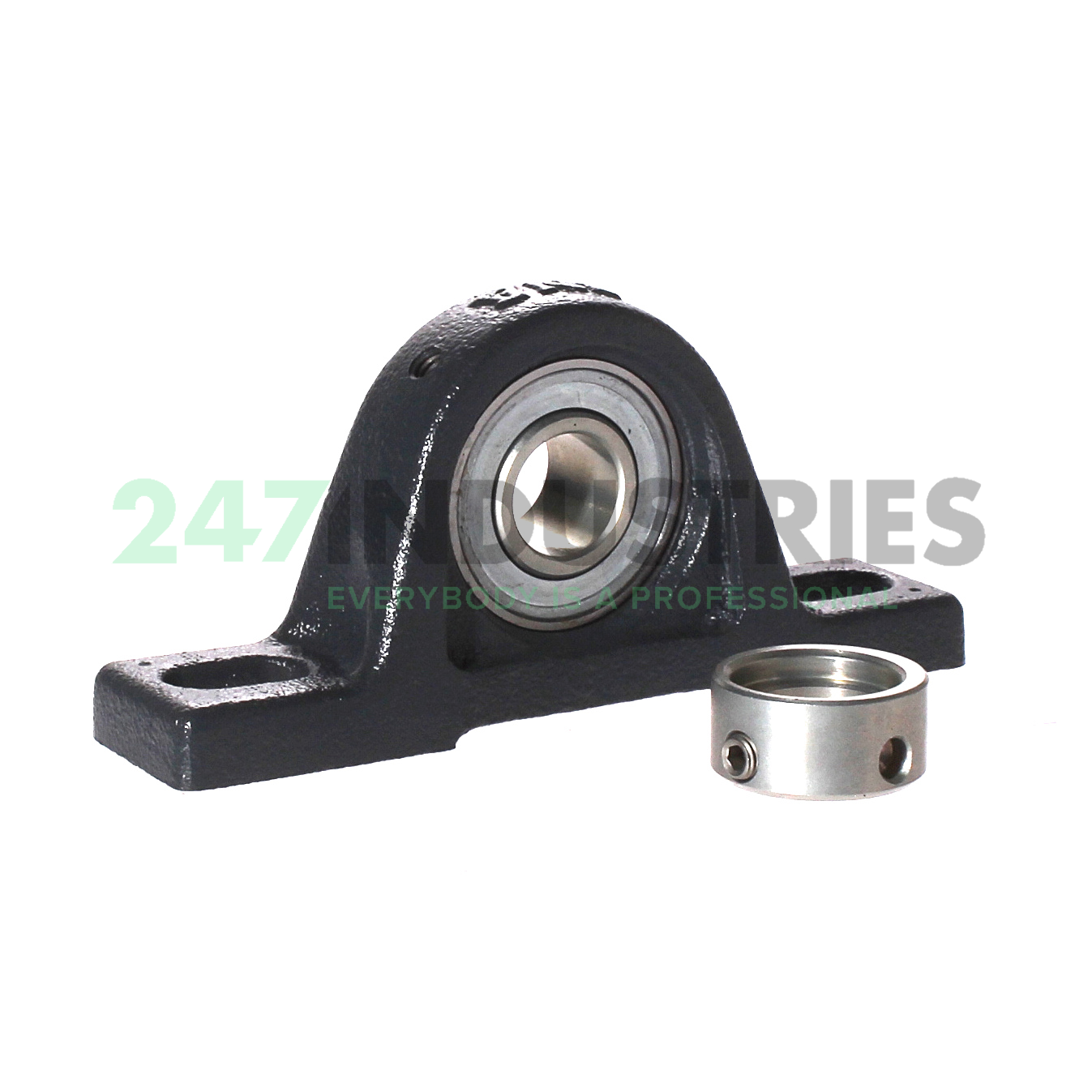

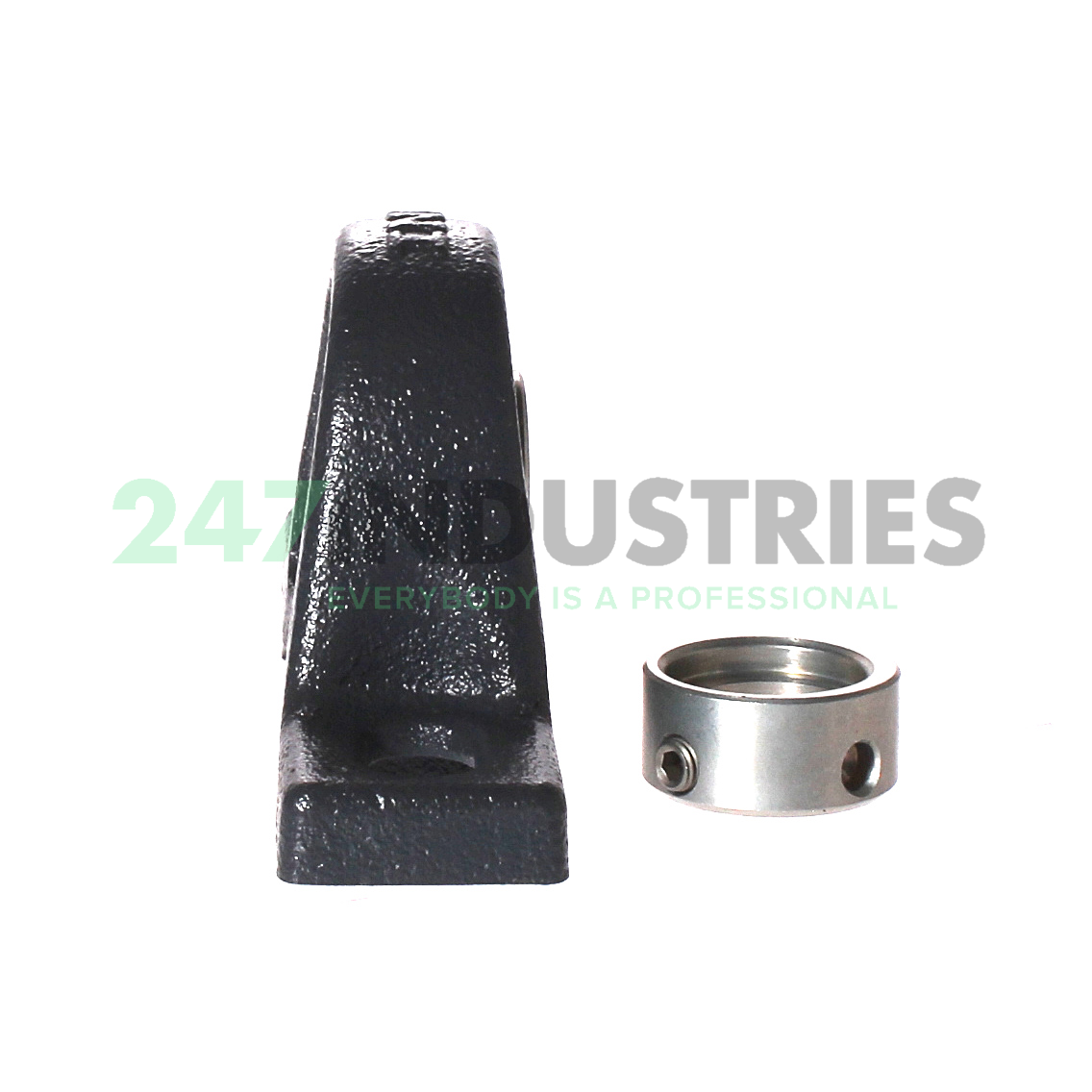

PASE17-XL INA

Housing and Bearing (assembly)

Stock	17 pcs in stock and ready for shipment
Brand	INA
Article number	PASE17-XL INA
Inside diameter	17mm
Outside diameter	127mm
Width	32mm

Product description

The PASE17-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Email us at: help@247industries.com Response within 24h

Downloads and links

Similar to: PASE17-XL INA

Loading similair products

Product specifications

Inside diameter 17mm
Outside diameter 127mm
Width 32mm

All dimensions

Inner (d) MM 17
Outer (D) MM 127
Width (B) MM 32
Inner (d) Inch 0.6693
Outer (D) Inch 5
Width (B) Inch 1.2598
Length total (L) mm 125
Height (H 2) mm 57

Suffix description

XL X-Life

Technical details

Availability 17 pcs
Brand INA
Item number PASE17-XL INA
Also known as 0008278780000
PASE17
SY17FM
EAN 4012802793482
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 0.499

Product Properties

Seal 2F - Standard Seal for Y-bearings
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

ECLASS number 23-05-16-01
ECLASS2 number 23-05-16-01
Medias description Plummer block housing units PASE, cast iron housing, radial insert ball bearing with eccentric locking collar, P seals
