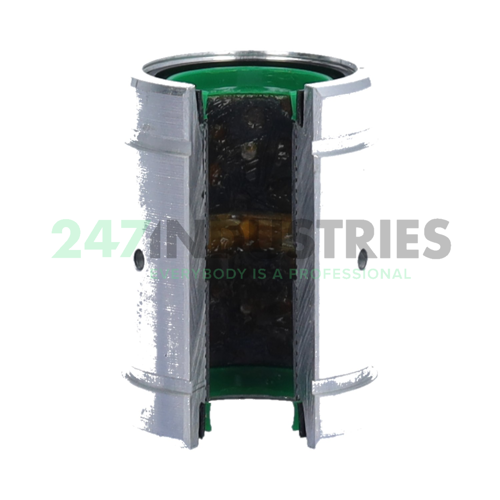

PABO20-PP-AS INA

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 32,00
3. Width (B) MM 45,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.2598
6. Width (B) Inch 1.7717
7. Length (L) mm 45,00
8. Outer diameter (D) mm 32,00

Suffix description

1. PP Lip Seal On Both Sides Of Bearing
2. AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Technical details

1. Availability 6 pcs
2. Brand INA
3. Item number PABO20-PP-AS INA
4. Also known as 0016635930000

5. EAN 4012802061574
6. Category Linear Plain Bearing

Weight and Dimensions

1. Weight (kg) 0.058

Product Properties

1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

1. ECLASS number 23-30-01-01
2. ECLASS2 number 23-30-01-01
