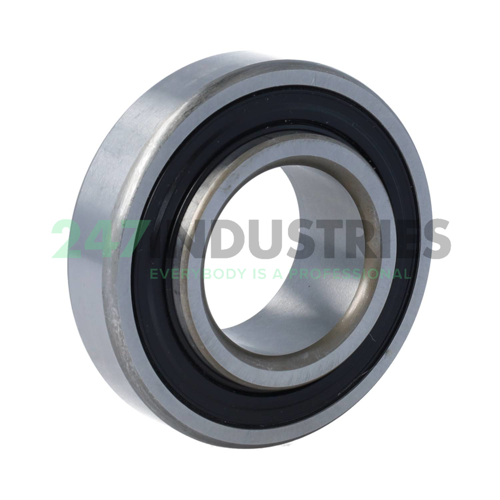

P1-35BCD07S1 C/46 Nachi

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 26
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.0236

Suffix description

1. S1 Bearing Rings Or Washers Dimensionally Stabilized For Use At Operating Temperatures Up To +200°C (392°F)
2. C/46 Unknown

Technical details

1. Availability 0 pcs
2. Brand Nachi
3. Item number P1-35BCD07S1 C/46 Nachi
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.337

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Special Internal Clearance
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
