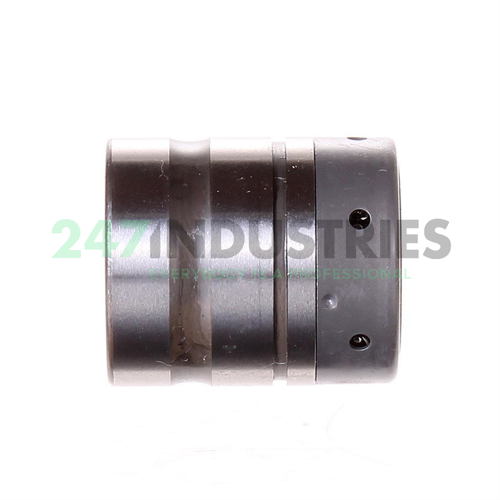

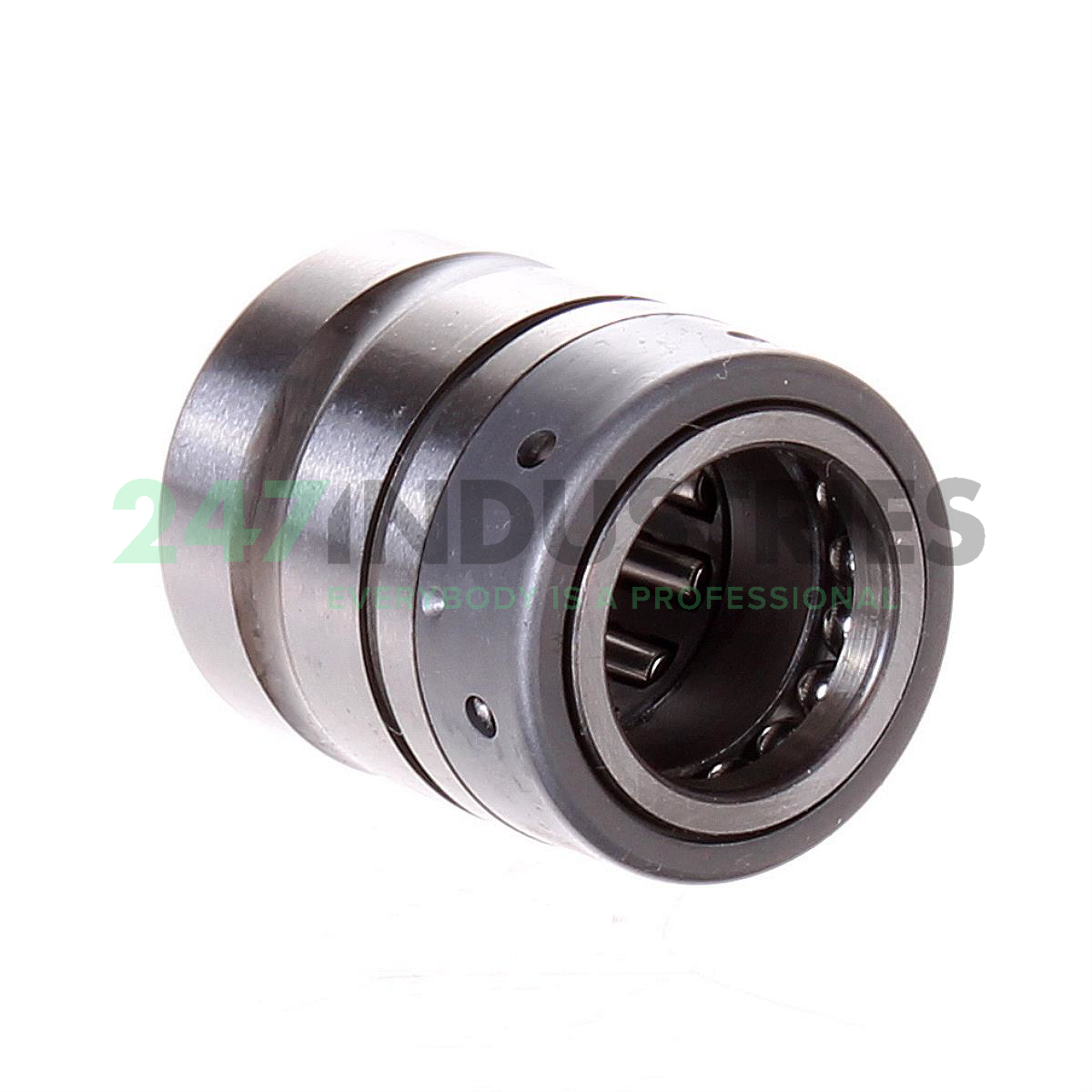

NX15-XL INA

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 24
3. Width (B) MM 28
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 0.9449
6. Width (B) Inch 1.1024
7. Height (C) mm 28

Suffix description

1. XL X-Life

Technical details

1. Availability 36 pcs
2. Brand INA
3. Item number NX15-XL INA
4. Also known as 0507785790000
   NX15

5. EAN 4012802735727
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.048

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 12700
2. Radial Dynamic Load Rating Cr (N) 12100
3. Axial Static Load Rating C0a (N) 10400
4. Axial Dynamic Load Rating Ca (N) 5600
5. Limiting speed (n G) 8000
6. ECLASS number 23-05-12-02
7. ECLASS2 number 23-05-12-02
8. Medias description Needle roller/axial ball bearings NX, single direction axial component, for oil lubrication

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
