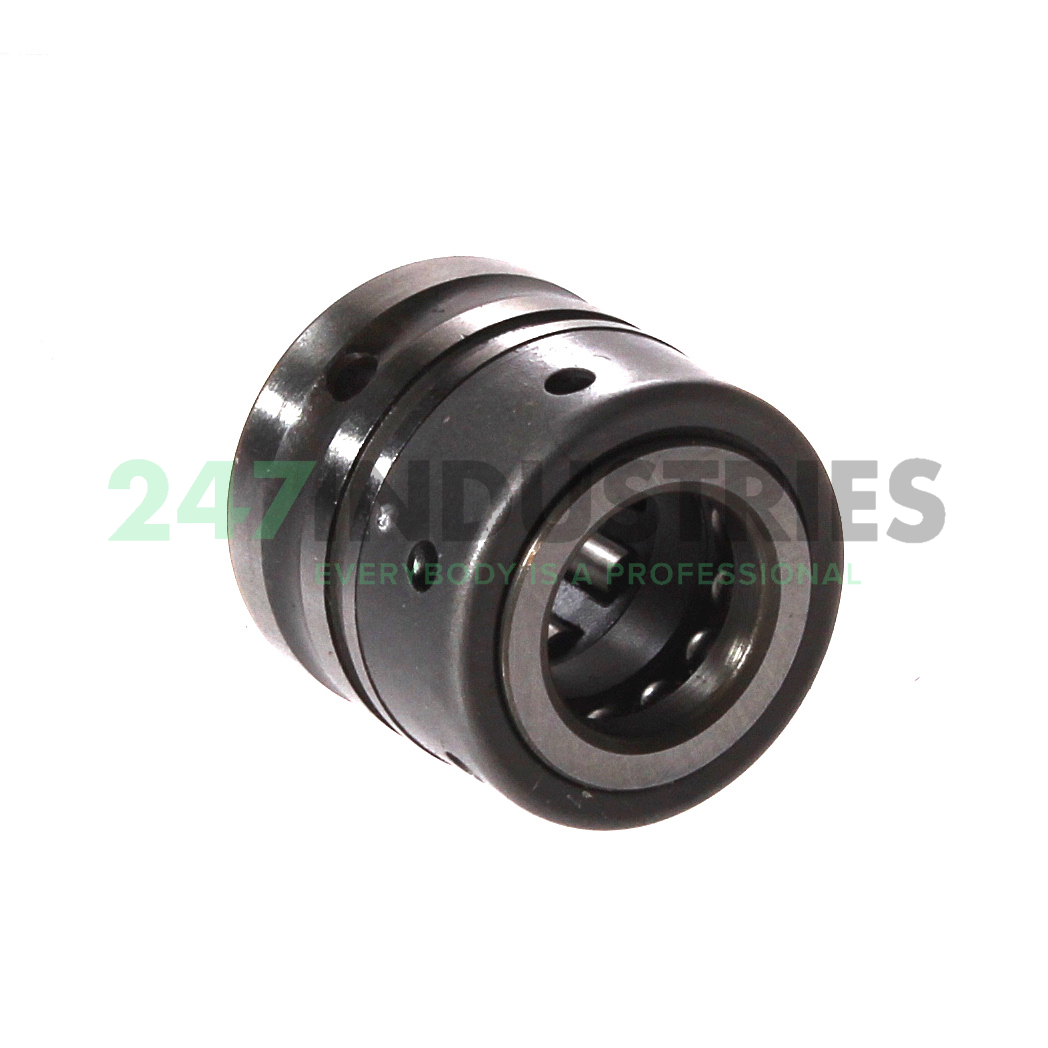

NX10-XL INA

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 19
3. Width (B) MM 18
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 0.748
6. Width (B) Inch 0.7087
7. Height (C) mm 18

Suffix description

1. XL X-Life

Technical details

1. Availability 58 pcs
2. Brand INA
3. Item number NX10-XL INA
4. Also known as 0507785520000
   NX10

5. EAN 4012802735697
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.025

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 3700
2. Radial Dynamic Load Rating Cr (N) 5000
3. Axial Static Load Rating C0a (N) 7200
4. Axial Dynamic Load Rating Ca (N) 4600
5. Limiting speed (n G) 11000
6. ECLASS number 23-05-12-02
7. ECLASS2 number 23-05-12-02
8. Medias description Needle roller/axial ball bearings NX, single direction axial component, for oil lubrication
