NUTR2562-A INA

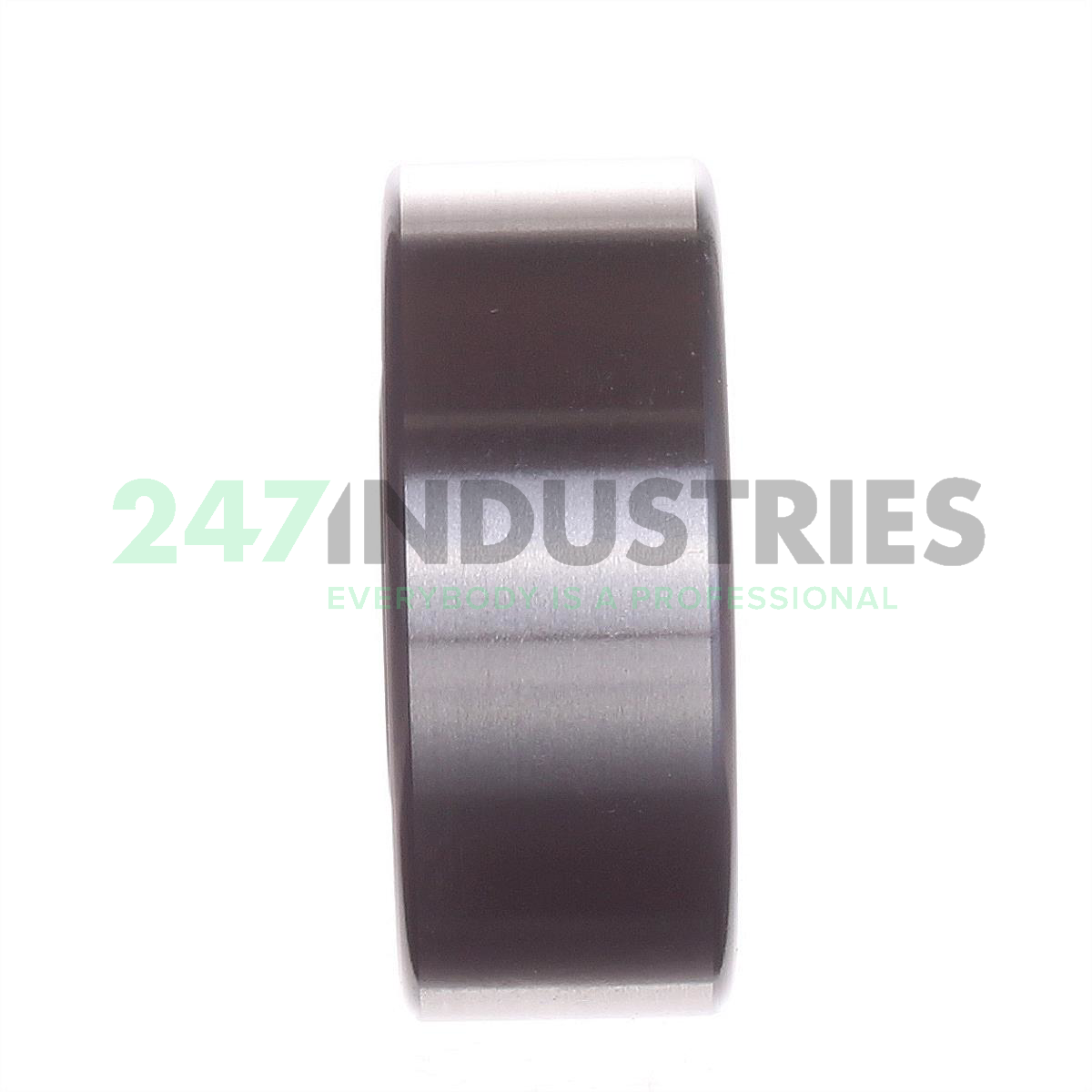

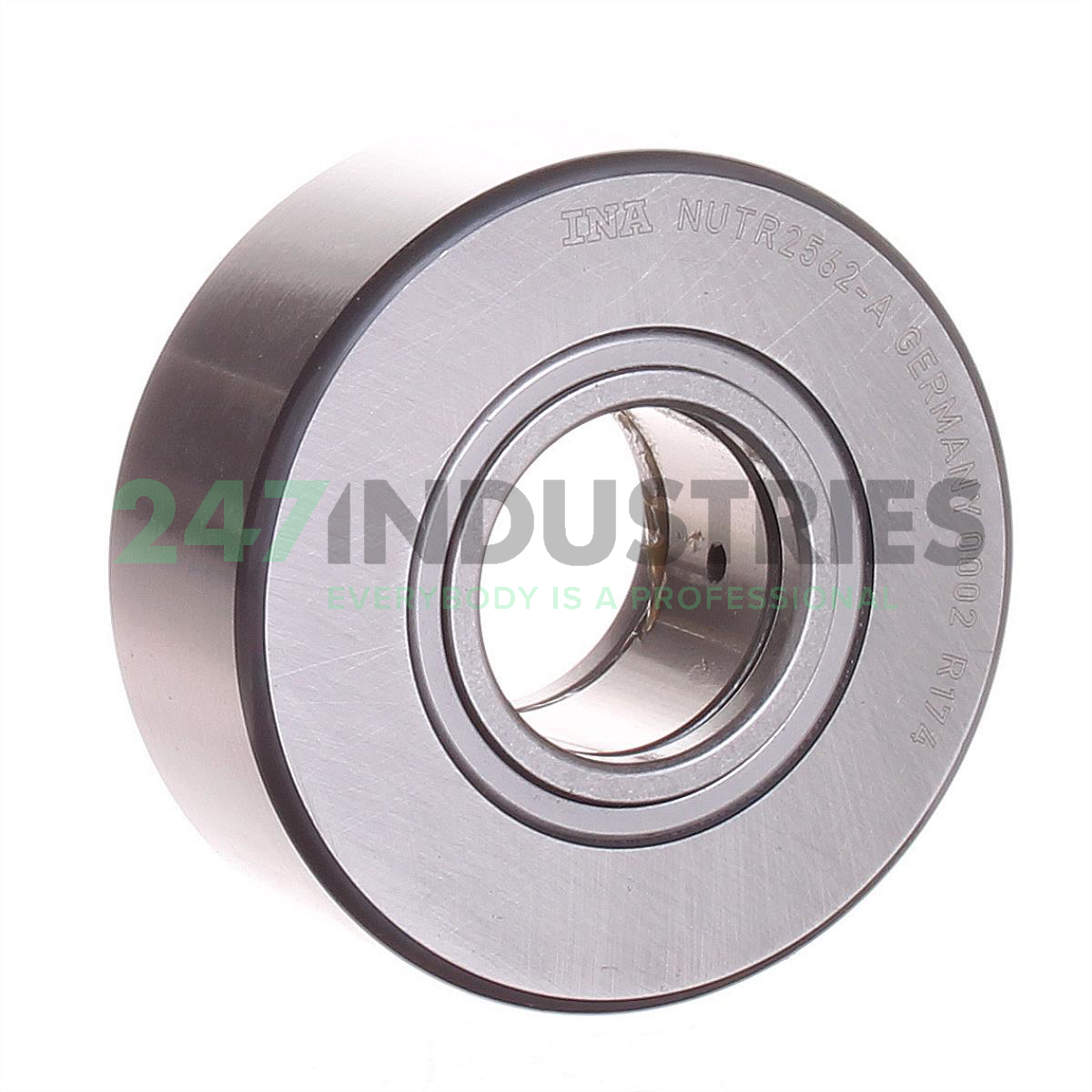

Yoke type full complement track roller with cylindrical rollers

Stock
59 pcs in stock and ready for shipment
Brand INA
Article number NUTR2562-A INA
Width 24mm
Product description

The NUTR2562-A INA is a track roller or support roller with cylindrical rollers. These rolling elements combine a high load capacity with reasonable shock resistance. Track rollers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Axial loads due to alignment errors or misalignment can be absorbed in both directions. Yoke type track rollers are suitable for mounting on a shaft. They are not mounted in a housing bore, but a flat (counter) track provides support.

The NUTR2562-A INA has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this track roller radially highly loadable. Full complement track rollers are also more shock-resistant than track rollers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of track rollers include conveyor systems, linear guidance systems, and cam mechanisms.

Read more Show less
Help with this product

Similar to: NUTR2562-A INA

Loading similair products

Product specifications

All dimensions

  1. Width (B) MM 24
  2. Width (B) Inch 0.9449

Suffix description

  1. A Alteration In Internal Construction. Identical To Old Notation

Technical details

  1. Availability 59 pcs
  2. Brand INA
  3. Item number NUTR2562-A INA
  4. Also known as 0095960460000
  5. EAN 4012802420401
  6. Category Support Roller

Weight and Dimensions

  1. Weight (kg) 0.45

Product Properties

  1. Seal 2LB - Two Labyrinth Seals
  2. Running Surface Standard

Data from Schaeffler (medias)

  1. Medias description Yoke type track rollers NUTR, full complement cylindrical roller set, with axial guidance, labyrinth seals on both sides
