NUP410-XL-M1-C3 FAG

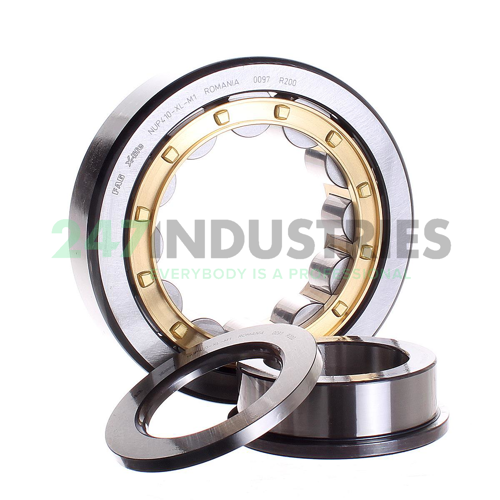

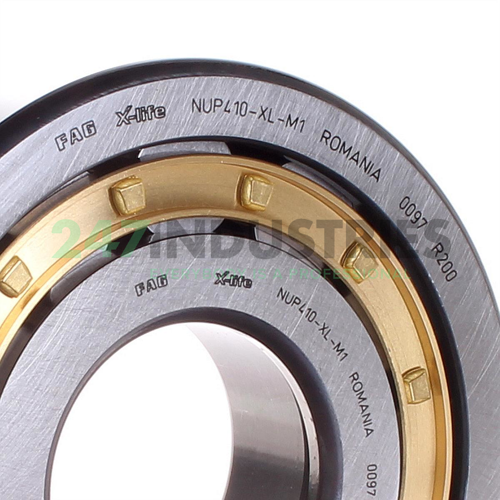

The NUP410-XL-M1-C3 FAG bearing is a single row cylindrical roller bearing with a brass cage, a cylindrical bore and no seal.

Stock
1 pc in stock and ready for shipment
Brand FAG
Article number NUP410-XL-M1-C3 FAG
Inside diameter 50,00mm
Outside diameter 130,00mm
Width 31,00mm
Product description

Category information NUP410-XL-M1-C3 FAG

Single row cylindrical roller bearings with cage, like the NUP410-XL-M1-C3 FAG, are units comprising solid inner and outer rings together with cylindrical roller and cage assemblies.

The outer rings have rigid ribs on both sides or no ribs, the inner rings have one or two rigid ribs or are designed without ribs. The cage prevents the cylindrical rollers from coming into contact with each other during rolling.

The cage type bearings are very rigid, can support high radial loads and, due to the cage, are suitable for higher speeds than the full complement designs.

The bearings are separable and are therefore easier to fit and dismantle. Both bearing rings can be given a tight fit by this process.

Applications of NUP410-XL-M1-C3 FAG

  • Heavy industries, steel applications
  • Power transmission, gearboxes
  • Driven machines and construction machinery
  • Wind power and gearbox applications

X-LIFE: Longer rating and operating life of NUP410-XL-M1-C3 FAG

The NUP410-XL-M1-C3 FAG is according to the latest X-life quality from Schaeffler. They replace, and are interchangeable, with the NUP410-M1-C3 FAG and NUP410M1.C3 FAG.

Bearings of X-life quality have, for example, lower roughness Ra and higher geometrical accuracy of the raceways than comparable designs that are not X-life. As a result, these bearings have higher load carrying capacity and longer life for the same dimensioning. In certain applications, this means that a smaller bearing arrangement can be designed.


Improved X-life product features
  • Optimized internal construction
  • Optimized surface geometry
  • Better and more even internal load distribution

Technical advantages X-life products
  • Up to 20 % higher dynamic load rating Cr
  • Up to 70 % longer rating life
  • Up to 50 % less friction

Why choose X-life quality?
  • Significantly longer rating and operating life at the same load
  • Higher performance with the same rating life
  • Downsizing possible, higher power density
  • Improved price/performance ratio
  • Interchangeable: Same dimensions as standard bearings

Product specifications NUP410-XL-M1-C3 FAG

NUP410-XL-M1-C3 FAG is a locating bearing

Cylindrical roller bearings NUP are locating bearings. They can support not only high radial forces but also axial forces in both directions and can therefore guide shafts axially in both directions.

Bearings with rib washer: Type NUP has two ribs on the outer ring and one rigid rib on the inner ring. A loose rib washer is fitted on the opposite side.

Sealing of NUP410-XL-M1-C3 FAG

The bearings are supplied without seals.

Lubrication of NUP410-XL-M1-C3 FAG

They can be lubricated from the end faces using grease or oil.

Operating temperature of NUP410-XL-M1-C3 FAG

Single row cylindrical roller bearings with cage can be used at operating temperatures from –30 °C to +150 °C.

Cage of NUP410-XL-M1-C3 FAG

The suffix M1 indicates bearings with brass cages guided by rollers.

Suffix info NUP410-XL-M1-C3 FAG

  • C3: Radial internal clearance larger than normal
  • M1: Solid brass cage, two-piece, roller-guided
  • XL: Longer rating and operating life, more reliable and more energy-efficient than previous types.
Read more Show less

Similar to: NUP410-XL-M1-C3 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 50,00
  2. Outer (D) MM 130,00
  3. Width (B) MM 31,00

Technical details

  1. Availability 1 pc
  2. Brand FAG
  3. Item number NUP410-XL-M1-C3 FAG
  4. Technical details (XL-M1-C3) XL=X-Life. M1=Solid Brass Cage, Two Piece, Roller Guided. C3=Internal Clearance Larger Than Normal.
  5. Also known as 4012801391184
    NUP410-M1-C3
  6. Category Cylindrical Roller Bearing Single Row
  7. Weight (kg) 2.08
  8. Manufacturer Part Number (MPN) NUP410-XL-M1-C3
  9. Bore C - Cylindrical Bore
  10. Seal No Seal
  11. Cage Type M - Brass Cage
  12. Radial Internal Play C3 Internal Play (Higher than Cn)
  13. Precision Standard Precision
  14. Heat Stabilization No Heat Stabilization - Temperatures up to 120°C

Downloads

  1. 20180620012948_Brochure_Cylindrical-Roller-Bearings_Schaeffler.pdf 20180620012948_Brochure_Cylindrical-Roller-Bearings_Schaeffler.pdf
  2. 20180620012948_Brochure_X-life_Schaeffler.pdf 20180620012948_Brochure_X-life_Schaeffler.pdf
