NUP409-XL-M1A-C4 FAG

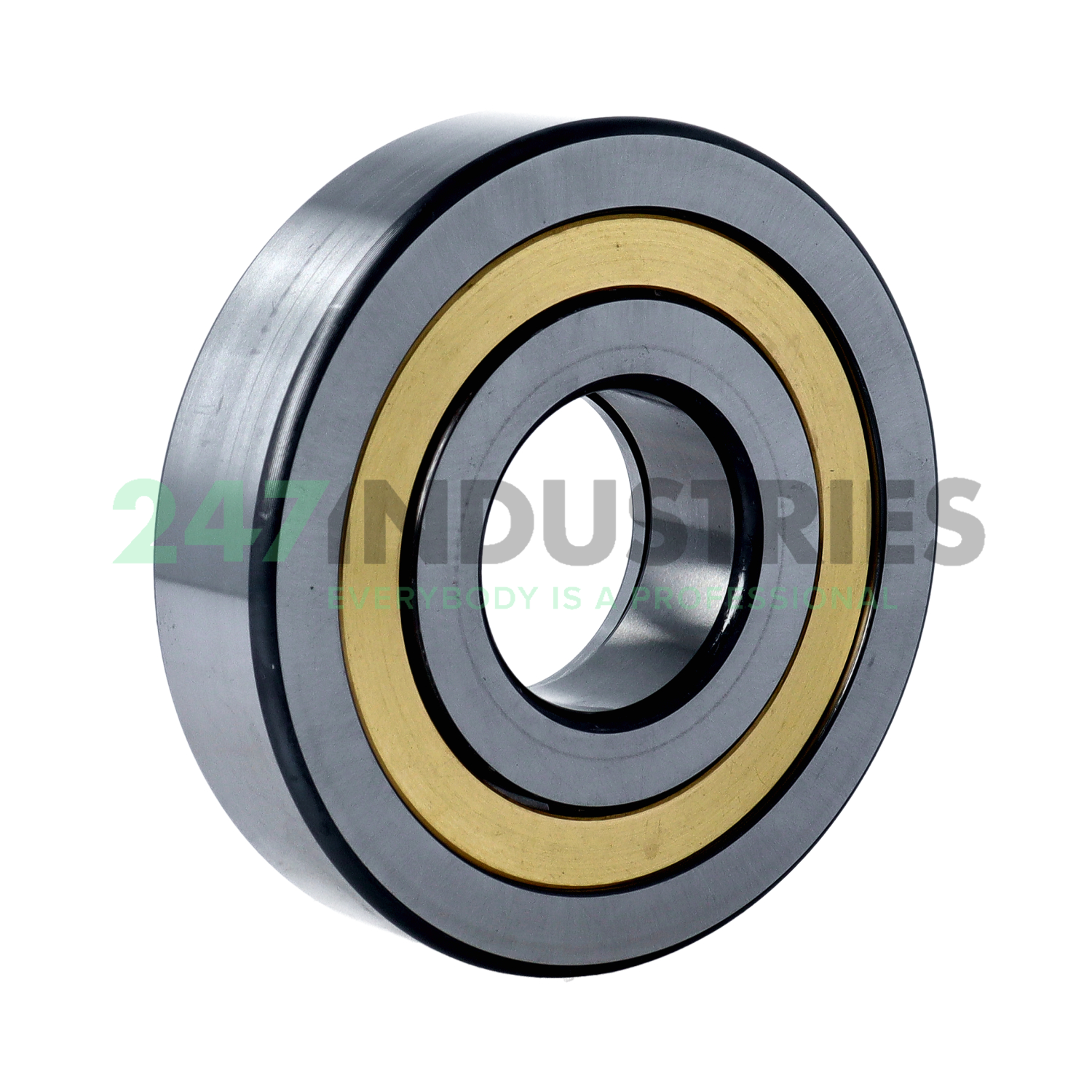

The NUP409-XL-M1A-C4 FAG bearing is a single row cylindrical roller bearing with a brass cage (centered on outer ring), a cylindrical bore and no seal.

Stock
not in stock
Brand FAG
Article number NUP409-XL-M1A-C4 FAG
Inside diameter 45mm
Outside diameter 120mm
Width 29mm
Product description

Category information NUP409-XL-M1A-C4 FAG

Single row cylindrical roller bearings with cage, like the NUP409-XL-M1A-C4 FAG, are units comprising solid inner and outer rings together with cylindrical roller and cage assemblies.

The outer rings have rigid ribs on both sides or no ribs, the inner rings have one or two rigid ribs or are designed without ribs. The cage prevents the cylindrical rollers from coming into contact with each other during rolling.

The cage type bearings are very rigid, can support high radial loads and, due to the cage, are suitable for higher speeds than the full complement designs.

The bearings are separable and are therefore easier to fit and dismantle. Both bearing rings can be given a tight fit by this process.

Applications of NUP409-XL-M1A-C4 FAG

  • Heavy industries, steel applications
  • Power transmission, gearboxes
  • Driven machines and construction machinery
  • Wind power and gearbox applications

X-LIFE: Longer rating and operating life of NUP409-XL-M1A-C4 FAG

The NUP409-XL-M1A-C4 FAG is according to the latest X-life quality from Schaeffler. They replace, and are interchangeable, with the NUP409M1A.C4 FAG and NUP409-M1A-C4 FAG.

Bearings of X-life quality have, for example, lower roughness Ra and higher geometrical accuracy of the raceways than comparable designs that are not X-life. As a result, these bearings have higher load carrying capacity and longer life for the same dimensioning. In certain applications, this means that a smaller bearing arrangement can be designed.


Improved X-life product features
  • Optimized internal construction
  • Optimized surface geometry
  • Better and more even internal load distribution

Technical advantages X-life products
  • Up to 20 % higher dynamic load rating Cr
  • Up to 70 % longer rating life
  • Up to 50 % less friction

Why choose X-life quality?
  • Significantly longer rating and operating life at the same load
  • Higher performance with the same rating life
  • Downsizing possible, higher power density
  • Improved price/performance ratio
  • Interchangeable: Same dimensions as standard bearings

Product specifications NUP409-XL-M1A-C4 FAG

NUP409-XL-M1A-C4 FAG is a locating bearing

Cylindrical roller bearings NUP are locating bearings. They can support not only high radial forces but also axial forces in both directions and can therefore guide shafts axially in both directions.

Bearings with rib washer: Type NUP has two ribs on the outer ring and one rigid rib on the inner ring. A loose rib washer is fitted on the opposite side.

Sealing of NUP409-XL-M1A-C4 FAG

The bearings are supplied without seals.

Lubrication of NUP409-XL-M1A-C4 FAG

They can be lubricated from the end faces using grease or oil.

Operating temperature of NUP409-XL-M1A-C4 FAG

Single row cylindrical roller bearings with cage can be used at operating temperatures from –30 °C to +150 °C.

Suffix info NUP409-XL-M1A-C4 FAG

  • C4: Radial internal clearance larger than C3
  • M1A: Solid brass cage, two-piece, rib-guided on outer ring
  • XL: Longer rating and operating life, more reliable and more energy-efficient than previous types.
Read more Show less

Similar to: NUP409-XL-M1A-C4 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 45
  2. Outer (D) MM 120
  3. Width (B) MM 29
  4. Inner (d) Inch -
  5. Outer (D) Inch -
  6. Width (B) Inch -

Technical details

  1. Availability 0 pcs
  2. Brand FAG
  3. Item number NUP409-XL-M1A-C4 FAG
  4. Technical details (XL-M1A-C4) XL=X-Life. M1A=(Segment Cage, Code MA)=Solid Brass Cage, Two-Piece, Rib-Guided On Outer Ring. C4=Bearing Internal Clearance Greater Than C3.
  5. Also known as NUP409-M1A-C4
  6. Category Cylindrical Roller Bearing Single Row
  7. Weight (kg) 1.88
  8. Manufacturer Part Number (MPN) NUP409-XL-M1A-C4
  9. Bore C - Cylindrical Bore
  10. Seal No Seal
  11. Cage Type MA - Brass Cage, Centered on Outer Ring
  12. Radial Internal Play C4 Internal Play (Higher than C3)
  13. Precision Standard Precision
  14. Heat Stabilization No Heat Stabilization - Temperatures up to 120°C

Downloads

  1. 20180620011910_Brochure_X-life_Schaeffler.pdf 20180620011910_Brochure_X-life_Schaeffler.pdf
  2. 20180620011910_Brochure_Cylindrical-Roller-Bearings_Schaeffler.pdf 20180620011910_Brochure_Cylindrical-Roller-Bearings_Schaeffler.pdf
