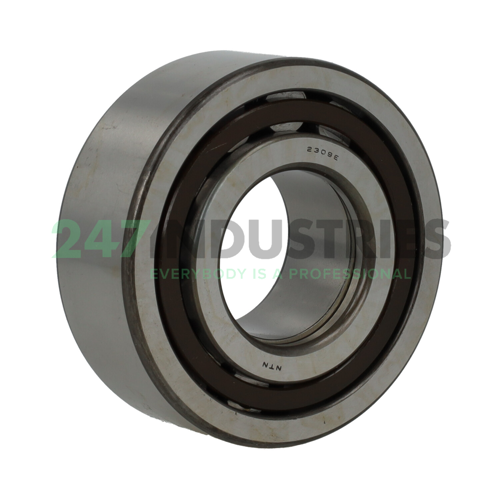

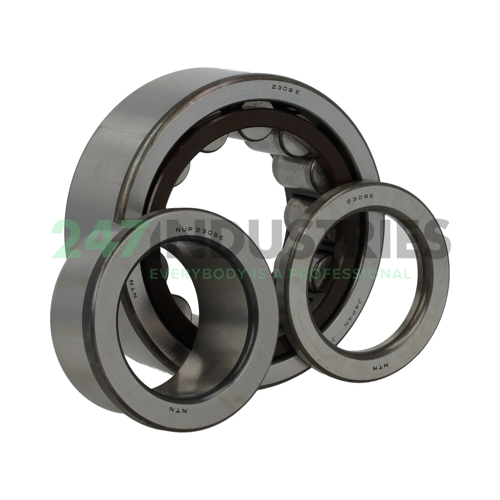

NUP2309ET2 NTN

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 36
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 1.4173

Suffix description

1. E High Capacity Design,
2. T2 Glass Fibre Reinforced Polyamide Cage

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number NUP2309ET2 NTN
4. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.35

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
