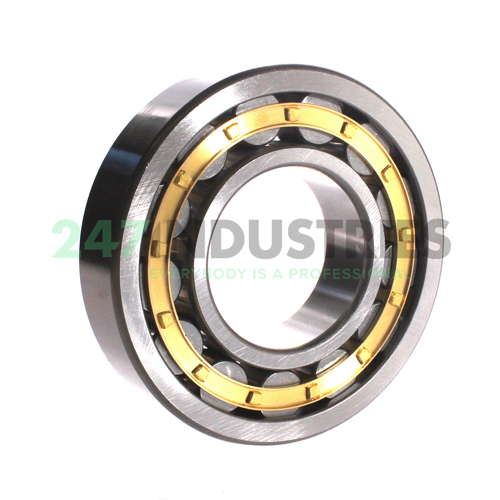

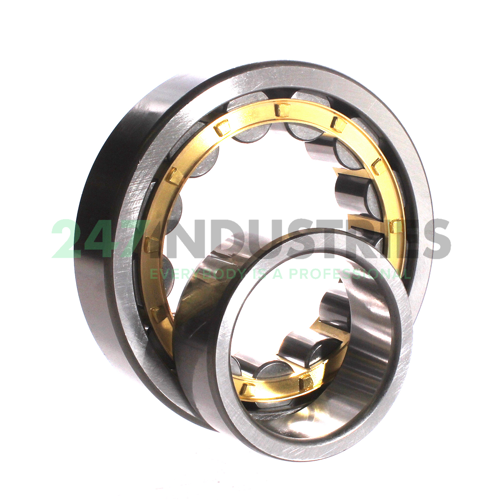

NU315EM ZWZ

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 160
3. Width (B) MM 37
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 6.2992
6. Width (B) Inch 1.4567

Suffix description

1. E Single Row Cylindrical Roller Bearing With Higher Load Rating
2. M Machined Brass Cage, Located On The Rolling Elements

Technical details

1. Availability 0 pcs
2. Brand ZWZ
3. Item number NU315EM ZWZ
4. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 3.66

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
