NU310-E-XL-JP3-C3 FAG

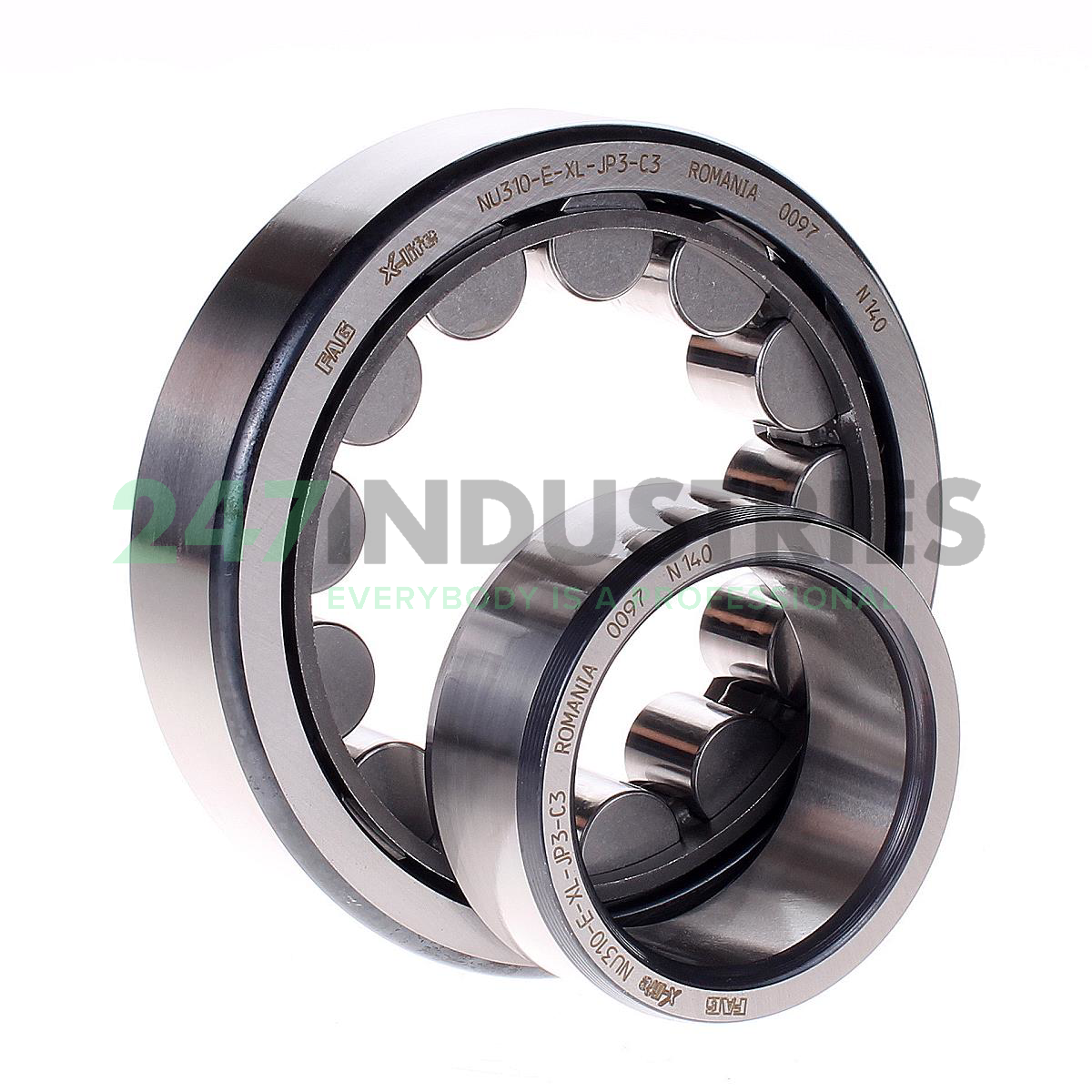

The NU310-E-XL-JP3-C3 FAG bearing is a single row cylindrical roller bearing with a steel or standard cage, a cylindrical bore and no seal.

Stock
1 pc in stock and ready for shipment
Brand FAG
Article number NU310-E-XL-JP3-C3 FAG
Inside diameter 50,00mm
Outside diameter 110,00mm
Width 27,00mm
Product description

Category information NU310-E-XL-JP3-C3 FAG

Single row cylindrical roller bearings with cage, like the NU310-E-XL-JP3-C3 FAG, are units comprising solid inner and outer rings together with cylindrical roller and cage assemblies.

The outer rings have rigid ribs on both sides or no ribs, the inner rings have one or two rigid ribs or are designed without ribs. The cage prevents the cylindrical rollers from coming into contact with each other during rolling.

The cage type bearings are very rigid, can support high radial loads and, due to the cage, are suitable for higher speeds than the full complement designs.

The bearings are separable and are therefore easier to fit and dismantle. Both bearing rings can be given a tight fit by this process.

Applications of NU310-E-XL-JP3-C3 FAG

  • Heavy industries, steel applications
  • Power transmission, gearboxes
  • Driven machines and construction machinery
  • Wind power and gearbox applications

X-LIFE: Longer rating and operating life of NU310-E-XL-JP3-C3 FAG

The NU310-E-XL-JP3-C3 FAG is according to the latest X-life quality from Schaeffler. They replace, and are interchangeable, with the NU310-E-JP3-C3 FAG and NU310E.JP3.C3 FAG.

Bearings of X-life quality have, for example, lower roughness Ra and higher geometrical accuracy of the raceways than comparable designs that are not X-life. As a result, these bearings have higher load carrying capacity and longer life for the same dimensioning. In certain applications, this means that a smaller bearing arrangement can be designed.


Improved X-life product features
  • Optimized internal construction
  • Optimized surface geometry
  • Better and more even internal load distribution

Technical advantages X-life products
  • Up to 20 % higher dynamic load rating Cr
  • Up to 70 % longer rating life
  • Up to 50 % less friction

Why choose X-life quality?
  • Significantly longer rating and operating life at the same load
  • Higher performance with the same rating life
  • Downsizing possible, higher power density
  • Improved price/performance ratio
  • Interchangeable: Same dimensions as standard bearings

Product specifications NU310-E-XL-JP3-C3 FAG

Bearings with the suffix E have a higher capacity roller set and are thus designed for very high load carrying capacity.

NU310-E-XL-JP3-C3 FAG is a non-locating bearing

Cylindrical roller bearings NU are non-locating bearings and can support radial forces only. In series NU, the outer ring has two ribs, while the inner ring has no ribs.

Axial displacement: The outer and inner ring can be axially displaced relative to each other from the central position by the value “s”.

Bearings with L-section ring: Non-locating bearings NU can be combined with an L-section ring HJ to form a semi-locating bearing unit. They must not be installed with two L-section rings (due to the risk of jamming).

Sealing of NU310-E-XL-JP3-C3 FAG

The bearings are supplied without seals.

Lubrication of NU310-E-XL-JP3-C3 FAG

They can be lubricated from the end faces using grease or oil.

Operating temperature of NU310-E-XL-JP3-C3 FAG

Single row cylindrical roller bearings with cage can be used at operating temperatures from –30 °C to +150 °C.

Suffix info NU310-E-XL-JP3-C3 FAG

  • C3: Radial internal clearance larger than normal
  • E :Increased capacity design
  • JP3: Sheet steel window cage, single-piece, roller-guided
  • XL: Longer rating and operating life, more reliable and more energy-efficient than previous types.
Read more Show less

Similar to: NU310-E-XL-JP3-C3 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 50,00
  2. Outer (D) MM 110,00
  3. Width (B) MM 27,00

Technical details

  1. Availability 1 pc
  2. Brand FAG
  3. Item number NU310-E-XL-JP3-C3 FAG
  4. Technical details (E-XL-JP3-C3) E=Increased Load Capacity. XL=X-Life. JP3=Applications With Cylindrical Roller Bearings With A Bearing Outer Diameter >90mm Wil Contain JP3 Sheet Steel Cage With Optimized Sheet Thickness, Improved Roller Guidance And Roller Retention, And Increased Oil Or Grease Flow. C3=Internal Clearance Larger Than Normal.
  5. Also known as 4012802149517
    NU310-E-JP3-C3
  6. Category Cylindrical Roller Bearing Single Row
  7. Weight (kg) 1.15
  8. Manufacturer Part Number (MPN) NU310-E-XL-JP3-C3
  9. Bore C - Cylindrical Bore
  10. Seal No Seal
  11. Cage Type S - Steel or Standard Cage
  12. Radial Internal Play C3 Internal Play (Higher than Cn)
  13. Precision Standard Precision
  14. Heat Stabilization No Heat Stabilization - Temperatures up to 120°C

Downloads

  1. 20180612043043_Brochure_X-life_Schaeffler.pdf 20180612043043_Brochure_X-life_Schaeffler.pdf
  2. 20180612043043_Brochure_Cylindrical-Roller-Bearings_Schaeffler.pdf 20180612043043_Brochure_Cylindrical-Roller-Bearings_Schaeffler.pdf
