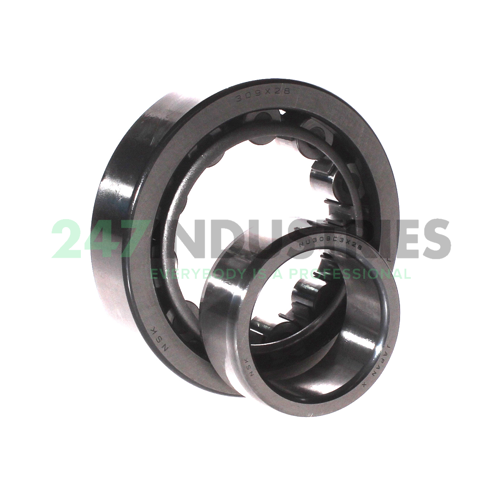

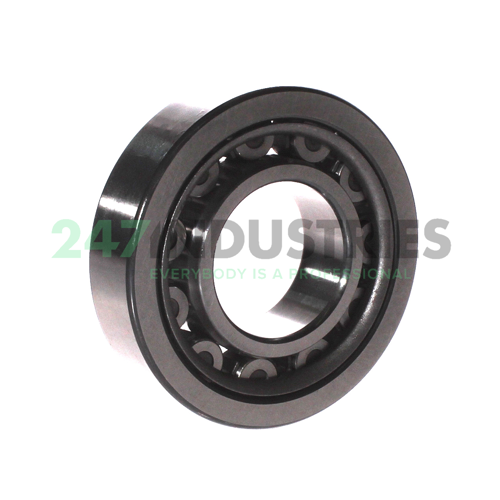

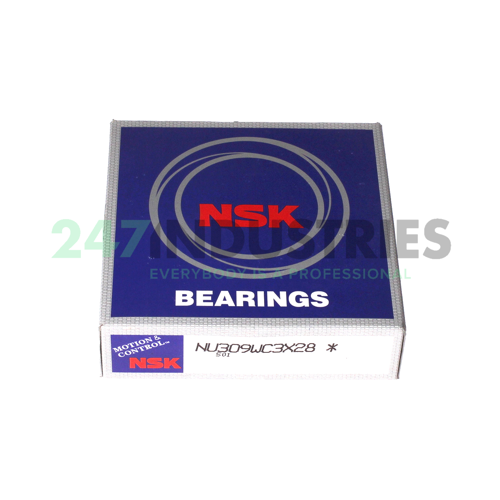

NU309W C3 X28 NSK

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 25
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.9843

Suffix description

1. W One Piece Pressed Steel Cage
2. C3 Internal Clearance Larger Than Normal
3. X28 Inner And Outer Ring Heat Stabilized To 200°C

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number NU309W C3 X28 NSK
4. Also known as NU309.C3
   NU309C3
   NU309ECJ/C3
   NU309W C3

5. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.895

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization S1 - Temperatures up to 200 °C
