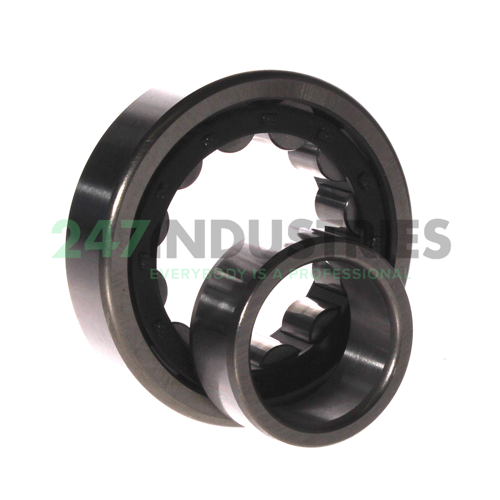

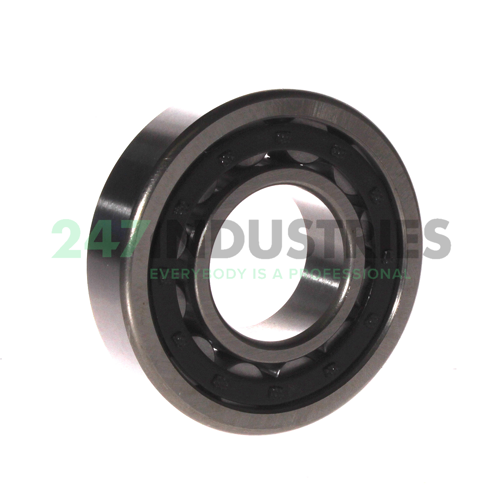

NU308E C3 FBJ

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055

Suffix description

1. E Increased Load Capacity
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 10 pcs
2. Brand FBJ
3. Item number NU308E C3 FBJ
4. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.66

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
