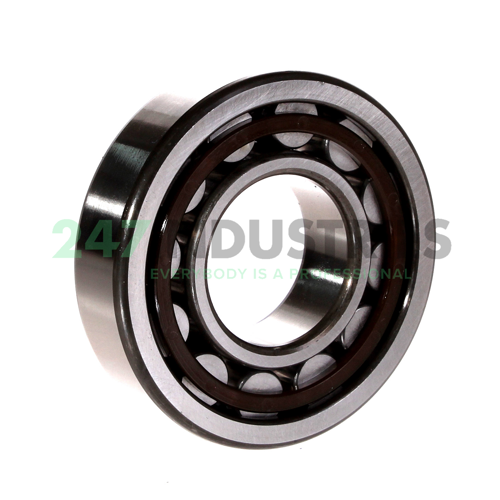

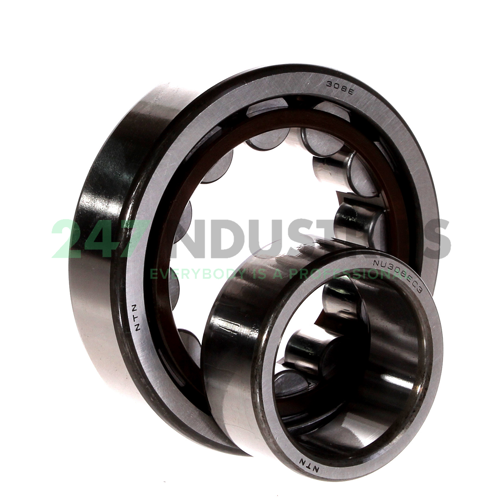

NU308E C3 DZ NTN

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055

Suffix description

1. E High Capacity Design
2. C3 Internal Clearance Larger Than Normal
3. DZ Single Row Cylindrical Roller Bearing With An Optimised Internal Design And With Modified Roller End/Flange Contact

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number NU308E C3 DZ NTN
4. Also known as NU308ECP/C3
   NU308-E-TVP2-C3
   NU308-E-XL-TVP2-C3

5. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.66

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
