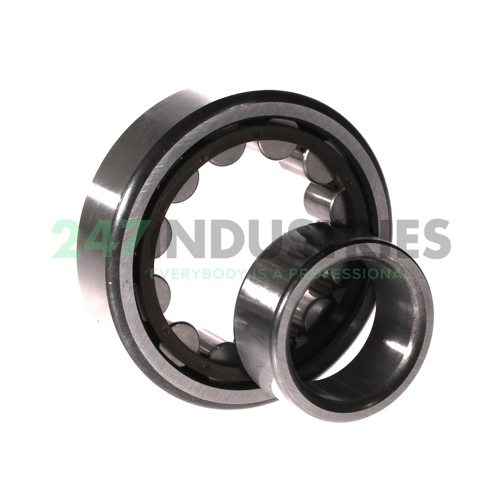

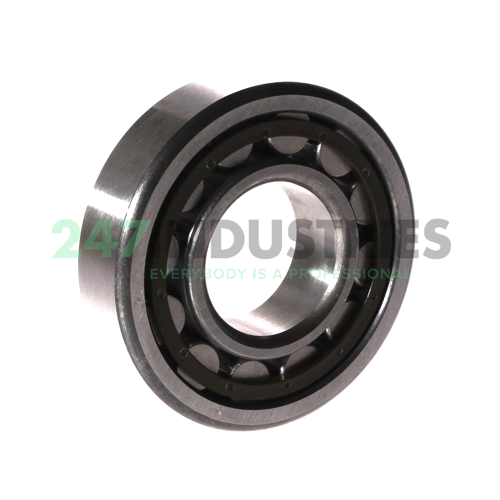

NU307ECP FIS

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 80
3. Width (B) MM 21
4. Inner (d) Inch 1.378
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.8268

Suffix description

1. EC Single Row Cylindrical Roller Bearing With An Optimized Internal Design And With Modified Roller End/Flange Contact
2. P Injection Moulded Cage Of Glass Fibre Reinforced Polyamide 6,6, Rolling Element Centered

Technical details

1. Availability 0 pcs
2. Brand FIS
3. Item number NU307ECP FIS
4. Also known as NU307ETNG
   NU307-E-TVP2
   NU307-E-XL-TVP2

5. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.486

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
