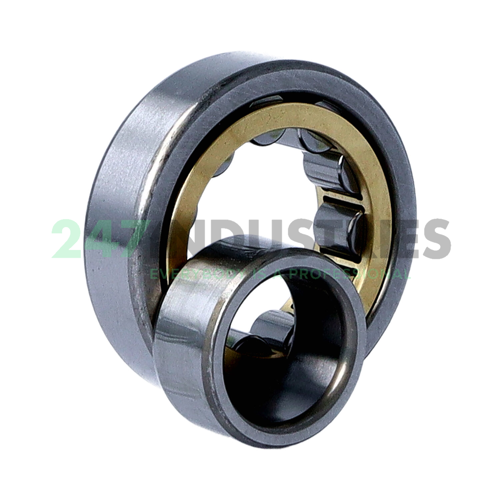

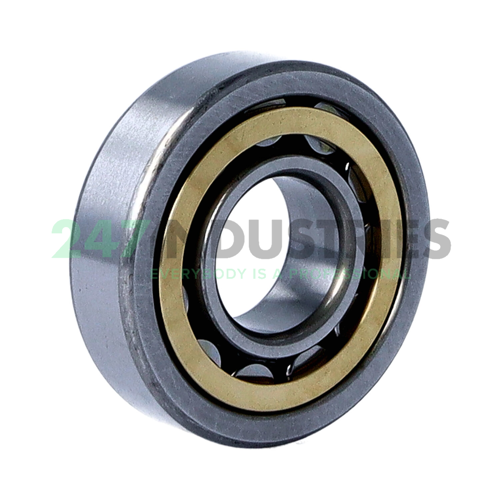

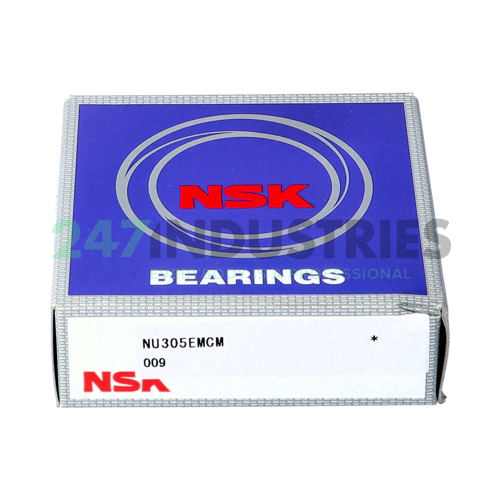

NU305EMCM NSK

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 62
3. Width (B) MM 17
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6693

Suffix description

1. E Increased Load Capacity
2. M Machined Brass Cage, Located On The Rolling Elements
3. CM Ball Bearing, Special Radial Internal Clearance For Electric Motors

Technical details

1. Availability 3 pcs
2. Brand NSK
3. Item number NU305EMCM NSK
4. Also known as NU305-E-M1
   NU305-E-XL-M1

5. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.267

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
