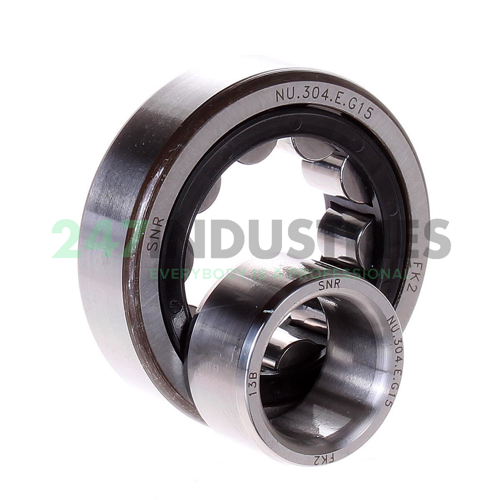

NU304E G15 J30 SNR

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 52
3. Width (B) MM 15
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906

Suffix description

1. E Increased Load Capacity
2. G15 Injection Moulded Cage Of Glass Fibre Reinforced Polyamide 6,6, Rolling Element Centred
3. J30 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number NU304E G15 J30 SNR
4. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.152

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
