NU2315-E-XL-K-TVP2 FAG

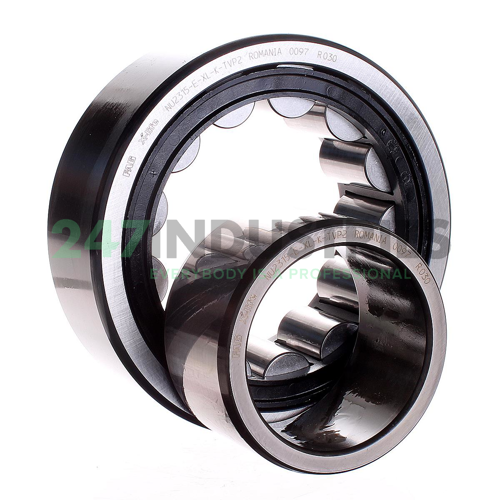

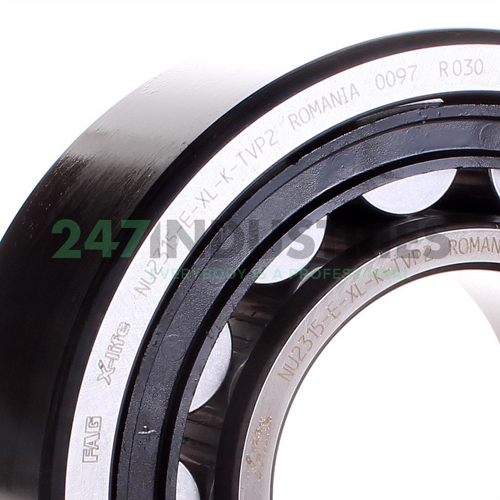

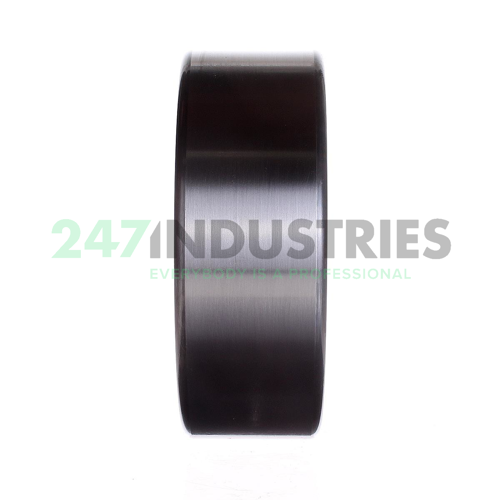

The NU2315-E-XL-K-TVP2 FAG bearing is a single row cylindrical roller bearing with a plastic molded cage, a 1:12 tapered bore (standard for most types) and no seal.

Stock
4 pcs in stock and ready for shipment
Brand FAG
Article number NU2315-E-XL-K-TVP2 FAG
Inside diameter 75,00mm
Outside diameter 160,00mm
Width 55,00mm
Product description

Category information NU2315-E-XL-K-TVP2 FAG

Single row cylindrical roller bearings with cage, like the NU2315-E-XL-K-TVP2 FAG, are units comprising solid inner and outer rings together with cylindrical roller and cage assemblies.

The outer rings have rigid ribs on both sides or no ribs, the inner rings have one or two rigid ribs or are designed without ribs. The cage prevents the cylindrical rollers from coming into contact with each other during rolling.

The cage type bearings are very rigid, can support high radial loads and, due to the cage, are suitable for higher speeds than the full complement designs.

The bearings are separable and are therefore easier to fit and dismantle. Both bearing rings can be given a tight fit by this process.

Applications of NU2315-E-XL-K-TVP2 FAG

  • Heavy industries, steel applications
  • Power transmission, gearboxes
  • Driven machines and construction machinery
  • Wind power and gearbox applications

X-LIFE: Longer rating and operating life of NU2315-E-XL-K-TVP2 FAG

The NU2315-E-XL-K-TVP2 FAG is according to the latest X-life quality from Schaeffler. They replace, and are interchangeable, with the NU2315EK.TVP2 FAG and NU2315-E-K-TVP2 FAG.

Bearings of X-life quality have, for example, lower roughness Ra and higher geometrical accuracy of the raceways than comparable designs that are not X-life. As a result, these bearings have higher load carrying capacity and longer life for the same dimensioning. In certain applications, this means that a smaller bearing arrangement can be designed.


Improved X-life product features
  • Optimized internal construction
  • Optimized surface geometry
  • Better and more even internal load distribution

Technical advantages X-life products
  • Up to 20 % higher dynamic load rating Cr
  • Up to 70 % longer rating life
  • Up to 50 % less friction

Why choose X-life quality?
  • Significantly longer rating and operating life at the same load
  • Higher performance with the same rating life
  • Downsizing possible, higher power density
  • Improved price/performance ratio
  • Interchangeable: Same dimensions as standard bearings

Product specifications NU2315-E-XL-K-TVP2 FAG

Bearings with the suffix E have a higher capacity roller set and are thus designed for very high load carrying capacity.

NU2315-E-XL-K-TVP2 FAG is a non-locating bearing

Cylindrical roller bearings NU are non-locating bearings and can support radial forces only. In series NU, the outer ring has two ribs, while the inner ring has no ribs.

Axial displacement: The outer and inner ring can be axially displaced relative to each other from the central position by the value “s”.

Bearings with L-section ring: Non-locating bearings NU can be combined with an L-section ring HJ to form a semi-locating bearing unit. They must not be installed with two L-section rings (due to the risk of jamming).

Sealing of NU2315-E-XL-K-TVP2 FAG

The bearings are supplied without seals.

Lubrication of NU2315-E-XL-K-TVP2 FAG

They can be lubricated from the end faces using grease or oil.

Operating temperature of NU2315-E-XL-K-TVP2 FAG

Bearings with a plastic cage (suffix TVP2) are suitable up to +120 °C; the operating life is heavily dependent on the lubricant used.

Cage of NU2315-E-XL-K-TVP2 FAG

Cylindrical roller bearings with the suffix TVP2 have a cage made from glass fibre reinforced polyamide PA66.

Check the chemical resistance of polyamide to synthetic greases and lubricants with EP additives.

Aged oil and additives in the oil can impair the operating life of plastic cages at high temperatures. The oil change intervals must be observed.

Suffix info NU2315-E-XL-K-TVP2 FAG

  • E :Increased capacity design
  • TVP2: Solid brass cage, two-piece, roller-guided
  • XL: Longer rating and operating life, more reliable and more energy-efficient than previous types.
Read more Show less

Similar to: NU2315-E-XL-K-TVP2 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 75,00
  2. Outer (D) MM 160,00
  3. Width (B) MM 55,00

Technical details

  1. Availability 4 pcs
  2. Brand FAG
  3. Item number NU2315-E-XL-K-TVP2 FAG
  4. Technical details (E-XL-K-TVP2) E=Increased Load Capacity. XL=X-Life. K=Tapered Bore, Taper 1:12. TVP2=(Segment Cage, Code P)=Solid Window Cage Made From Glass Fibre Reinforced Polyamide PA66. Roller Riding.
  5. Also known as 4012801397995
    NU2315-E-K-TVP2
  6. Category Cylindrical Roller Bearing Single Row
  7. Weight (kg) 4.93
  8. Manufacturer Part Number (MPN) NU2315-E-XL-K-TVP2
  9. Bore K - 1:12 Tapered Bore (Standard for Most Types)
  10. Seal No Seal
  11. Cage Type P - Plastic Molded Cage
  12. External Modification No Pairing
  13. Radial Internal Play Cn Normal Internal
  14. Precision Standard Precision
  15. Heat Stabilization No Heat Stabilization - Temperatures up to 120°C
