NU226E.M6.C4 NKE

All dimensions

1. Inner (d) MM 130,00
2. Outer (D) MM 230,00
3. Width (B) MM 40,00
4. Inner (d) Inch 5.1181
5. Outer (D) Inch 9.0551
6. Width (B) Inch 1.5748

Suffix description

1. E Increased Load Capacity

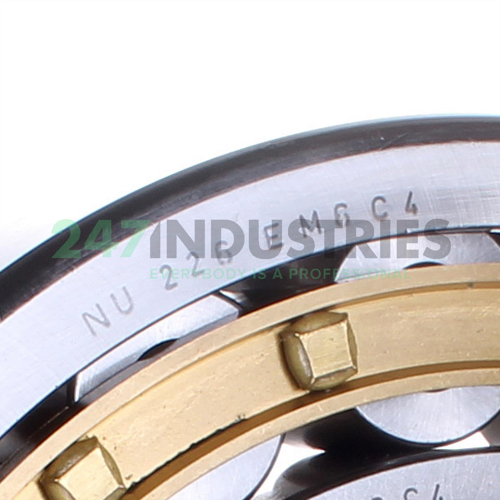

2. M6 Roller Guided Solid Brass Cage For Cylindrical Roller Bearings, Cage Body Designed With Trapezoid-Shaped Machined Rivets
3. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 1 pc
2. Brand NKE
3. Item number NU226E.M6.C4 NKE

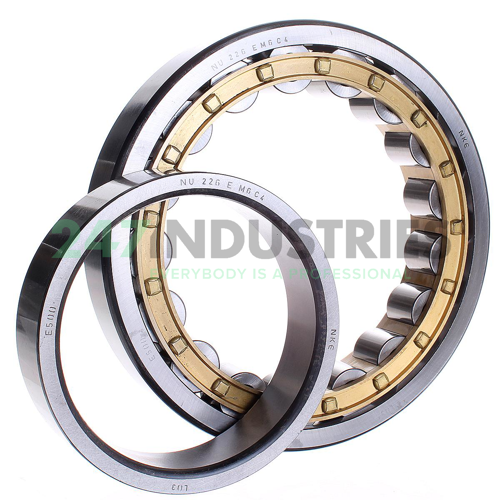

4. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 7.95

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
