NU222ECM/C3VL0241 SKF

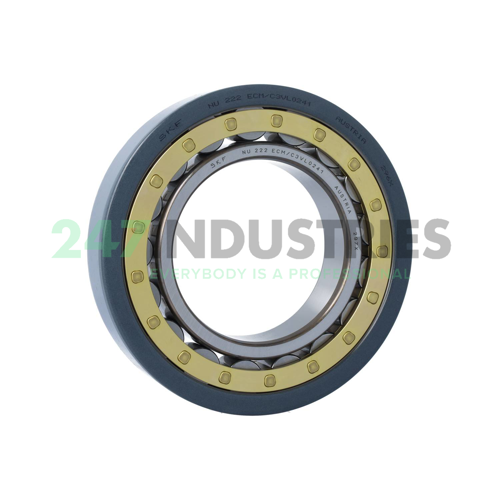

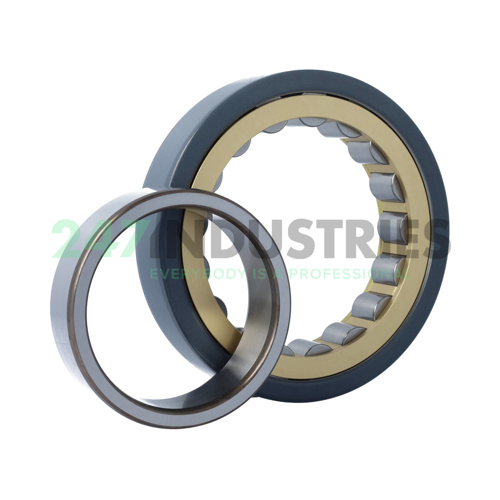

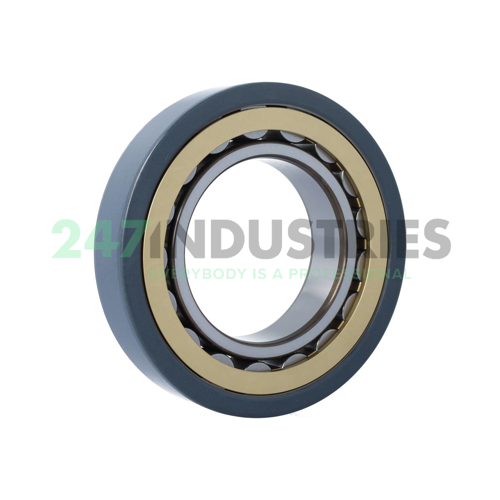

The NU222ECM/C3VL0241 SKF bearing is a single row cylindrical roller bearing with a brass cage, a cylindrical bore and no seal.

Stock
not in stock
Brand SKF
Article number NU222ECM/C3VL0241 SKF
Inside diameter 110mm
Outside diameter 200mm
Width 38mm
Product description
Cylindrical Roller Bearing Single Row
Read more Show less

Similar to: NU222ECM/C3VL0241 SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 110
  2. Outer (D) MM 200
  3. Width (B) MM 38

Technical details

  1. Availability 0 pcs
  2. Brand SKF
  3. Item number NU222ECM/C3VL0241 SKF
  4. Technical details (ECM/C3VL0241) EC=Optimized Internal Design Incorporating More And/Or Larger Rollers And With Modified Roller/End Flange Contact. M=Two-Piece Machined Brass Cage, Roller Centered. C3=Internal Clearance Larger Than Normal. VL0241=(Segment Precision, Code 10)=Electrical Resistance: Min. 50MΩ, Breakdown Voltage: Max. Operating Voltage 1.000v DC.
  5. Also known as 7316572209264
  6. Category Cylindrical Roller Bearing Single Row
  7. Weight (kg) 5.50
  8. Manufacturer Part Number (MPN) NU222ECM/C3VL0241
  9. Bore C - Cylindrical Bore
  10. Seal No Seal
  11. Cage Type M - Brass Cage
  12. External Modification No Pairing
  13. Radial Internal Play C3 Internal Play (Higher than Cn)
  14. Precision 10 - Breakdown Voltage 1000v
  15. Heat Stabilization No Heat Stabilization - Temperatures up to 120°C
