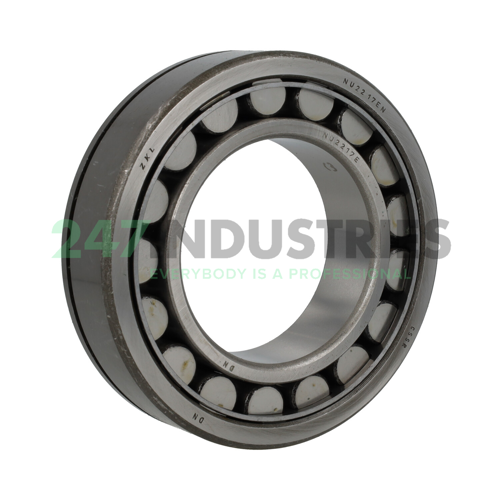

NU2217EN C3 ZKL

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 150
3. Width (B) MM 36
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.4173

Suffix description

1. E Single Row Cylindrical Roller Bearing With Higher Load Rating
2. N Snap Ring Groove In The Outer Ring
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 4 pcs
2. Brand ZKL
3. Item number NU2217EN C3 ZKL
4. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 2.48

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification N - Snap Ring Groove in Outer Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
