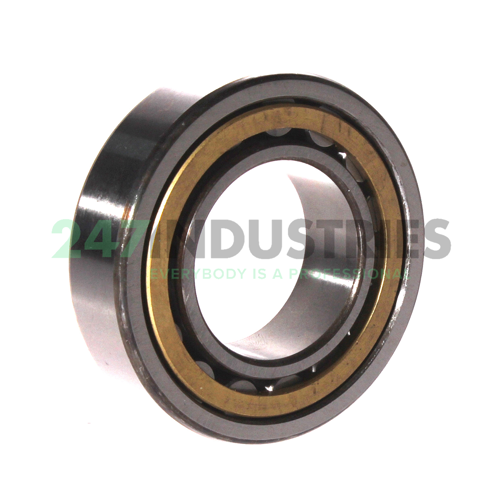

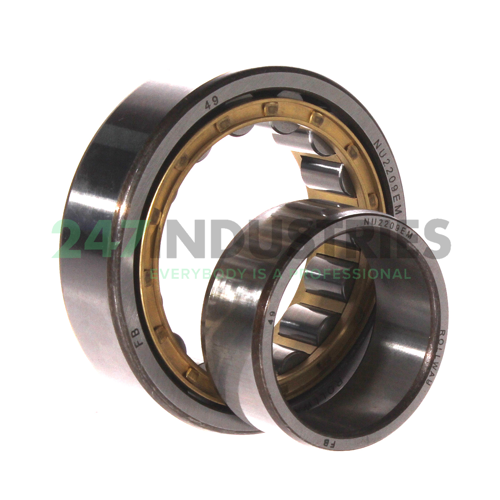

NU2209EM Rollway

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 23
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.9055

Suffix description

1. E Increased Load Capacity
2. M Machined Brass Cage, Located On The Rolling Elements

Technical details

1. Availability 3 pcs
2. Brand Rollway
3. Item number NU2209EM Rollway
4. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.53

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
