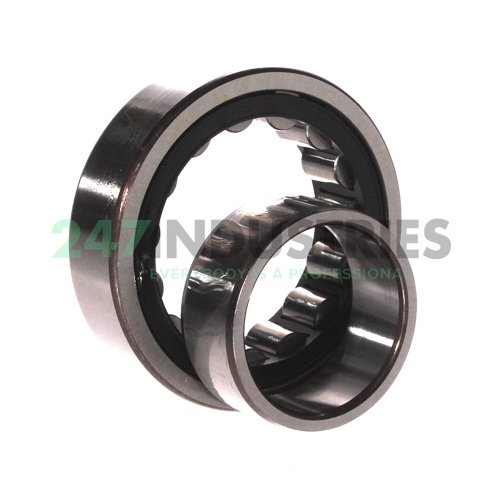

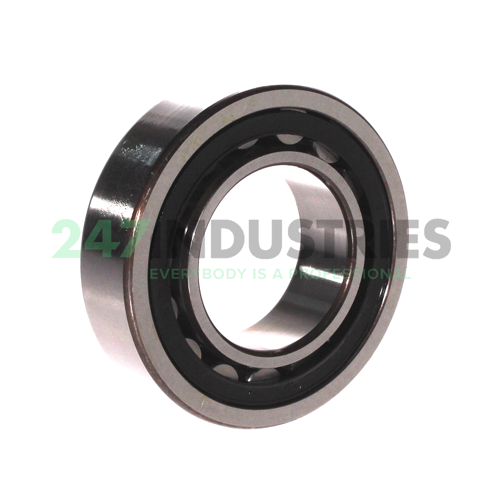

NU2209E G15 SNR

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 23
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.9055

Suffix description

1. E Increased Load Capacity
2. G15 Injection Moulded Cage Of Glass Fibre Reinforced Polyamide 6,6, Rolling Element Centred

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number NU2209E G15 SNR
4. Also known as NJ2209ETNG
   NU2209ECP
   NU2209-E-TVP2
   NU2209-E-XL-TVP2

5. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.524

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
