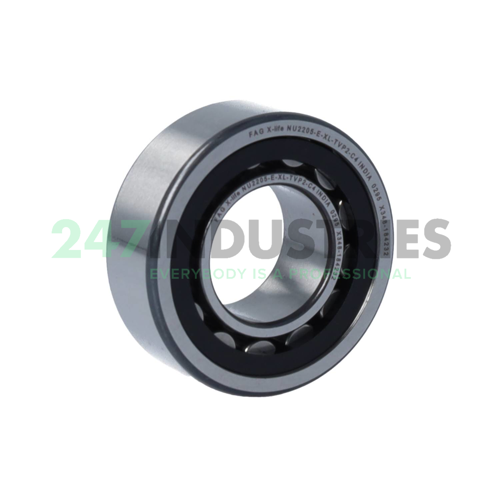

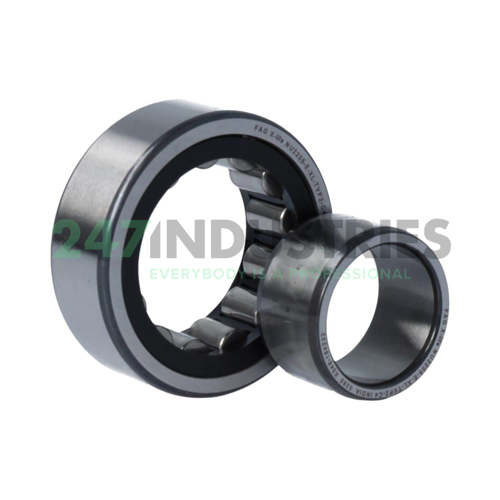

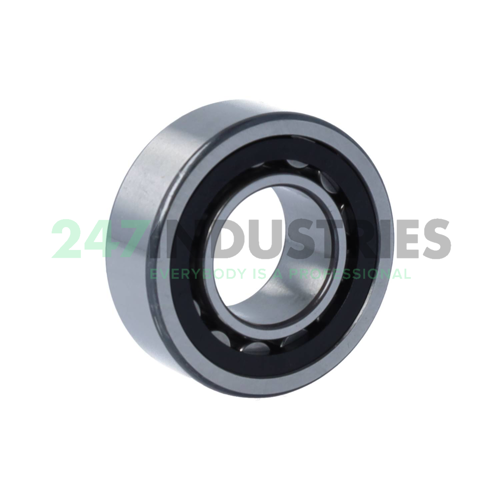

NU2205-E-XL-TVP2-C4 FAG

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 52
3. Width (B) MM 18
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.7087
7. Width (b) mm 18

Suffix description

1. E Increased Load Capacity
2. XL X-Life
3. TVP2 Solid Window Cage Made From Glass Fibre Reinforced Polyamide PA66. Roller Riding
4. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 6 pcs
2. Brand FAG
3. Item number NU2205-E-XL-TVP2-C4 FAG
4. Also known as 0167381280040
   NU2205-E-TVP2-C4

5. EAN 4026677220882
6. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.162

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 34500
2. Limiting speed (n G) 19800
3. Reference speed (n ϑr) 9600
