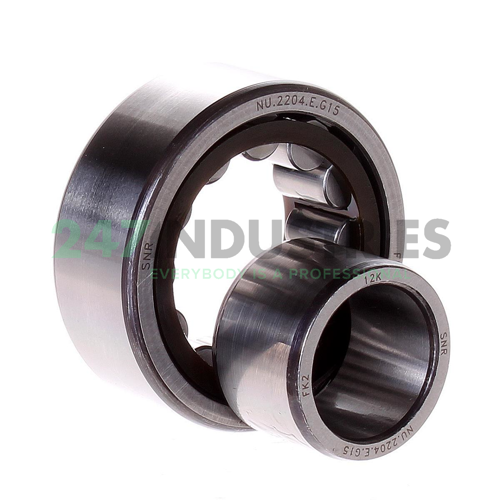

NU2204E G15 SNR

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 18
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.7087

Suffix description

1. E Increased Load Capacity
2. G15 Injection Moulded Cage Of Glass Fibre Reinforced Polyamide 6,6, Rolling Element Centred

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number NU2204E G15 SNR
4. Also known as NU2204ECP
   NU2204-E-XL-TVP2

5. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.143

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
