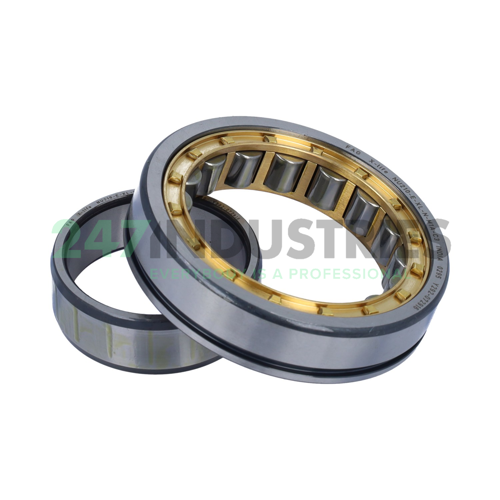

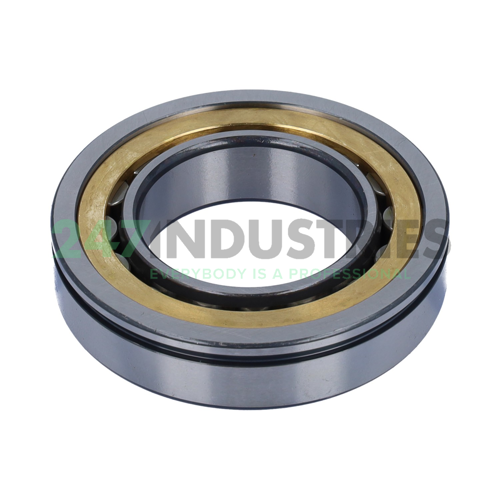

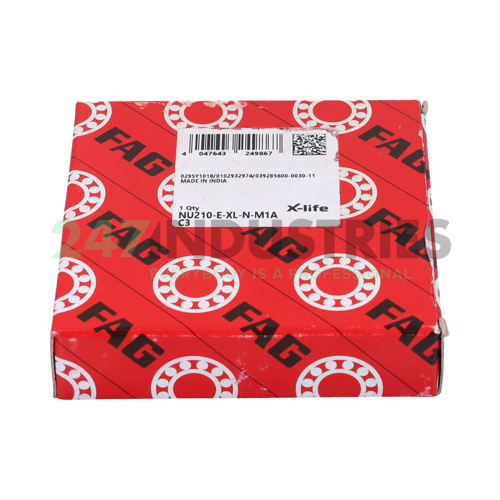

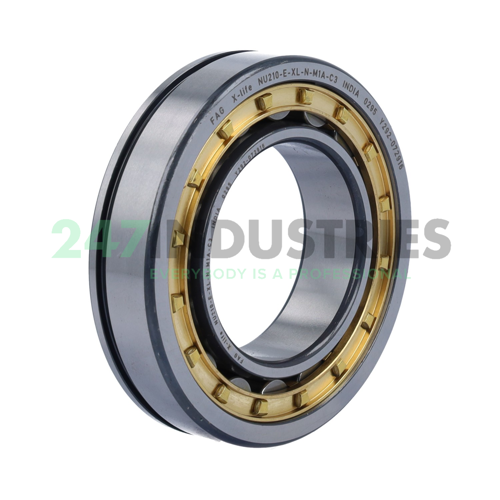

NU210-E-XL-N-M1A-C3 FAG

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 20

Suffix description

1. E Increased Load Capacity
2. XL X-Life
3. N Snap Ring Groove In The Outer Ring
4. M1A Solid Brass Cage, Two-Piece, Rib-Guided On Outer Ring
5. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 10 pcs
2. Brand FAG
3. Item number NU210-E-XL-N-M1A-C3 FAG
4. Also known as 0392856000030

5. EAN 4047643249867
6. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.532

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification N - Snap Ring Groove in Outer Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
