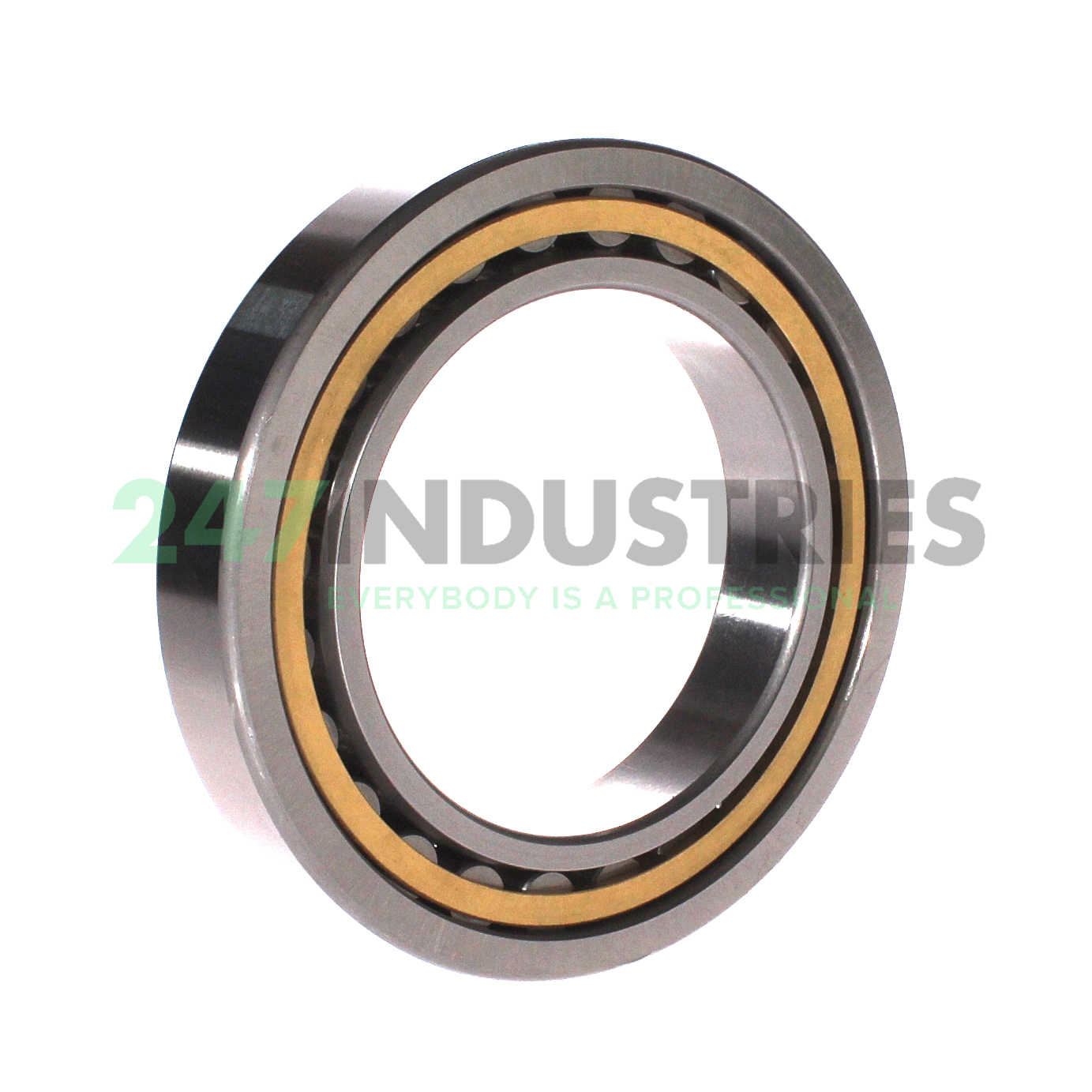

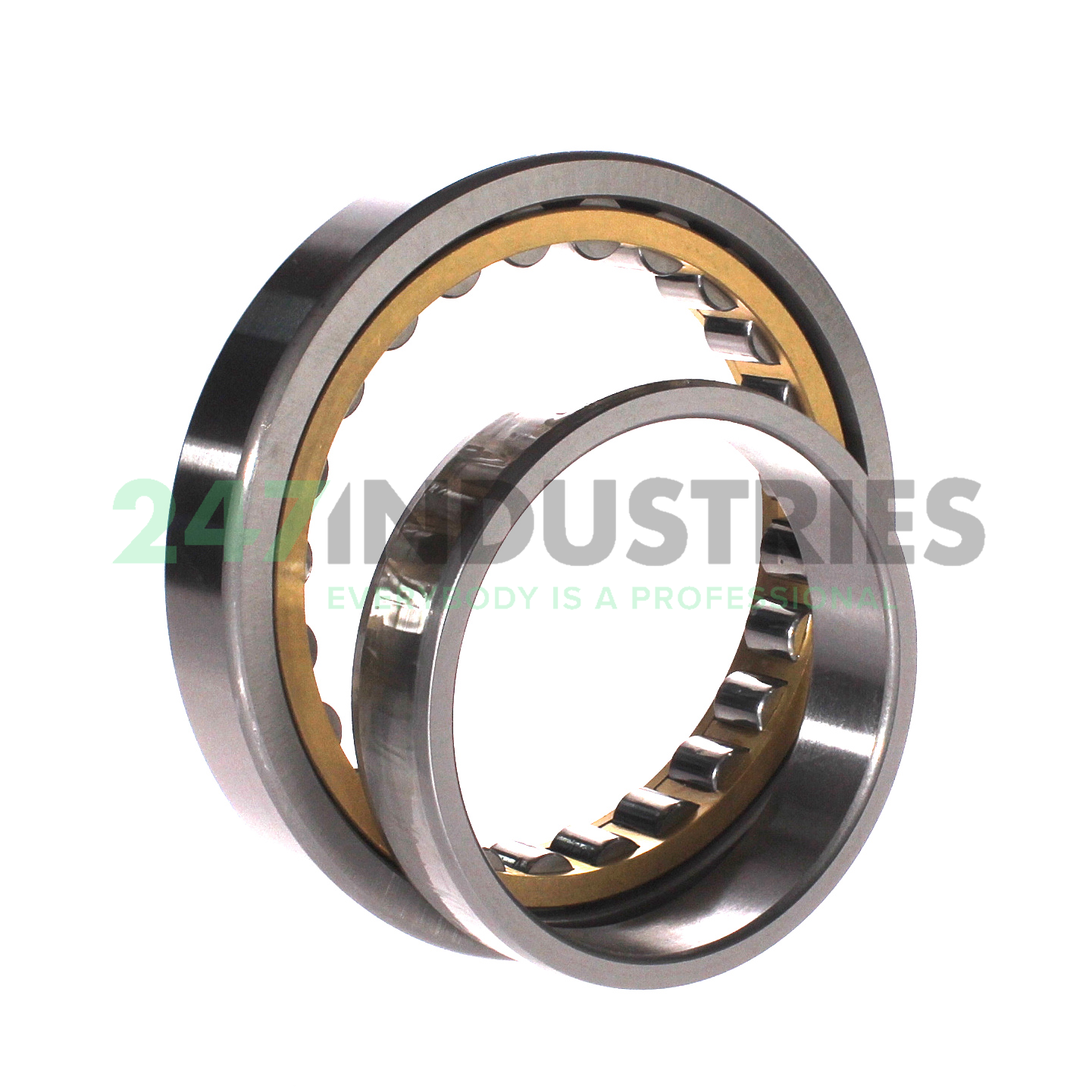

NU1018M C3 Rollway

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 140
3. Width (B) MM 24
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 5.5118
6. Width (B) Inch 0.9449

Suffix description

1. M Machined Brass Cage, Located On The Rolling Elements
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 4 pcs
2. Brand Rollway
3. Item number NU1018M C3 Rollway
4. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.36

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
