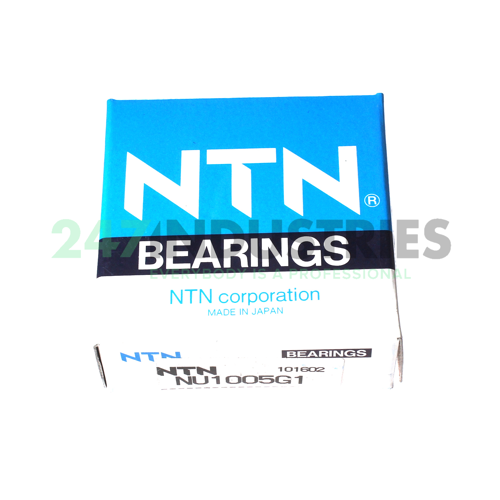

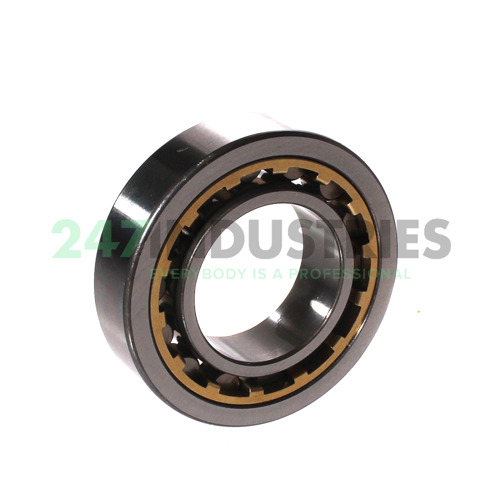

NU1005G1 NTN

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 47
3. Width (B) MM 12
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.4724

Suffix description

1. G1 Machined Brass Cage For Cylindrical Roller Bearings, Rivetless

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number NU1005G1 NTN
4. Also known as NU1005-M1

5. EAN 4547359136883
6. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.084

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
