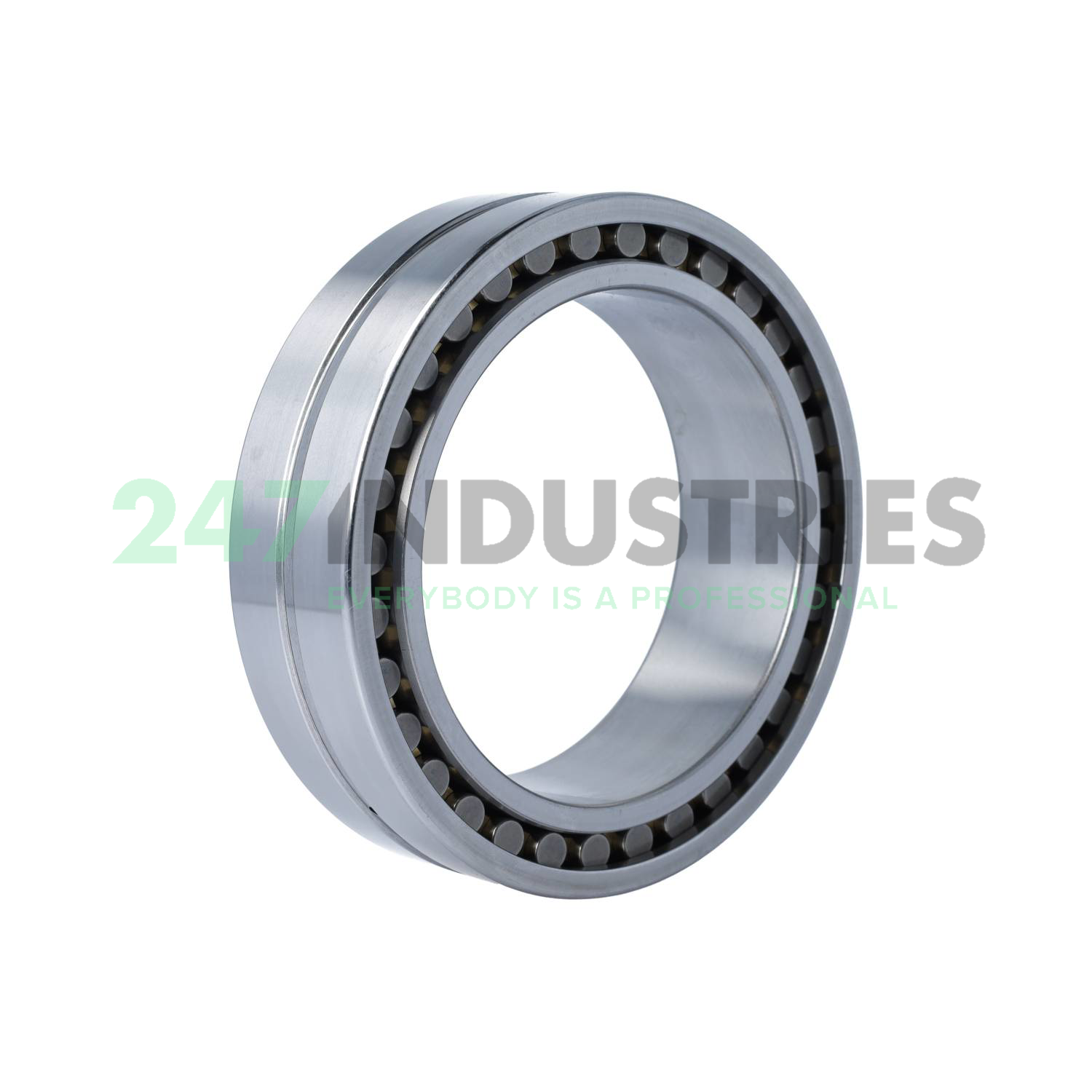

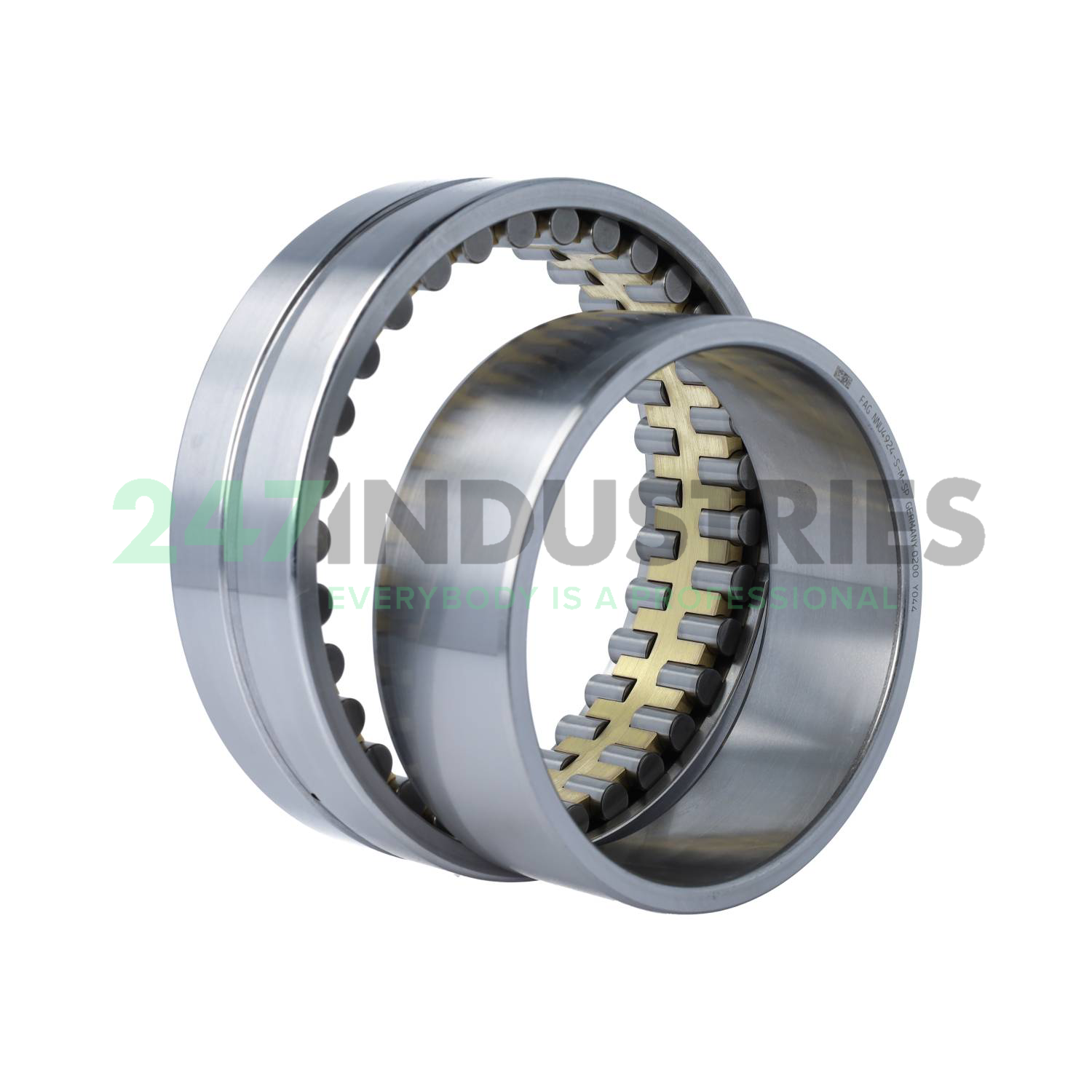

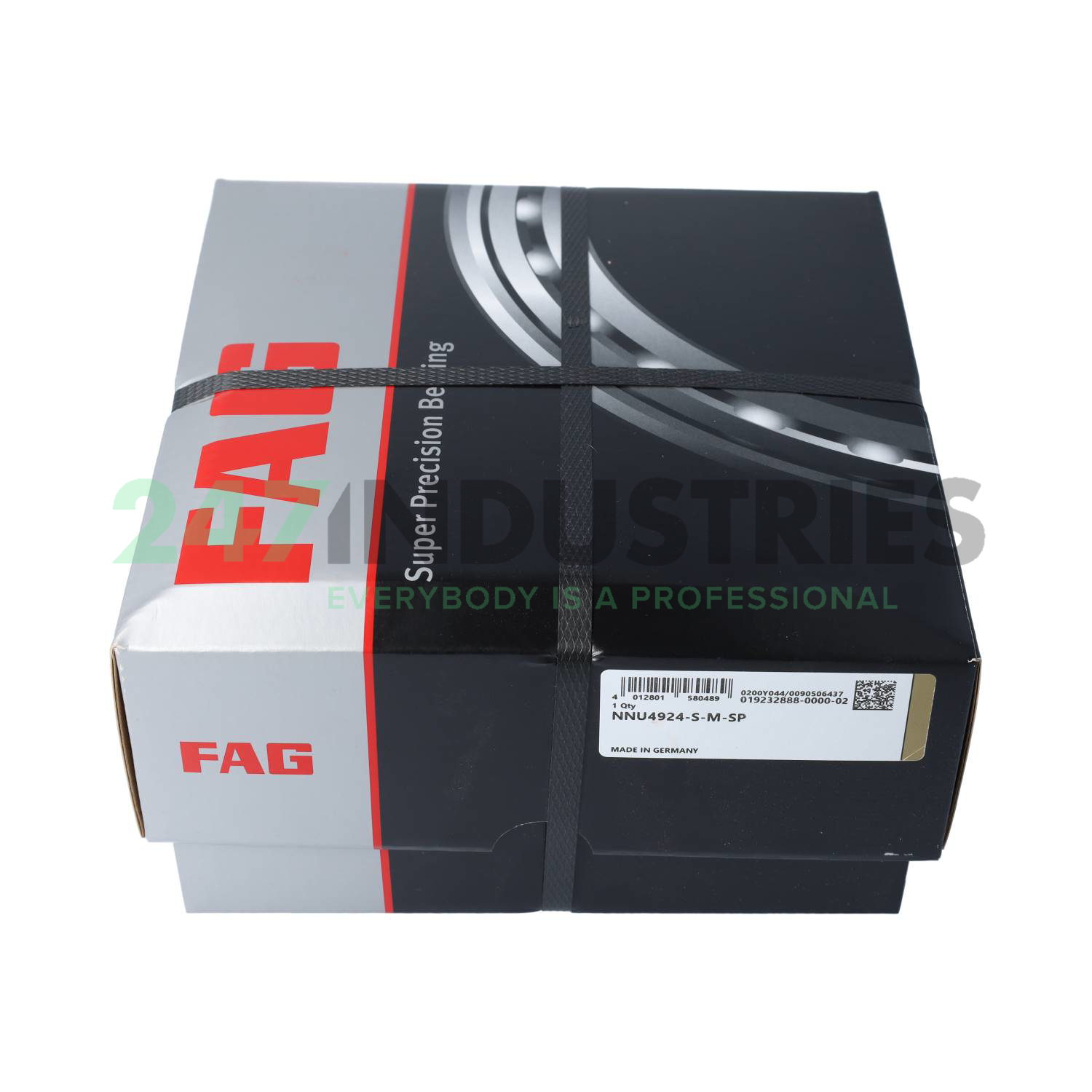

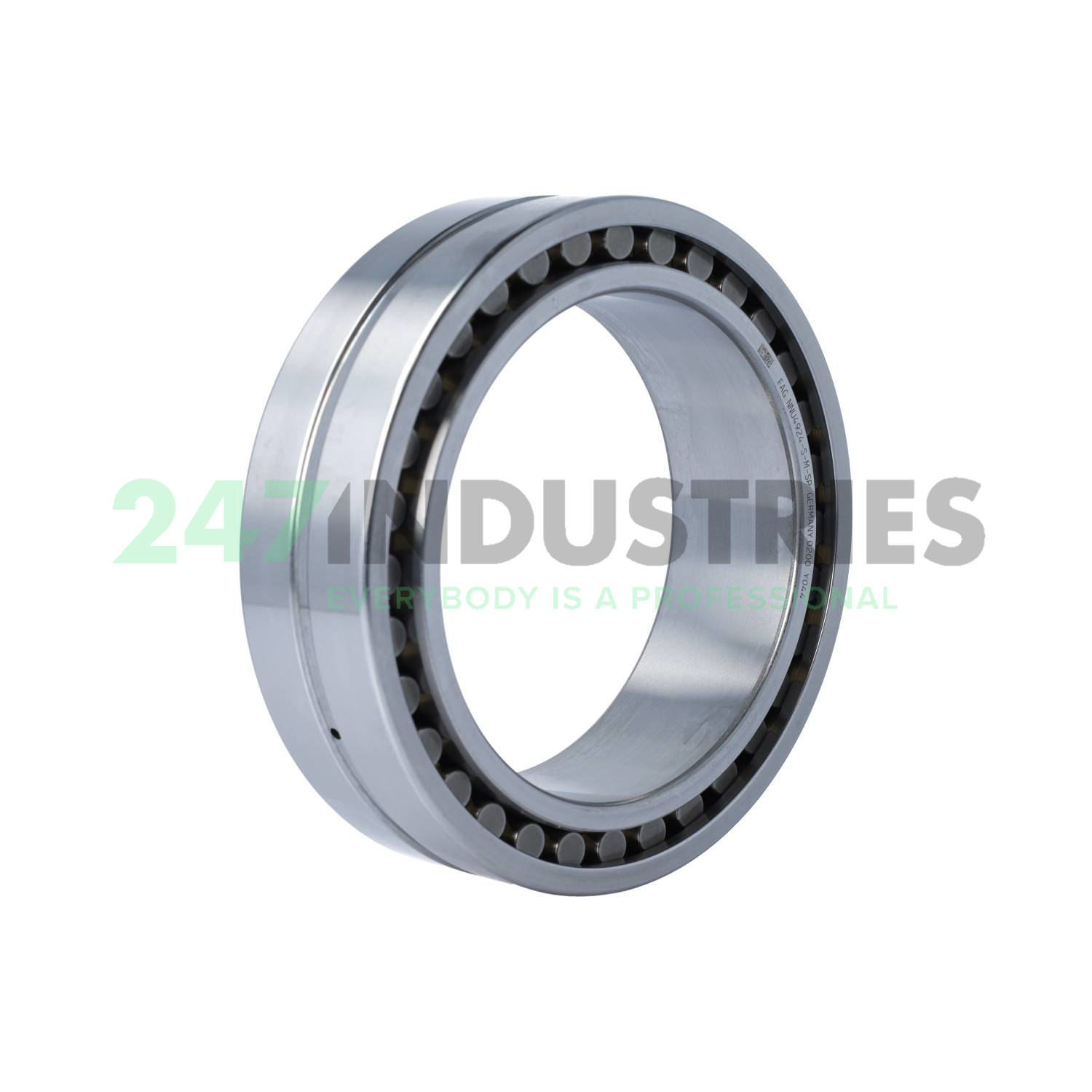

NNU4924-S-M-SP FAG

All dimensions

1. Inner (d) MM 120,00
2. Outer (D) MM 165,00
3. Width (B) MM 45,00
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 6.4961
6. Width (B) Inch 1.7717
7. Width (b) mm 45,00

Suffix description

1. S Lubrication Groove And Three Holes In Bearing Outer Ring
2. M Solid Brass Cage, Roller Guided
3. SP Special Precision Class For Machine Tool Bearings: Dimensional Accuracy Approximately To P5, Running Accuracy Approximately To P4

Technical details

1. Availability 7 pcs
2. Brand FAG
3. Item number NNU4924-S-M-SP FAG
4. Also known as 0192328880000

5. EAN 4012801580489
6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 2.86

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision SP - Precision Higher than P4S
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 340000
2. Radial Dynamic Load Rating Cr (N) 175000
3. Basic static load rating, radial (C 0r) "340000.0000"
4. Fatigue load limit, radial (C ur) "41000.0000"
5. Limiting speed for grease lubrication (n G Grease) "4750.0000"
6. Limiting speed for oil lubrication (n G Oil) "5600.0000"
7. ECLASS number 23-05-09-01
8. ECLASS2 number 23-05-09-01
